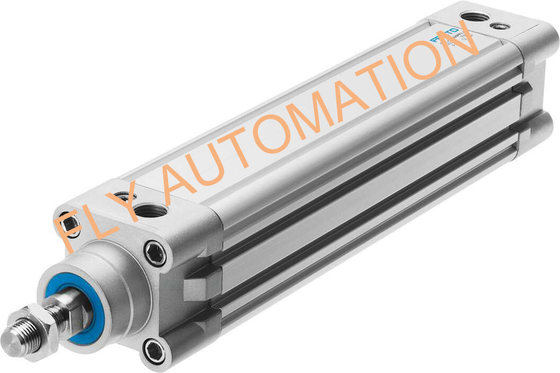

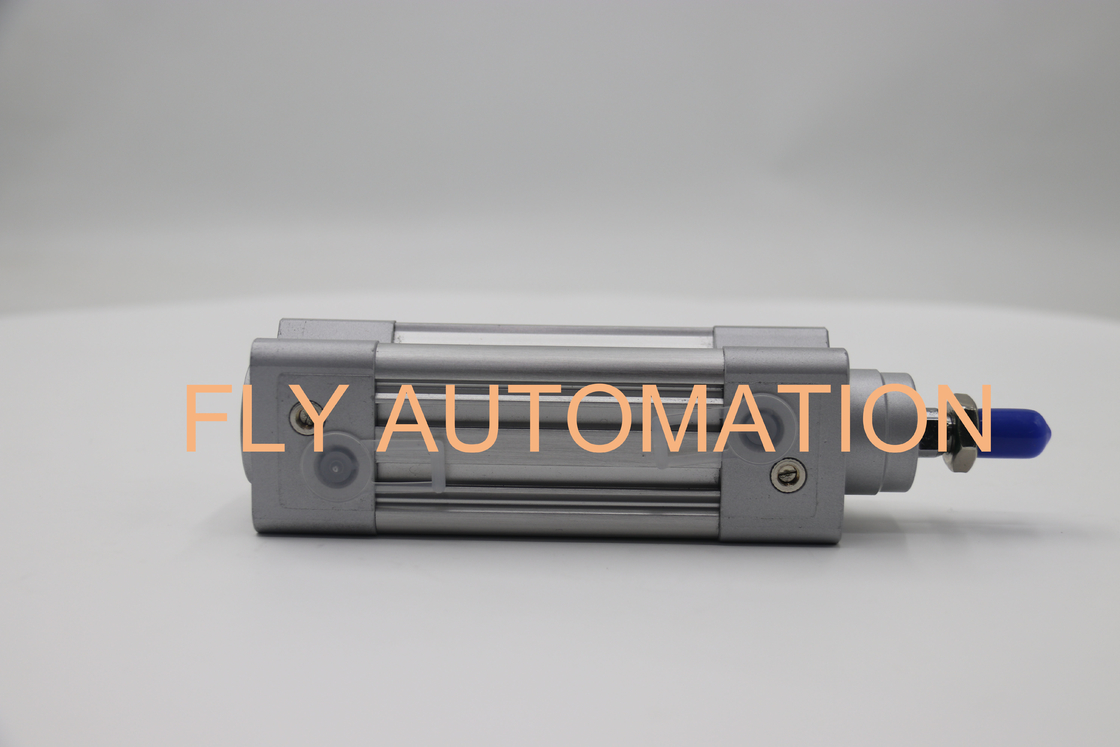

DNC-50-50-PPV-A 163371 Pneumatic Air Cylinders ISO GTIN4052568134013

DNC-50-50-PPV-A 163371 Pneumatic Air Cylinders ISO GTIN4052568134013

  • DNC-50-50-PPV-A 163371 Pneumatic Air Cylinders ISO GTIN4052568134013
  • DNC-50-50-PPV-A 163371 Pneumatic Air Cylinders ISO GTIN4052568134013
DNC-50-50-PPV-A 163371 Pneumatic Air Cylinders ISO GTIN4052568134013
Product Details:
Place of Origin: China
Brand Name: FESTO
Model Number: DNC-50-50-PPV-A
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: EXW USD40-50
Packaging Details: plastic bag, carton，OPP bag
Delivery Time: 7-10working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 50 pcs per month
Contact Now
Detailed Product Description
Part No: 163371 Brand: FESTO
Type: DNC-50-50-PPV-A GTIN: 4052568134013
Symbol: 00991235 Mode Of Operation: Double-acting
Highlight:

DNC-50-50-PPV-A Pneumatic Air Cylinders

,

163371 Pneumatic Air Cylinders

,

Piston Rod Compact Air Cylinder

FESTO ISO cylinder DNC-50-50-PPV-A 163371 GTIN4052568134013 Pneumatic Air Cylinders

About product

1.For proximity sensor.

2.Adjustable buffer at both ends.

3.Lubricated operation possible (in which case lubricated operation will always be required).



Technical Data

Stroke 50mm
Piston diameter 50 mm
Piston rod thread M16x1.25
Cushioning Pneumatic cushioning, adjustable at both ends
Mounting position optional
Conforms to standard ISO 15552
Piston-rod end Male thread
Design Piston Piston rod Profile barrel
Position detection Via proximity switch
Symbol
00991235
Variants Piston rod at one end
Mode of operation Double-acting
Corrosion resistance class CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Ambient temperature -20°C-80°C
Cushioning length 22 mm
Basic weight for 0 mm stroke 1260 g
Additional weight per 10 mm stroke 64 g
Type of mounting Via female thread With accessories
Pneumatic connection G1/4
Note on materials RoHS-compliant
Material cover Die-cast aluminium Coated
Material seals TPE-U(PU)
Material piston rod High-alloy steel
Material cylinder barrel Wrought aluminium alloy Smooth anodised



Other size as below

Type Order no Weight(g) Price
DNC-50-25-PPV-A 163 369 1420 USD40-50
DNC-50-40-PPV-A 163 370 1516 USD40-50
DNC-50-50-PPV-A 163 371 1580 USD40-50
DNC-50-80-PPV-A 163 372 1772 USD40-50
DNC-50-100-PPV-A 163 373 1900 USD40-50
DNC-50-125-PPV-A 163 374 2060 USD40-50
DNC-50-160-PPV-A 163 375 2284 USD40-50
DNC-50-200-PPV-A 163 376 2540 USD40-50
DNC-50-250-PPV-A 163 377 2860 USD40-50
DNC-50-320-PPV-A 163 378 3308 USD40-50
DNC-50-400-PPV-A 163 379 3820 USD40-50
DNC-50-500-PPV-A 163 380 4460 USD40-50

Competitive Advantage
Our product features: Our Services Guarantee:
1) Competitive price 1) Prompt respond (Reply with 24 hours)
2) Good quality 2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging, 3) Registration support.
4) Produce according to Customers’ instruction 4) Photos/videos are available during production.
5) None delay shipment
5) Loading inspection, and send loading photos before shipment.




There are so many kinds. Hurry to call me!
