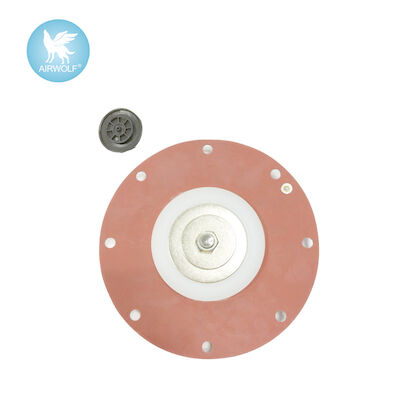

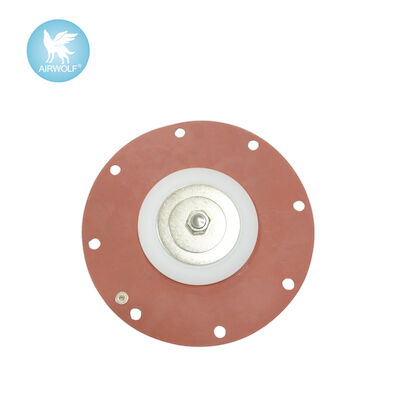

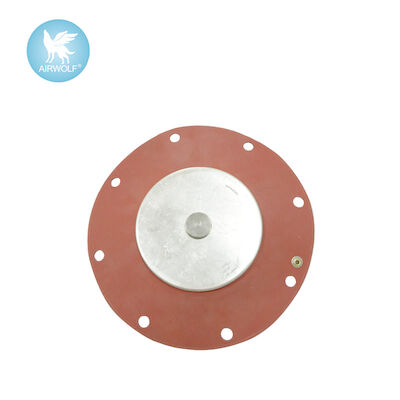

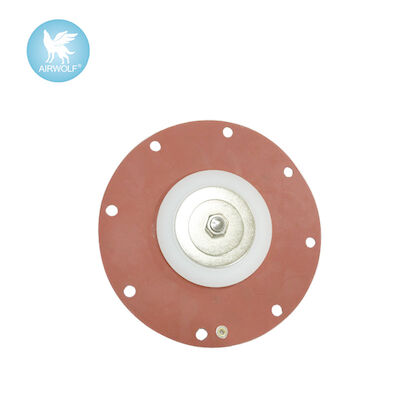

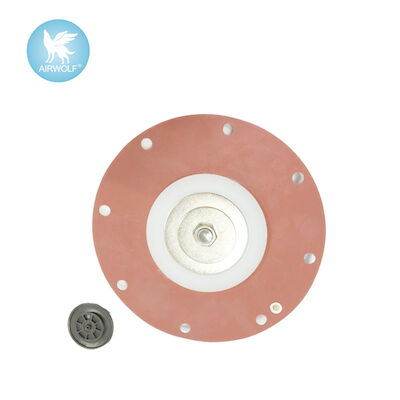

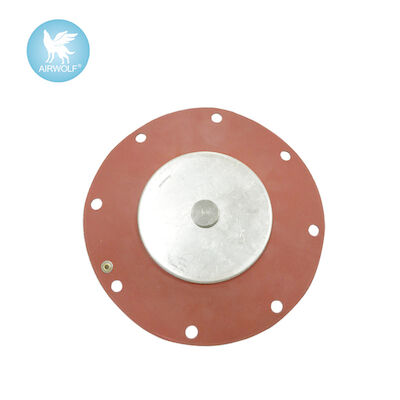

MD03-60 MD04-60 valve diaphragm rubber 2-1/2" TH5460-B TH4460-B
Ordering Code: MD03-60 MD04-60 Repair Kits
Description:
1. The diaphragm repair kits is for FLY/AIRWOLF pulse jet valve TH5460-B TH4460-B
2. Material: NBR/fluororubber
3. This repair kit has large air - outlet , so the air can get throgh very smoothly.
4. We use high quality material , the collection equipment efficiency can be improved , the energy loss also can be reduced.
5. FLY/AIRWOLF Diphragm MD01-60 MD02-60 MD03-60 repair kit has unique geometric diaphragm design , high speed from multiple diaphragm to reach the highest peak in an instant.
6. We use high quality material , the collection equipment efficiency can be improved , the energy loss also can be reduced.
7. Its lifespan is about 1 million cycles.
1 Aluminum die-casted valves are high flow diaphragm operated valves specially designe for air pulse
type dust collectors.
2 High flow, long life and its fast opening combine to offer a supperior design for the dust collector system
available for remote pilot valve operation with the solenoid enclosure or the integral solenoid pilot opera-
tion.
3 For the connection, We offer the screw, coupling and flange type valve. Nitrile diaphragms are offered for
the high temperature applications.
1 . The design with integral compression fittings will facilitate installation because there is no need for threaded piping
2 . The high quality diaphragms are reinforced and wear resistant to guarantee a long operating life, even under harsh conditions
3 . Integral pilot operated valves satisfy all relevant EC directives
4 . The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation.
5 . The high flow, angle type bodies in combination with the special main diaphragm assemblies give the unique operating features required for dust collector service applications
| Operation |
Normally Closed |
| Pipe Size |
3" |
| Cv Flow Factor |
170 |
| Valve body |
Die-Cast Aluminum |
| Diaphragm seat |
Elastomer |
| Media |
Air or Inert Gas |
| Fluid Temperature |
110°C Max |
| Ambient Temperature |
100°C Max |
| Seat Leakage |
Bubble Tight |
| Mounting |
Manifold |
| Design Pressure |
10.5 kg f/cm² |
| Max.Operating Pressure |
7.5 kg f/cm² |
| Max.Operating Pressure |
Epoxy Molded
Classes ”E”
Din Socket |
| Approx.Weight |
3712g |
Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.
Competitive Advantage
| Our product features |
Our Services Guarantee: |
| 1) Competitive price |
1) Prompt respond (Reply with 24 hours) |
| 2) Good quality |
2) Free Samples (Customer pay for the delivery cost) |
| 3) Professional Packaging |
3) Registration support. |
| 4) Produce according to Customers’ instruction |
4) Photos/videos are available during production. |
| 5) None delay shipment |
5) Loading inspection, and send loading photos before shipment. |
Warranty
All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
