Die Cast Aluminium Pneumatic Solenoid Valves 30485 GTIN4052568113674

Product Details:

Place of Origin:	China
Brand Name:	FESTO
Model Number:	MFH-5/3B-1/8-B

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	EXW USD120-150
Packaging Details:	Plastic bag, Carton
Delivery Time:	7-10 working days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	20 pcs per week

Contact Now

Detailed Product Description

Brand:	FESTO	Model:	MFH-5/3B-1/8-B
Order No:	30485	Pneumatic Working Port:	G1/8
Product Weight:	400g	Material Housing:	Die-cast Aluminium
Highlight:	Die Cast Aluminium Pneumatic Solenoid Valves , G1/8 Electric Air Valve , 30485 Air Operated Solenoid Valve

FESTO Solenoid valve MFH-5/3B-1/8-B 30485 GTIN4052568113674 Pneumatic Solenoid Valves

Name: Die Cast Aluminium Pneumatic Solenoid Valves 30485 GTIN4052568113674
Brand: FLY AUTOMATION
SKU: MFH-5/3B-1/8-B
Price: 135.00 USD
Availability: InStock

About product

1.Pneumatic connections G1/8.

2.Diverse and flexible, side and front mounting.

3.electrical actuation.

4.Versatile electrical connection technology with F solenoid coil with low power consumption, can also be used with valve terminals.

5.Functional and timeless design, enclosed front housing.

Technical Data

Valve function	5/3-way, pressurised
Type of actuation	Electric
Construction width	26 mm
Standard nominal flow rate	1000 l/min
pneumatic working port	G1/8
Design	Piston gate valve
Type of reset	Mechanical spring
Nominal size	8 mm
Sealing principle	Soft
Mounting position	optional
Manual override	Non-detenting
Type of piloting	Pilot actuated
Pilot air supply	Internal
Flow direction	Non-reversible

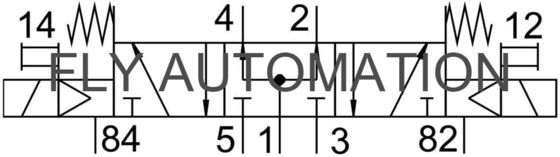

Symbol00991034	00991034
lap	Positive overlap
Max. switching frequency	3 Hz
Switching time off	21 ms
Switching time on	23 ms
Switching time reversal	16 ms
Corrosion resistance class CRC	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Storage temperature	-40°C-60°C
Media temperature	-10°C-60°C
Ambient temperature	-5°C-40°C
Product weight	400 g
Electrical connection	Via F coil, to be ordered separately
Type of mounting	On PR rail With through-hole Either:
Pilot exhaust port 82	M5
Pilot exhaust port 84	M5
Pneumatic connection, port 1	G1/8
Pneumatic connection, port 2	G1/8
Pneumatic connection, port 3	G1/8
Pneumatic connection, port 4	G1/8
Pneumatic connection, port 5	G1/8
Note on materials	RoHS-compliant
Material seals	NBR
Material housing	Die-cast aluminium

Another Size as below,

Type	Order no	Price
MFH-5/3B-1/8-B	30485	USD120-150
MFH-5/3B-1/4-B	19788	USD120-150
MFH-5/3B-3/8-B	19709	USD120-150
MFH-5/3B-1/8-S-B	30995	USD120-150
MFH-5/3B-1/4-S-B	31003	USD120-150
MFH-5/3B-3/8-S-B	31319	USD120-150

Attention

1.Before you endorse the parcel, please do open the package, and check out whether the items are damaged during the shipping process.
If so, please do refuse to sign for the parcel, the courier will send back the package to our company. Otherwise we are not responsible for this...
2.Any order is welcome. we will give discounts and combined shipping costs for you if you order more or mix order. If you have any questions.
please feel free to contact us.

There are so many products, welcome to enquire!
