| Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
 |
| Place of Origin: | China |
| Brand Name: | FESTO |
| Model Number: | DGC-12-600 - G-P-A |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD300-400 |
| Packaging Details: | Plastic bag, Carton |
| Delivery Time: | 7-10working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 20 pcs per month |
| Type: | DGC-12-600 - G-P-A | Part No: | 530907 |
|---|---|---|---|
| Brand: | FESTO | Piston Diameter: | 12 Mm |
| Mounting Position: | Optional | Material Seals: | POM TPE-U(PU) |
| High Light: | Linear Drive Double Acting Pneumatic Cylinder,530907 Pneumatic Air Cylinders,12mm Piston Pneumatic Air Cylinders |
||
About product
Basic design, plain or ball bearing guide, guide axis without actuator
All settings accessible from one side
Available with variable end stops and intermediate position module
Compact – installation length relative to stroke
Loads and devices can be directly mounted on the slide
Long strokes with no restrictions
Virtually no leakage
Technical Data
| Piston diameter | 12 mm |
| Mounting position | optional |
| Guide | Basic guide Recirculating ball bearing guide |
| Position detection | Via proximity switch |
| Operating pressure | 0.25 MPa ... 0.8 MPa |
| Operating pressure | 2.5 bar ... 8 bar |
| Mode of operation | Double-acting |
| Corrosion resistance class CRC | 1 - Low corrosion stress 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Type of mounting | With accessories |
| Note on materials | RoHS-compliant |
| Material cover | Wrought aluminium alloy |
| Material seals | POM TPE-U(PU) |

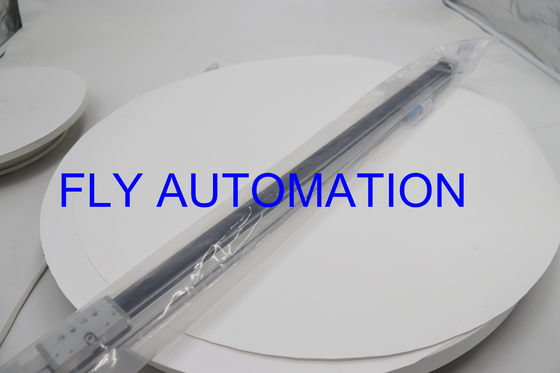

Package picture
A wide range of products with excellent prices. Please hurry to me!
