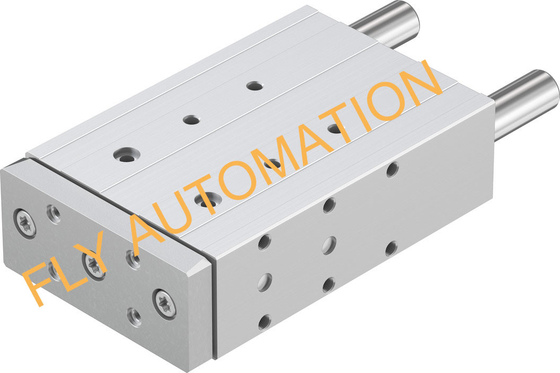

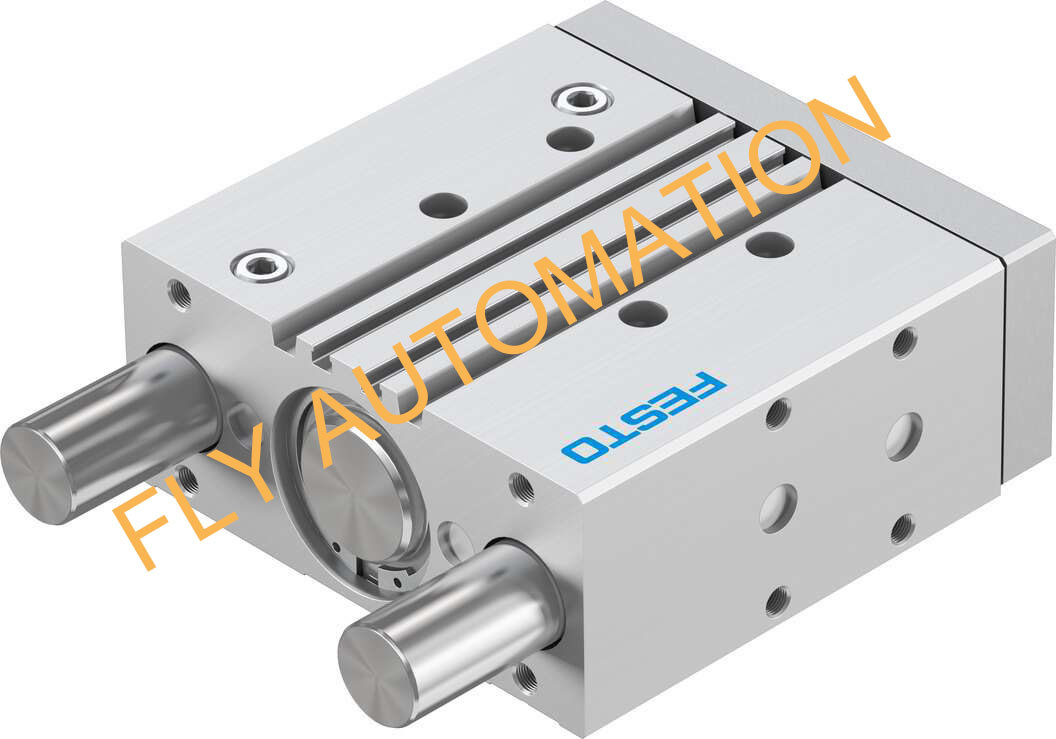

DFM-50-80-P-A-GF Guided Drive Pneumatic Air Cylinders 170873 GTIN4052568013318

DFM-50-80-P-A-GF Guided Drive Pneumatic Air Cylinders 170873 GTIN4052568013318

  • DFM-50-80-P-A-GF Guided Drive Pneumatic Air Cylinders 170873 GTIN4052568013318
  • DFM-50-80-P-A-GF Guided Drive Pneumatic Air Cylinders 170873 GTIN4052568013318
DFM-50-80-P-A-GF Guided Drive Pneumatic Air Cylinders 170873 GTIN4052568013318
Product Details:
Place of Origin: China
Brand Name: FESTO
Model Number: DFM-50-80-P-A-GF
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: EXW USD200-250
Packaging Details: Plastic bag, Carton
Delivery Time: 10-15 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 50 pcs per month
Contact Now
Detailed Product Description
Part No: 170873 Brand: FESTO
Type: DFM-50-80-P-A-GF GTIN: 4052568013318
LABS (PWIS) Conformity: VDMA24364-B2-L Corrosion Resistance Class CRC: 1 - Low Corrosion Stress
Highlight:

170873 Pneumatic Air Cylinders

,

DFM-50-80-P-A-GF Guided Drive

,

Low Corrosion Stress Guided Drive

FESTO Guided drive DFM-50-80-P-A-GF 170873 GTIN4052568013318 Pneumatic Air Cylinders



About Product

1.Super durable, stable performance.

2.Choice of compressed air supply ports.

3.Wide range of mounting options.

4.Minimal space requirement.

5.Good protection against torsion.



Technical Data

Stroke 80 mm
Piston diameter 50 mm
Operating mode, drive unit Yoke
Cushioning Elastic cushioning rings/plates at both ends
Mounting position optional
Guide Plain-bearing guide
DesignX Plain-bearing guide
Position detection Via proximity switch
Symbol 00991737
Max. speed 0.6 m/s
Mode of operation Double-acting
Corrosion resistance class CRC 1 - Low corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Ambient temperature -20°C-80°C
Product weight 5013 g
Pneumatic connection G1/4
Note on materials RoHS-compliant
Material cover Wrought aluminium alloy
Material seals NBR
Material housing Wrought aluminium alloy
Material piston rod High-alloy stainless steel



Another size as below

Type Order no Weight(g) Price
DFM-50-25-P-A-GF 170871 3440 USD200-250
DFM-50-50-P-A-GF 170872 4085 USD200-250
DFM-50-80-P-A-GF 170873 5013 USD200-250
DFM-50-100-P-A-GF 170874 5511 USD200-250
DFM-50-125-P-A-GF 170875 6302 USD200-250
DFM-50-160-P-A-GF 170876 7205 USD200-250
DFM-50-200-P-A-GF 170877 8238 USD200-250



After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.


With the Festo Core Range, we have selected the most important products and functions from our broad product catalogue, and added the quickest delivery.The Core Range off ers you the best value for your automation tasks.



A wide range of products with excellent prices. Please hurry to me!
