Place of Origin: | China |
Brand Name: | FESTO |
Model Number: | WIFC1-20X25X4,6-TPE-U,359748 |
Minimum Order Quantity: | 1pc |
---|---|
Price: | EXW USD10-USD15 |
Packaging Details: | carton,OPP bag |
Delivery Time: | 3-5 working days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 6000 pcs per month |
Material: | Polyurethane ,dark Red | Specifications: | WIFC1-20X25X4,6-TPE-U |
---|---|---|---|
Order No: | 359748 | Color: | Dark Red |
Brand: | FESTO | Size: | 20X25X4,6 |
High Light: | Polyurethane Pneumatic Cylinder Kit,6-TPE-U Wiper Seal,Pneumatic Air Seal Ring |

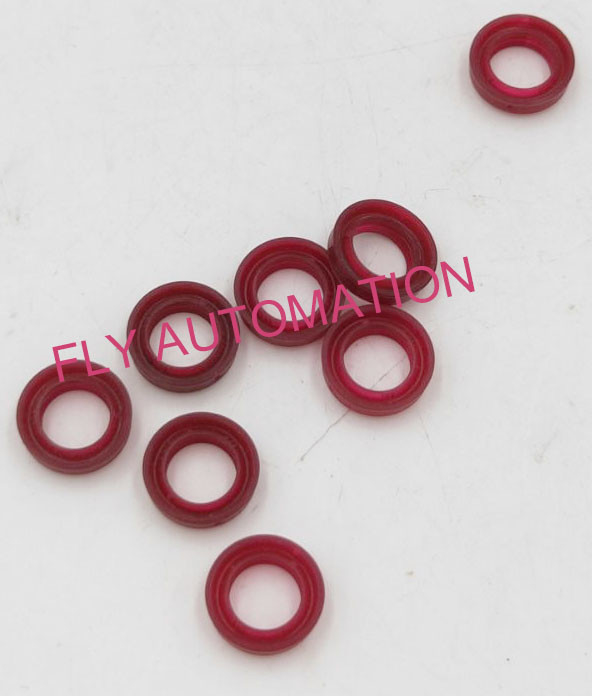

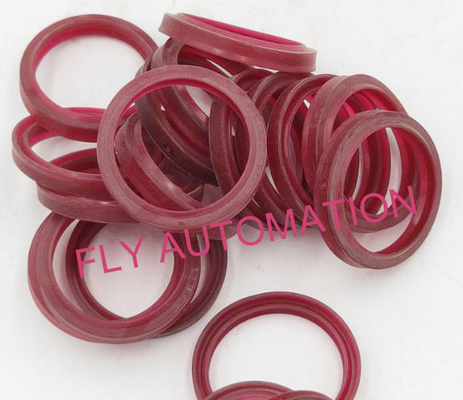

FESTO original seal ring, imported from Germany, made of dark red polyurethane.
Material:Polyurethane ,dark red
Specifications:WIFC1-20X25X4,6-TPE-U
Order no:359748
Color: dark red
Brand:FESTO
Size:20X25X4,6
This seal oil scraper is used for various types of cylinders:DZF-50,DFM-80,STAF-32,AEVC-80,CLR-50,ADN-80,AEN-80,AEN-100,ADNGF-80,ADNGF-100,ADNM-63,ADNM-100,ADM-50-KP,ADN-63-KP,DSBF-C-50,DSBF-C-63,DFSP-32.
Installation steps:
1.Please align the side with words in the groove with the inside of the cylinder, and do not install it reversely
2.Push the sealing ring into the cylinder head. An audible click indicates that it has entered the installation position
3.Apply a proper amount of grease on the inner diameter of the seal ring to improve the service life of the seal ring
4.Wrap a proper amount of adhesive tape around the piston rod thread to avoid scratching the seals when the piston rod is inserted
5.Insert the piston rod and fix the cylinder head
Be attention
Careful installation and initial lubrication are important means to ensure the service life of seals.
Another size detail as bellow:
Specifications | Order no | Size | Coler | EXW price | Delivery date |
FESTO,WIFC1-20X25X4,6-TPE-U | 359748 | 20X25X4,6 | red | USD10-15 | 3-5 working days |
FESTO,WIFC1-8X11,5X3,2-TPE-U | 369059 | 8X11,5X3,2 | red | USD5-15 | 3-5 working days |
FESTO,WIFC1-25X30X4,6-TPE-U | 369544 | 25X30X4,6 | red | USD15-20 | 3-5 working days |
FESTO,WIFC1-10X14X3,7-TPE-U | 369542 | 10X14X3,7 | red | USD10-15 | 3-5 working days |
FESTO,WIFC1-16X20,5X4-TPE-U | 369543 | 16X20,5X4 | red | USD8-15 | 3-5 working days |
FESTO,WIFC1-12X16,5X4-TPE-U |
359749 | 12X16,5X4 | red | USD8-15 | 3-5 working days |

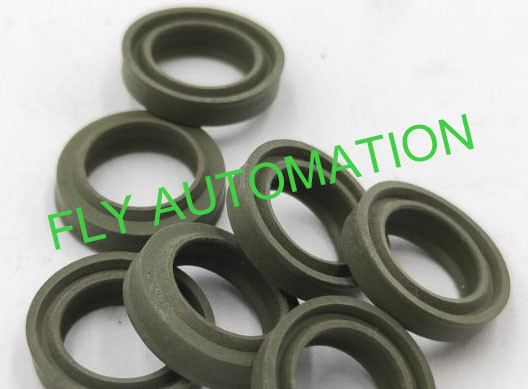

FESTO,WIFC1-25X30X4,6-FPM | 369762 | 25X30X4,6 | green | USD5-15 | 3-5 working days |
FESTO,WIFC1-8X11,5X3,2-FPM | 369758 | 8X11,5X3,2 | green | USD15-20 | 3-5 working days |
FESTO,WIFC1-32X37,5X5-FPM | 369763 | 32X37,5X5 | green | USD50-60 | 3-5 working days |
Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.
