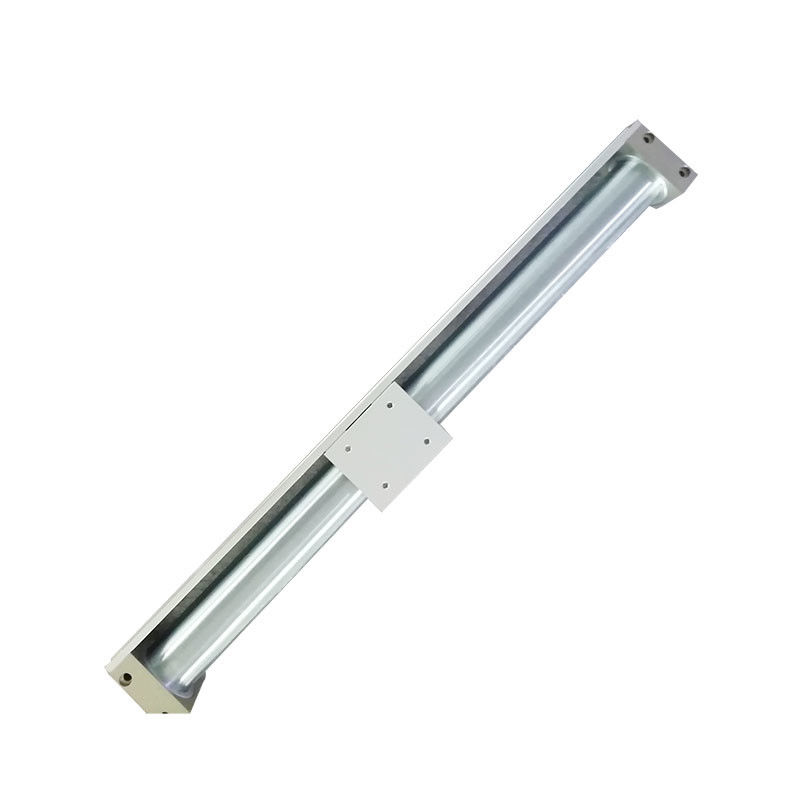

Name: CY1R Series Pneumatic Air Cylinders Magnetically Coupled Direct Mount Rodless Cylinder
Brand: FLY AUTOMATION
SKU: CY1R63-700
Price: 1,150.60 USD
Availability: InStock

Home Products Pneumatic Air Cylinders

CY1R Series Pneumatic Air Cylinders Magnetically Coupled Direct Mount Rodless Cylinder

Product Details:

Place of Origin:	China
Brand Name:	Airwolf
Certification:	CE
Model Number:	CY1R63-700

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	Negotiation
Packaging Details:	Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Delivery Time:	within 1-30 working days after payment
Payment Terms:	T/T , Western Union
Supply Ability:	1000 pcs

Contact Now

Detailed Product Description

Model Code:	CY1R63-700	Name:	Rodless Cylinder
Color:	Slivery	Working Medium:	Air
Material:	Aluminium Alloy	Temperature:	-10℃ To 60℃
Highlight:	pneumatic actuator cylinder , smc pneumatic cylinder

CY1R Series Cylinder CY1R63-700 Magnetically Coupled Direct Mount Rodless Cylinder

Mounting
Caution
1.Take care to avoid nicks or other damage on the outside surface of the cylinder tube.
2.Use caution to the rotation of the external slider.
3.Do not operate with the magnetic coupling out of position.
4.Be sure that both head covers are secured to the mounting surface before operating the cylinder.
5.Do not apply a lateral load to the external slider.

Max. operating pressure	0.7MPa
Fluid temperature	-10℃ to 60℃
Material	Alumium Alloy
Fluid	Air
Mounting	Direct Mount

Bore size(mm)	6	10	15	20	25	32	40	50	63
Fluld	Air
Proof pressure	1.05MPa
Max.operating pressure	0.7MPa
Min.operating pressure	0.16	0.16	0.16	0.16	0.15	0.14	0.12	0.12	0.12
Amblent and fluld temperature	-10 to 60℃ (No freezing)
Plston speed	50 to 500 mm/s
Cushlon	Rubber bumper
Lubrication	Not required (Non-lube)
Stroke length tolerance(mm)	0 to 250 st: +1.0 , 251 to 1000 st: +1.4, 1001 st to: +1.8
Mounting orientation	Horizontal,Inclined,Vertical Note)
Mounting nut(2 pcs.)	Standard equipment (accessory)
Magnet holding force(N)	19.6	53.9	137	231	363	588	922	1471	2256

CY1R Series Pneumatic Air Cylinders Magnetically Coupled Direct Mount Rodless Cylinder

Competitive Advantage

Our product features	Our Services Guarantee:
1) Competitive price	1) Prompt respond (Reply with 24 hours)
2) Good quality	2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging	3) Registration support.
4) Produce according to Customers’ instruction	4) Photos/videos are available during production.
5) None delay shipment	5) Loading inspection, and send loading photos before shipment.

Packing and delivery

Packing Details : Standard Carton,and other special packing according to customer's requirement
Delivery Details : Ready to ship,1-5 days after payment

After-sale service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

Samples
You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.

Packaging shipping
1. If order is not big enough, we will provide Door To Door service, we cooperate with UPS,DHL,FEDEX,TNT all year round,we gurantee that the shipping price that we offer to you is the most favorable price among so many suppliers in China.
2. By Air or By Sea through your forwarder is acceptable, if you have no forwarder in China, we also could find you cost-effective forwarder for your reference.
