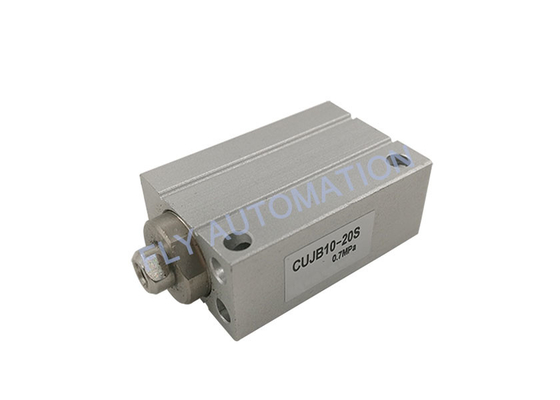

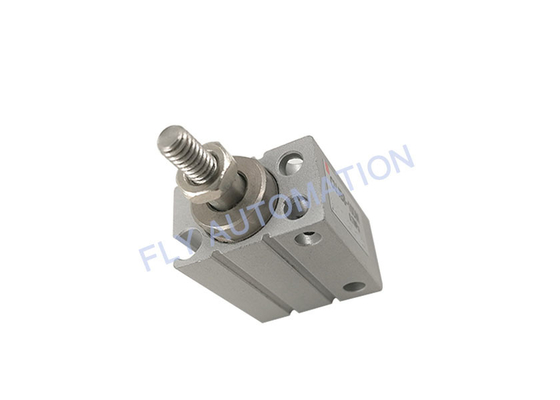

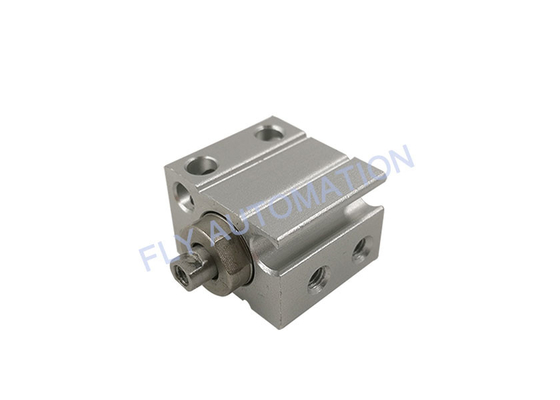

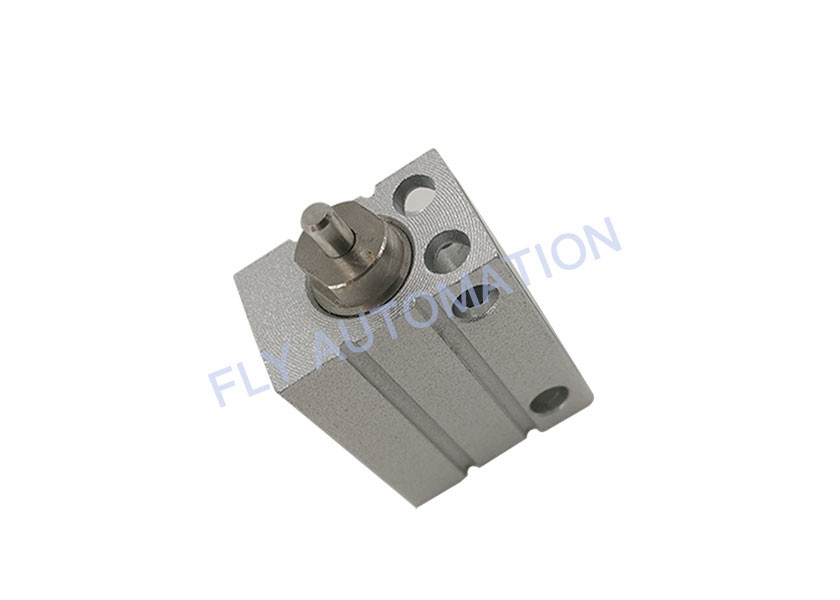

CUJB CUJ Series Mini Free Mount Cylinder SMC Pneumatic Air Cylinder

CUJB CUJ Series Mini Free Mount Cylinder SMC Pneumatic Air Cylinder

  • CUJB CUJ Series Mini Free Mount Cylinder SMC Pneumatic Air Cylinder
  • CUJB CUJ Series Mini Free Mount Cylinder SMC Pneumatic Air Cylinder
  • CUJB CUJ Series Mini Free Mount Cylinder SMC Pneumatic Air Cylinder
  • CUJB CUJ Series Mini Free Mount Cylinder SMC Pneumatic Air Cylinder
  • CUJB CUJ Series Mini Free Mount Cylinder SMC Pneumatic Air Cylinder
CUJB CUJ Series Mini Free Mount Cylinder SMC Pneumatic Air Cylinder
Product Details:
Place of Origin: CHINA
Brand Name: FLY
Certification: CE
Model Number: CUJB CUJ Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiation
Packaging Details: Plastic bags, boxes, cartons, Pallets or As customer's requirement
Delivery Time: 1-7 work days
Payment Terms: Western Union, T/T, L/C, Paypal, Credit card
Supply Ability: 1000 pieces per 10 working days
Contact Now
Detailed Product Description
Action: Double Acting; Single Acting, Spring Return Fluid: Air
Max. Operating Pressure: 0.7MPa Proof Pressure: 1.05MPa
Ambient And Fluid Temperature: –10 To 70°C (No Freezing) Lubrication: Non-lube
Piston Speed: 50 To 500mm/s Cushion: None
Highlight:

CUJB Mini Free Mount Cylinder

,

SMC Pneumatic Air Cylinder

CUJB CUJ Series Mini Free Mount Cylinder SMC Pneumatic Air Cylinder

Specifications:

Bore size (mm) 4 6 8 10
Action Double acting; Single acting, spring return
Fluid Air
Max. operating pressure 0.7MPa
Min. operating pressure Double acting 0.15MPa 0.1MPa
Single acting, spring return 0.35MPa 0.3MPa 0.2MPa
Proof pressure 1.05MPa
Ambient and fluid temperature Without auto switch: –10 to 70°C (No freezing)
With auto switch: –10 to 60°C (No freezing)
Lubrication Non-lube
Piston speed 50 to 500mm/s
Cushion None
Stroke length tolerance +0.5
0
Mouting Through-hole



CUJB CUJ Series Mini Free Mount Cylinder SMC Pneumatic Air Cylinder

Weight :

Weight: Double Acting
Bore size
(mm)		 Standard stroke (mm) Additional weight
4 6 8 10 15 20 25 30 Built-in magnet Rod end male threaded
CUJB4 7.2 7.9 8.6 9.3 11.1 12.8 - - - 0.4
CUJB6 12.4 13.6 14.8 16 18.9 21.8 24.7 27.6 2.7 0.8
CUJB8 15.6 17 18.4 19.7 23 26.4 29.9 33.4 3 1.5
CUJB10 17.9 19.4 20.8 22.3 25.9 29.5 33.1 36.7 3.2 2.6



Weight: Single Acting, Spring Return
Bore size
(mm)		 Standard stroke (mm) Additional weight
4 6 8 10 Built-in magnet Rod end male threaded
CUJB4 7.2 7.9 - - - 0.4
CUJB6 12.8 14 15.2 - 2.4 0.8
CUJB8 15.8 17.2 18.6 19.9 2.5 1.5
CUJB10 17.9 19.4 20.8 22.3 2.4 2.6



Standard Stroke
Action Bore size (mm) Standard stroke (mm)
Double acting 4 4, 6, 8, 10, 15, 20
6 4, 6, 8, 10, 15, 20,
25, 30
8,10
Single acting,
spring return		 4 4, 6
6 4, 6, 8
8,10 4, 6, 8, 10



CUJB CUJ Series Mini Free Mount Cylinder SMC Pneumatic Air CylinderCUJB CUJ Series Mini Free Mount Cylinder SMC Pneumatic Air Cylinder
