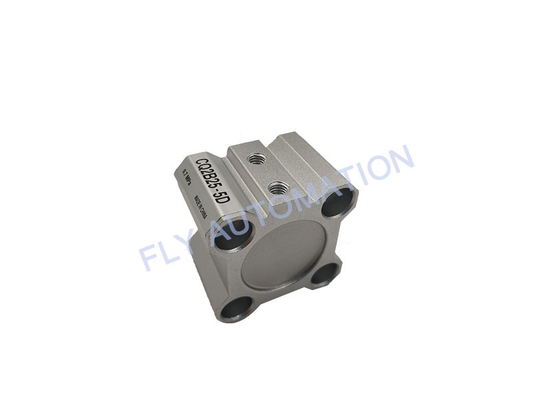

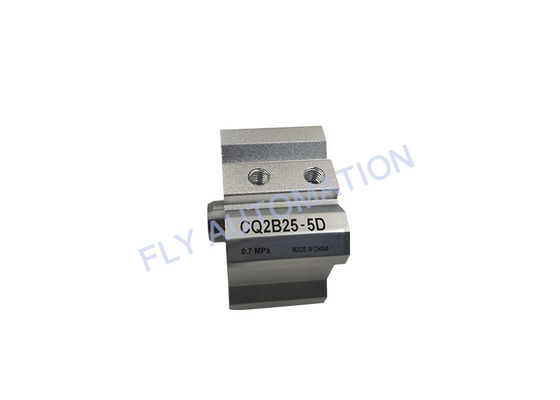

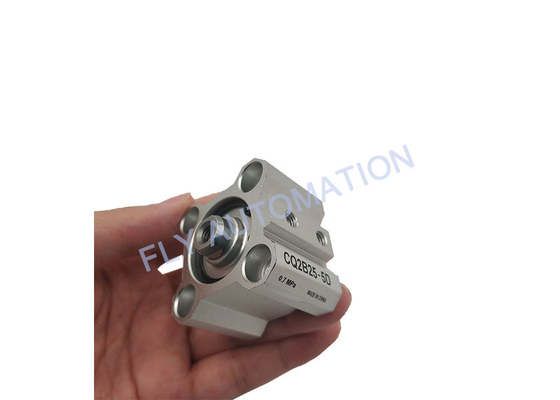

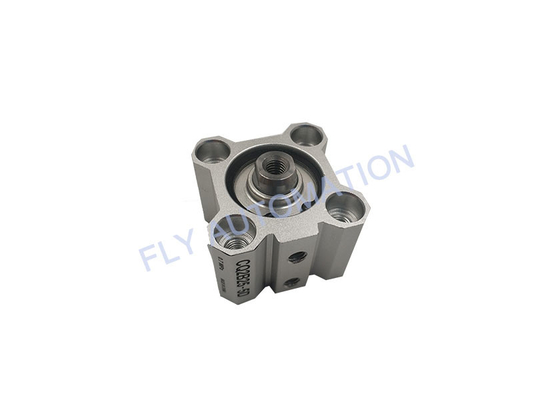

CQ2B25-5D Compact Air Cylinder SMC Double Acting Single Rod Standard Cylinder

CQ2B25-5D Compact Air Cylinder SMC Double Acting Single Rod Standard Cylinder

  • CQ2B25-5D Compact Air Cylinder SMC Double Acting Single Rod Standard Cylinder
  • CQ2B25-5D Compact Air Cylinder SMC Double Acting Single Rod Standard Cylinder
  • CQ2B25-5D Compact Air Cylinder SMC Double Acting Single Rod Standard Cylinder
  • CQ2B25-5D Compact Air Cylinder SMC Double Acting Single Rod Standard Cylinder
  • CQ2B25-5D Compact Air Cylinder SMC Double Acting Single Rod Standard Cylinder
CQ2B25-5D Compact Air Cylinder SMC Double Acting Single Rod Standard Cylinder
Product Details:
Place of Origin: CHINA
Brand Name: FLY
Certification: CE
Model Number: CQ2B25-5D
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiation
Packaging Details: Plastic bags, boxes, cartons, Pallets or As customer's requirement
Delivery Time: 1-7 work days
Payment Terms: Western Union, T/T, L/C, Paypal, Credit card
Supply Ability: 1000 pieces per 10 working days
Contact Now
Detailed Product Description
Action: Double Acting, Single Rod Fluid: Air
Proof Pressure: 1.5MPa Max. Operating Pressure: 1.0MPa
Lubrication: Not Required (Non-lube) Piston Speed: 50 To 500 Mm/s
Stroke Length Tolerance: +1.0 Mm/0 Temperature: –10 To 70°C
Highlight:

Double Acting Compact Air Cylinder

,

Single Rod Compact Air Cylinder

,

SMC Compact Air Cylinder

CQ2B25-5D Compact Air Cylinder SMC Double Acting Single Rod Standard Cylinder

Specifications:



Pneumatic type

Bore size(mm) 12 16 20 25 32 40 50 63 80 100
Action Double acting, Single rod
Fluid Air
Proof pressure 1.5MPa
Max. operating pressure 1.0MPa
Min. operating pressure (MPa) 0.07MPA 0.05MPA
Ambient and fluid temperature Without auto switch: –10 to 70°C (No freezing)
With auto switch: –10 to 60°C (No freezing)
Lubrication Not required (Non-lube)
Piston speed 50 to 500 mm/s
Stroke length tolerance Double acting, Single rod



Air -hydro

Bore size(mm) 20 25 32 40 50 63 80 100
Action Double acting, Single rod
Fluid Turbine oil
Proof pressure 1.5MPa
Max. operating pressure 1.0MPa
Min. operating pressure (MPa) 0.18MPA 0.1MPA
Ambient and fluid temperature 5 to 60℃
Piston speed 50 to 500 mm/s
Stroke length tolerance + 1.0mm
0

CQ2B25-5D Compact Air Cylinder SMC Double Acting Single Rod Standard Cylinder

After-sale Service
One year quality guarantee Policy
We will check the goods quality before shipment. If there are some unexpected problems happen, we hope to solve the problems with buyer through friendly in the following ways:
1, If it is quality problem, buyer can submit argue within 15days after receiving the goods, buyer must provide photos or video and other evidence to seller for identify.
2, Man-made damaged, buyers take full responsibility.
3, Product quality processing program:
1) The buyer return the products for bad quality reasons for one year (not included those damages coursed by shipping or Man-made damaged ). A 15% restocking fee is assessed for any products returned in "used" condition. And then we will send a new product to buyer and pay for the resend shipping cost.
2) If the goods (total price including shipping is less than 10USD) has quality problems, we will resend a new product in buyer next order; if buyer don't plan to make a new order in the near term, buyer can pay the resend shipping cost and ask to resend a new product. If there is an issue with the products, please contact us– we will solve it as soon as we get your email.



CQ2B25-5D Compact Air Cylinder SMC Double Acting Single Rod Standard CylinderCQ2B25-5D Compact Air Cylinder SMC Double Acting Single Rod Standard Cylinder
