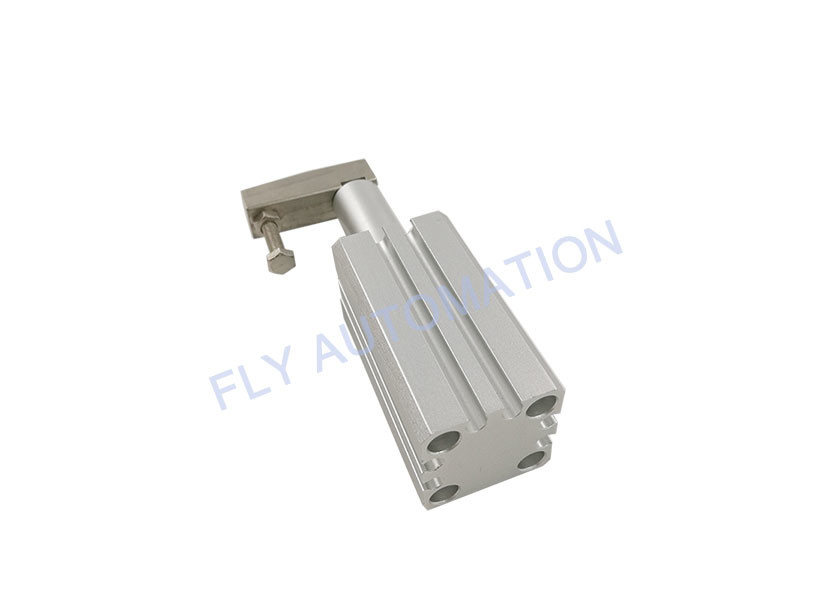

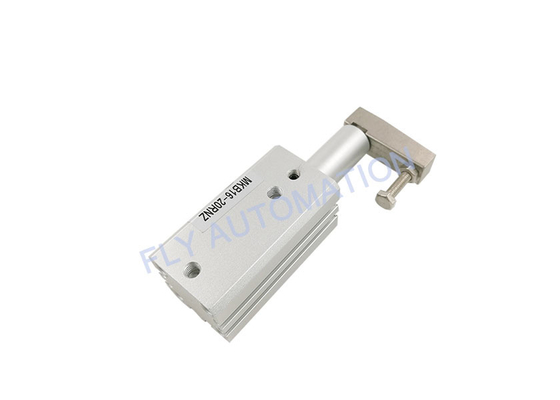

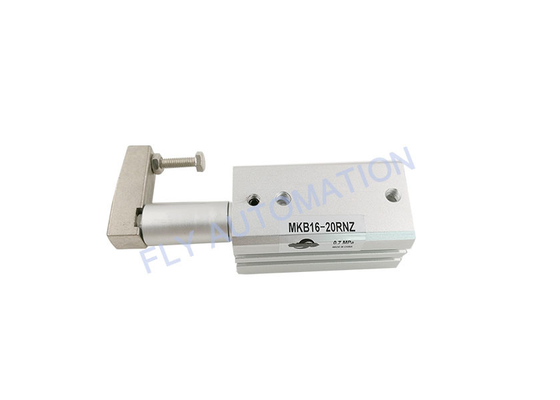

Name: Compact SMC Rotary Clamp Pneumatic Air Cylinders MKB16-20RNZ Standard
Brand: FLY
SKU: MKB16-20RNZ
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (168 reviews)

Home Products Pneumatic Air Cylinders

Compact SMC Rotary Clamp Pneumatic Air Cylinders MKB16-20RNZ Standard

Product Details:

Place of Origin:	CHINA
Brand Name:	FLY
Certification:	CE
Model Number:	MKB16-20RNZ

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiation
Packaging Details:	Plastic bags, boxes, cartons, Pallets or As customer's requirement
Delivery Time:	1-7 work days
Payment Terms:	Western Union, T/T, L/C, Paypal, Credit card
Supply Ability:	1000 pieces per 10 working days

Contact Now

Detailed Product Description

Action:	Double Acting	Fluid:	AIR
Proof Pressure:	1.5MPA	Lubrication:	Not Required
Cushion:	Rubber Bumper	Piston Speed:	50 To 200 Mm/s
High Light:	Rotary Clamp Pneumatic Air Cylinders , Pneumatic Air Cylinders MKB16-20RNZ , SMC Compact Air Cylinder

SMC Rotary Clamp Cylinder MKB16-20RNZ Standard Pneumatic Air Cylinder

Specifications
Bore size (mm)	12	16	20	25	32	40	50	63
Action	Double acting
Rotary angle	90° ±10°
Rotary direction	Clockwise, Counterclockwise
Rotary stroke (mm)	7.5		9.5		15		19
Clamp stroke (mm)	10, 20, 30				10, 20, 30, 50
Theoretical clamp force (N)	40	75	100	185	300	525	825	1400
Fluid	Air
Proof pressure	1.5 MPa
Operating pressure range	0.1 to 1 MPa							0.1 to 0.6 MPa
Ambient and fluid temperature	Without auto switch: –10 to 70°C (No freezing) With auto switch: –10 to 60°C (No freezing)
Lubrication	Non-lube
Piping port size	M5 x 0.8				Rc1/8, NPT1/8 G1/8		Rc1/4, NPT1/4 G1/4
Mounting	Through-hole/Both ends tapped common, Head flange
Cushion	Rubber bumper
Stroke length tolerance	+0.6 –0.4
Piston speed Note 5)	50 to 200 mm/s
Non-rotating accuracy (Clamp part)	±1.4°	±1.2°			±0.9°		±0.7°

Theoretical Output
Bore size (mm)	Rod size (mm)	Operating direction	Piston area (cm2)	Operating pressure (MPa)
Bore size (mm)	Rod size (mm)	Operating direction	Piston area (cm2)	0.3	0.5	0.7	1.0
12	6	R	0.8	24	40	56	80
12	6	H	1.1	33	55	77	110
16	8	R	1.5	45	75	105	150
16	8	H	2	60	100	140	200
20	12	R	2	60.8	100	139	200
20	12	H	3.1	90.2	149	208	298
25	12	R	3.8	112	185	258	370
25	12	H	4.9	149	245	341	490
32	16	R	6	182	300	418	600
32	16	H	8	243	400	557	800
40	16	R	10.6	319	525	731	1050
40	16	H	12.6	380	625	870	1250
50	20	R	16.5	502	825	1149	1648
50	20	H	19.6	596	980	1365	1961
63	20	R	28	851	1400	1950	2801
63	20	H	31.2	948	1560	2172	3121

Compact SMC Rotary Clamp Pneumatic Air Cylinders MKB16-20RNZ Standard

Delivery
1. If the products we have in stock, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNT will be normal ways. If you require use of a courier, we can do it.

Serves time
0:00 - 23:59
From Monday to Sunday

FAQ:

Q: Where is your factory ? Can we visit your factory?

A:Our factory is located in Ningbo City, Zhejiang Province,China, 17kms away from Ningbo Airport. We sincerely welcome customers to visit our company and factory.

Q: Could you add our logo on your products?

A: Yes,if your quantity more than 50pcs. we could add your logo on the products.

Q: How long is your delivery time?

A: Generally it is 1-2 days if the goods are in stock. or it will be 3-5 weeks if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ?
A: Yes, we could offer the sample for free charge, but do not pay the cost of express freight.

Q: What is your payment term and payment way?
A: Payment<=2000USD, 100% in advance.

Payment>=2000USD, 30% T/T in advance ,balance before shippment. Payment ways are : T/T, Western Union, Paypal, Alipay.

Q.What’s the shipping way?

A: For small packages, we will choose the door to door express, we cooperated with UPS,DHL,FEDEX,TNT more than 10 years,we gurantee the shipping cost that we offer to you will be the most favorable price among so many suppliers in China. We will send you the tracking number once we got it.
.
For big orders, By Air or By Sea through your shipping forwarder is acceptable, if you don't have forwarder in China, we will find the most cost-effective one for you.

Warranty

All item Comes with Basic 3 Months Sellers Warranty, if item defective in 3 Months, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.

If item Defective after 3 Months, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.

Compact SMC Rotary Clamp Pneumatic Air Cylinders MKB16-20RNZ Standard
