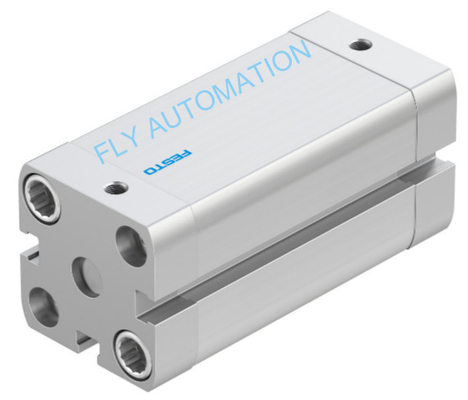

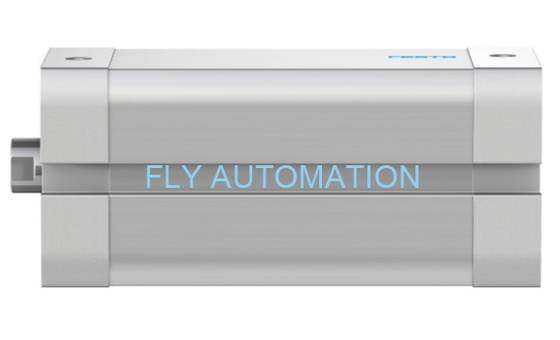

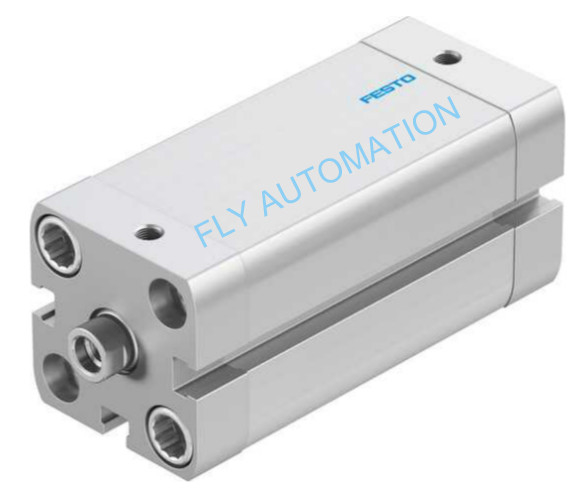

Compact Pneumatic Air Cylinders ADN-25-50-I-P-A 536266 GTIN4052568087708

Product Details:

Place of Origin:	China
Brand Name:	FESTO
Model Number:	ADN-25-50-I-P-A

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	EXW USD25-35
Packaging Details:	plastic bag, carton，OPP bag
Delivery Time:	7-10 working days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	100 pcs per month

Contact Now

Detailed Product Description

Part No:	536266	Brand:	FESTO
Type:	ADN-25-50-I-P-A	GTIN:	4052568087708
Symbol:	'00991217	Mode Of Operation:	Double-acting
Highlight:	Compact Pneumatic Air Cylinders , ADN-25-50-I-P-A Compact Cylinder , Double Acting Pneumatic Cylinder

FESTO Compact cylinder ADN-25-50-I-P-A 536266 GTIN4052568087708 Pneumatic Air Cylinders

Name: Compact Pneumatic Air Cylinders ADN-25-50-I-P-A 536266 GTIN4052568087708
Brand: FLY AUTOMATION
SKU: ADN-25-50-I-P-A
Price: 30.00 USD
Availability: InStock

About product

1.The drive has elastic polymer end-position cushioning.

2.Application:Small loads ,Low speeds ,Small cushioning capacity.

3.Advantages:No adjustment required ,Saves time.

Technical Data

Stroke	50 mm
Piston diameter	25 mm
Piston rod thread	M6
Cushioning	Elastic cushioning rings/plates at both ends
Mounting position	optional
Conforms to standard	ISO 21287
Piston-rod end	Female thread
Position detection	Via proximity switch
Symbol	00991217
Variants	Piston rod at one end
Mode of operation	Double-acting
Corrosion resistance class CRC	2 - Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C-80°C
Basic weight for 0 mm stroke	156 g
Additional weight per 10 mm stroke	23g
Pneumatic connection	M5
Note on materials	RoHS-compliant
Material cover	Aluminium Anodised
Material seals	TPE-U(PUR)
Material piston rod	High-alloy steel
Material cylinder barrel	Wrought aluminium alloy Smooth anodised

Another stroke as below

Type	Order no	GTIN	Price
ADN-25-5-I-P-A	536259	4052568087630	USD25-35
ADN-25-10-I-P-A	536260	4052568087647	USD25-35
ADN-25-15-I-P-A	536261	4052568087654	USD25-35
ADN-25-20-I-P-A	536262	4052568087661	USD25-35
ADN-25-25-I-P-A	536263	4052568087678	USD25-35
ADN-25-30-I-P-A	536264	4052568087685	USD25-35
ADN-25-40-I-P-A	536265	4052568087692	USD25-35
ADN-25-50-I-P-A	536266	4052568087708	USD25-35
ADN-25-60-I-P-A	536383	4052568087883	USD25-35

Optimised manufacturing methods,patented technology and more than 40 years of experience in the field of cylinders make Festo and ADN/AEN a great team

Dimensions – Basic version

Compact Pneumatic Air Cylinders ADN-25-50-I-P-A 536266 GTIN4052568087708

There are so many kinds. Hurry to call me!
