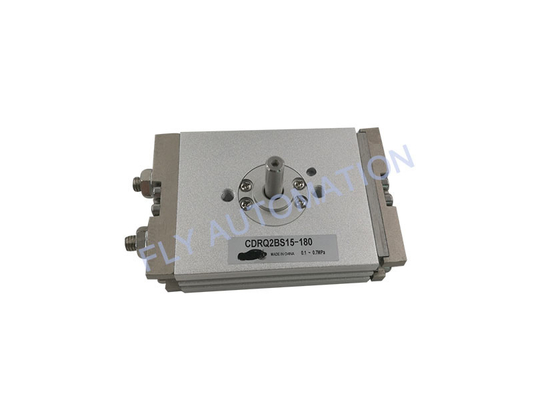

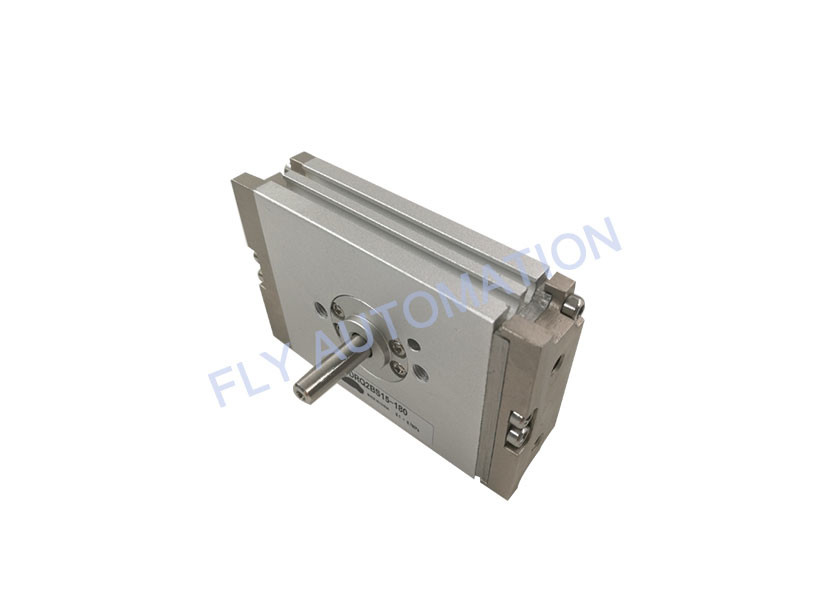

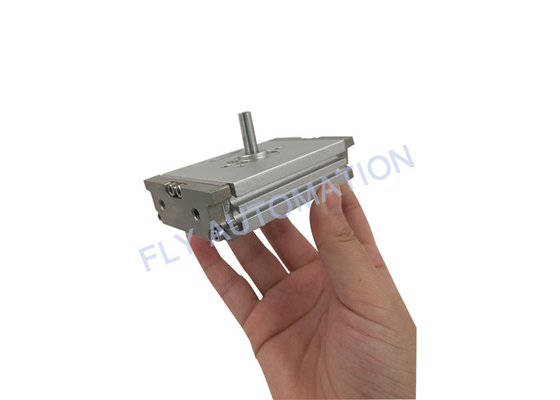

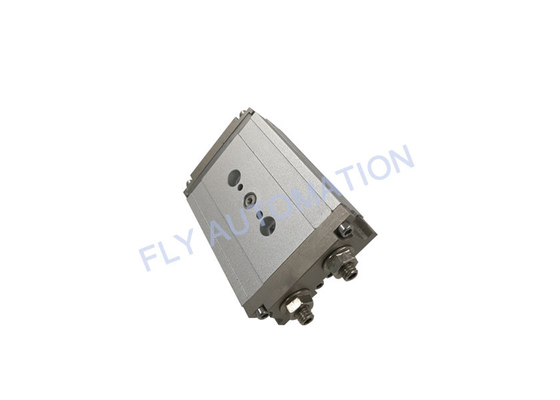

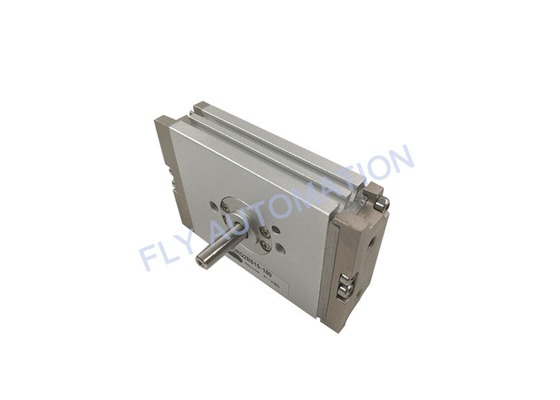

Name: CDRQ2BS15-180 SMC Pnemuatic Air Cylinder Aluminium CDRQ2 Compact Rotary Actuator
Brand: FLY AUTOMATION
SKU: CDRQ2BS15-180
Price: 1,150.60 USD
Availability: InStock

Home Products Pneumatic Air Cylinders

CDRQ2BS15-180 SMC Pnemuatic Air Cylinder Aluminium CDRQ2 Compact Rotary Actuator

Product Details:

Place of Origin:	CHINA
Brand Name:	FLY
Certification:	CE
Model Number:	CDRQ2BS15-180

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiation
Packaging Details:	Plastic bags, boxes, cartons, Pallets or As customer's requirement
Delivery Time:	1-7 work days
Payment Terms:	Western Union, T/T, L/C, Paypal, Credit card
Supply Ability:	1000 pieces per 10 working days

Contact Now

Detailed Product Description

Fluid:	Air (Non-lube)	Max. Operating Pressure:	0.7 MPa ~1.0Mpa
Min. Operating Pressure:	0.15 MPa~0.1 MPa	Ambient And Fluid Temperature:	0° To 60°C (No Freezing)
Angle Adjustment Range:	Rotation End +5°	Rotation:	90°，180°, 360°
Body:	Aluminum Alloy	Cover:	Aluminum Alloy
Highlight:	Aluminium CDRQ2 Compact Rotary Actuator

Pnemuatic Cylinder SMC Series CRQ2 Compact Rotary Actuator Rack&Pinion Style

Bore size (mm)	10	15	20	30	40
Fluid	Air
Action	Double acting
Minimum operating pressure	0.15 MPa		0.1 MPa
Maximum operating pressure	0.7 MPa		1.0 Mpa
Ambient and fluid temperature	0 to 60°C (No freezing)
Cushion	Rubber bumper		None/Adjustable air cushion at both ends
Lubrication	Non-lube
Output (N·m)	0.3	0.75	1.8	3.1	5.3
Auto Swith(Option)	Solide state switch(3-wire, 2-wire)
Port Size	M5x0.8		G1/8
Note 1: Output under the operating pressure at 0.5 MPa.

No.	Description	Material	Note
1	Body	Aluminum alloy	Anodized
2	Cover	Aluminum alloy	Chromated,painted
3	Piston	Stainless steel	-
4	Shaft	Stainless steel	Size: 10, 15
4	Shaft	Chrome molybdenum steel	Size: 20, 30, 40
5	Seal retainer	Aluminum alloy	Chromated
6	Wraring	Resin

CDRQ2BS15-180 SMC Pnemuatic Air Cylinder Aluminium CDRQ2 Compact Rotary Actuator

FAQ :
Q: Where is your factory ? Can we visit your factory?
A:Our factory is located in Ningbo City, Zhejiang Province,China, 17kms away from Ningbo Airport. We sincerely welcome customers to visit our company and factory.
Q: Could you add our logo on your products?
A: Yes,if your quantity more than 50pcs. we could add your logo on the products.
Q: How long is your delivery time?
A: Generally it is 1-2 days if the goods are in stock. or it will be 3-5 weeks if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ?
A: Yes, we could offer the sample for free charge, but do not pay the cost of express freight.
Q: What is your payment term and payment way?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment. Payment ways are : T/T, Western Union, Paypal, Alipay.
Q.What’s the shipping way?
A: For small packages, we will choose the door to door express, we cooperated with UPS,DHL,FEDEX,TNT more than 10 years,we gurantee the shipping cost that we offer to you will be the most favorable price among so many suppliers in China. We will send you the tracking number once we got it.
.For big orders, By Air or By Sea through your shipping forwarder is acceptable, if you don't have forwarder in China, we will find the most cost-effective one for you.
