|Place of Origin:||China|
|Brand Name:||Goyen or OEM|
|Minimum Order Quantity:||1|
|Delivery Time:||5 working days|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||2000 pcs/month|
|Model:||CA62T RCA62T||Port Size:||2.5"|
|Material:||Aluminium And Stainless Steel||Diaphragm:||K5004 K5000|
air pulse valve,
pulse jet valve

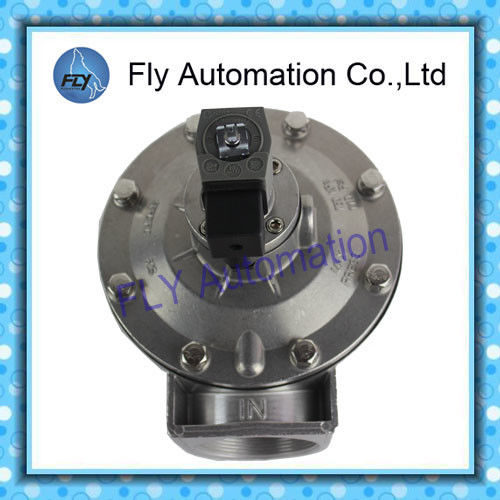

CA-62T,RCA-62T,DIN43650A Connector 24V Goyen RCA Pilot Pulse Jet Valves 2.5inch
High performance diaphragm valve with threaded ports. Available with integral pilot or as remotely piloted
valve. Outlet at 90° to inlet.
|Ordering Code||Port Size||Orifice||Flow Value|
|Core and Plugnut||Stainless steel|
|Core Spring||SS 304|
|Sealing & disc||NBR(nitrile/buna-n)|
|Voltage||DC: 24V, AC: 24V, 48V, 110V, 230V|
|Working Temperature||-20 to +85℃ Nitrile seals -29 to +232℃ fluororubber seals|
|Coil Insulation Class||F|
|Recommended on time range||50-500ms|
|Recommended time between pulses||1 minute or Less|
Dust collector applications, in particular for reverse pulse jet filter cleaning including bag filters, cartridge filters,envelope filters, ceramic filters, and sintered metal fibre filters.
Body: Aluminium (diecast)
Ferrule: 304 SS
Armature: 430FR SS
Seals: Nitrile or fluororubber (reinforced)
Spring: 304 SS
Screws: 302 SS
Diaphragm Seat: PA-6 (standard), fluororubber
coated mild steel or High Density PE
1. Prepare supply and blowtube pipes to suit valve specification. Avoid installing
valves underneath the tank.
2. Ensure tank and pipes are free from dirt, rust or other particulate.
3. Ensure supply air is clean and dry.
4, Mount valves to inlet pipes and blowtube to valves, ensuring no excess thread
sealant can enter the valve itself.
5. Make electrical connections to solenoid or connect RCA pilot port to pilot valve
(RCA valves only).
6. Apply moderate pressure to system and check for installation leaks.
7. Fully pressurise system.
8. Test fire and listen for proper actuation and crisp pulse noise.
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
Our product features Our Services Guarantee:
1) Competitive price 1) Prompt respond (Reply with 24 hours)
2) Good quality 2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging 3) Registration support.
4) Produce according to Customers’ instruction 4) Photos/videos are available during production.
5) None delay shipment 5) Loading inspection, and send loading photos before shipment.
Contact Person: Jaren
