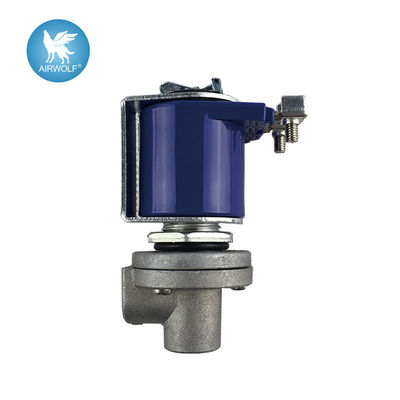

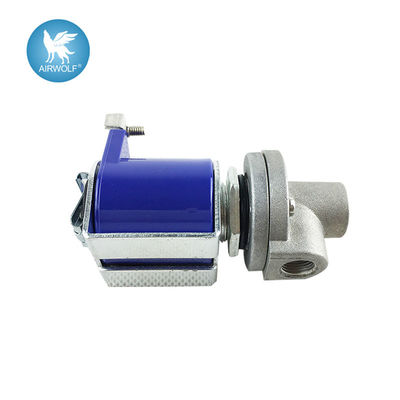

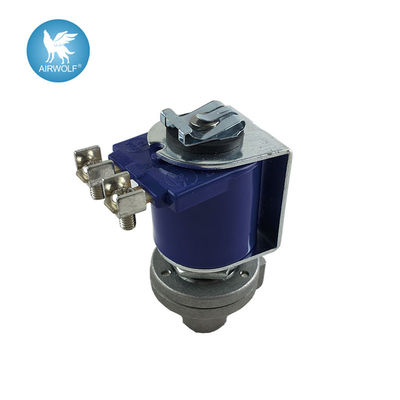

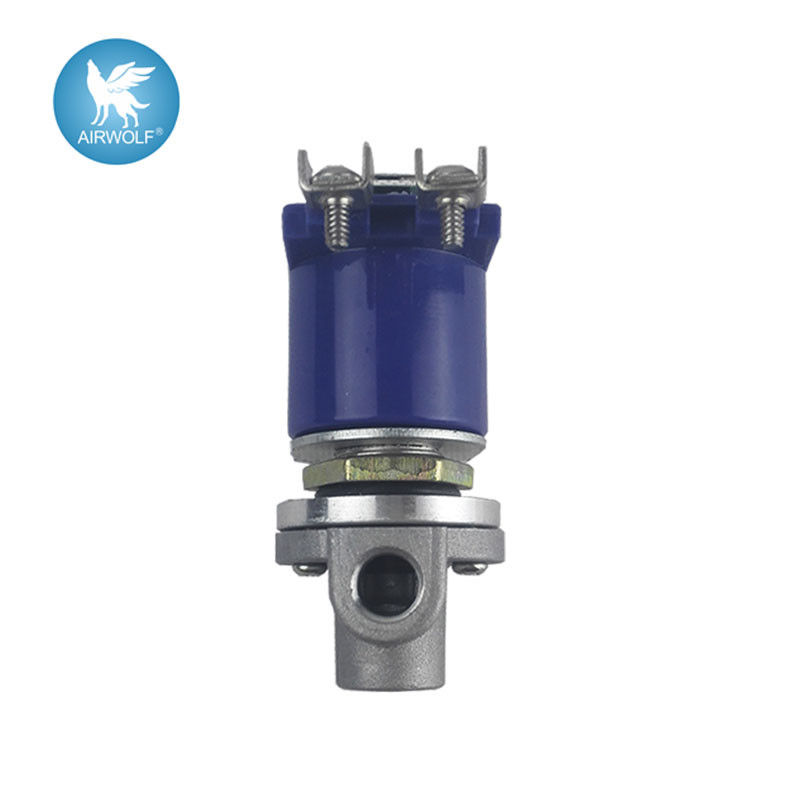

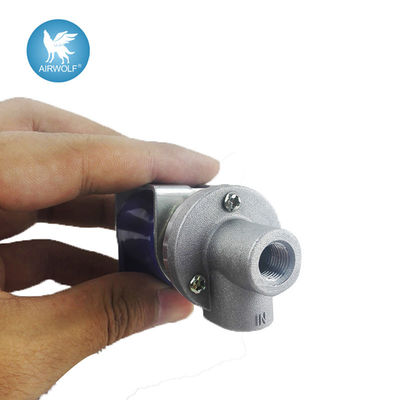

DC12V RCA3D2 Pilot Operated Pneumatic Valve

Product Details:

Place of Origin:	China
Brand Name:	FLY, AIRWOLF or others
Certification:	ISO 9001,CE
Model Number:	RCA3D2

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	price negotiable
Packaging Details:	carton
Delivery Time:	5 working days
Payment Terms:	T/T in advance,Western Union,Paypal,Credit card
Supply Ability:	2000 pcs/month

Contact Now

Detailed Product Description

Model:	RCA3D2	Port Size::	1/8" &NPT1/8"
Diaphragm Seal:	O Rings Nitrile - Bunan	Weight:	0.2kgs
Connection:	Spade	Voltage:	DC24V DC12V AC220V AC110V
Highlight:	RCA3D2 Pilot Operated Pneumatic Valve , FLY/AIRWOLF Pilot Operated Pneumatic Valve , DC12V Pilot Operated Pneumatic Valve

DC12V, DC24V RCA3D2 Remote Pilot Control Pulse Jet Valves 1/8” With Spade connection

Remote Pilot solenoid pilot valve RCA3D2 to control the dust collector valves

DC12V RCA3D2 Pilot Operated Pneumatic Valve

Suitable for:

All dust collector diaphragm valves.

Construction

Body:Aluminium(diecast)

Ferrule:304SS

Armature:430FR SS

Seals: Nitrile

Locknut: Mild steel zinc passivated

Screws:302 SS

Clips: Mild steel(plated)

Operation

Recommended

on time range:50-500ms

Recommended time

between pulses:1 minute or greater

Functionality
The pilot valve has the primary role of exhausting pressure air off the topside of a main
reverse pulse diaphragm valve, in a remote mounted position.
Flow Performance
The pilot valve orifice: 5 mm ( 3/16 " ) Flow Performance: 0.68 Cv / .58 kV
Pressure Range
Maximum Working Pressure: 860 kPa ( 125 psi )
Recommended Working Pressure:760 kPa ( 110 psi )
Minimum Working Pressure: 30 kPa ( 5 psi )
Temperature Rating
Working Temperature Range: -40 °C to 80 °C ( -40 °F to 176 ° F )
Fluid Media
Dry air or inert gas

Installation
Prepare pilot mounting hole in panel to Ø19.3/19.4 (Ø0.760"). Panel thickness must exceed 1.5mm (0.062"). Ensure
o-ring is in place before tightening locknut. Preferably, install pilot valves with solenoid on top. For reliable
operation, ensure supply voltage is within -10% and +15% of rated solenoid voltage. Replace components within 1 million cycles (refer to
Spare Parts)

Spare Parts:

K0380 Replacement seal,armature,spring&ferrule kit

K0384 As above in fluororubber

Drawings & dimension:

Power Consumption & Duty Cycle:

Power consumption per operating coil:
Voltage	Power (Watt)
110/120 VAC	19 W
220 V 50 Hz	11 W
24 V DC	24 W
200/220 VAC	28 W
12 V DC	24 W
24 V 50 Hz	12 W
100/110 VAC	19 W
48 V DC	25 W

For coils for FLY/AIRWOLF enclosure applications use B2 coil options below:

Voltage	Code
100/120V AC	530
220V 50 Hz	531
24V DC	532
200/220V AC	533
12V DC	534
24V 50 Hz	535
100/110V AC	536
48V DC	537

Competitive Advantage:

Our product features:	Our Services Guarantee:
1) Competitive price	1) Prompt respond (Reply with 24 hours)
2) Good quality	2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging,	3) Registration support.
4) Produce according to Customers’ instruction	4) Photos/videos are available during production.
5) None delay shipment	5) Loading inspection, and send loading photos before shipment.
