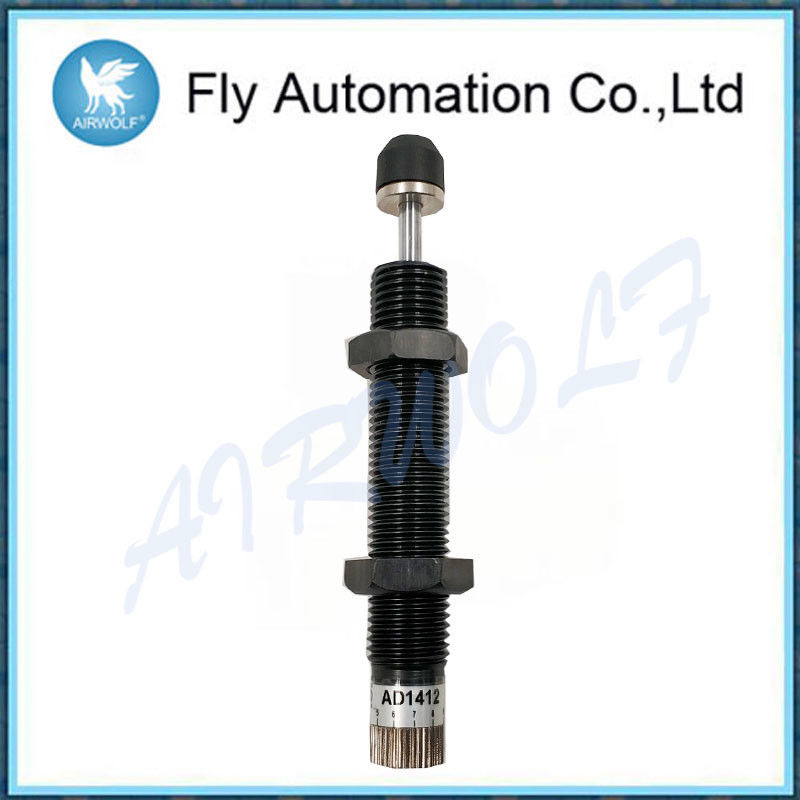

AD1412 Oil pressure buffer buffer AD Series Airtac adjustable with cap
Features
1.Adopt import oil seal:Automatically improve sealing performance with increasing pressure to prevent pistons from suffocating each other.
2.The outer tube is made of medium carbon steel:Medium carbon steel material hardness than ordinary aluminum alloy, impact resistance is stronger, better wear resistance, quality and durability.
3.High precision speed control knob:AD series adjustable pressure, through the bottom knob to achieve continuous and stable braking, pressure regulation precision, long life.
4.Precise uniform motion:The precision of machining can be improved by time continuous stability control.
Specification
| Model |
Stroke(mm) |
Every time Max.absorbing energy E (Nm) |
Hour Max. absorbing energy Ec (Nm/hr) |
Max.impact speed (m/s) |
Working temperature(℃) |
Weight/Kg |
| AD1412 |
12 |
20 |
24000 |
3.2 |
-10 ~+85 |
0.09 |
| AD1416 |
16 |
22 |
26400 |
3.2 |
-10 ~+85 |
0.09 |
| AD2020 |
20 |
39 |
30000 |
3.6 |
-10 ~+85 |
0.23 |
| AD2030 |
30 |
40 |
35000 |
3.6 |
-10 ~+85 |
0.245 |
| AD2525 |
25 |
85 |
51000 |
3.6 |
-10 ~+85 |
0.35 |
| AD2540 |
40 |
100 |
84000 |
3.6 |
-10 ~+85 |
0.455 |
| AD3625 |
25 |
150 |
90000 |
3.2 |
-10 ~+85 |
0.955 |
| AD3650 |
50 |
300 |
108000 |
3.2 |
-10 ~+85 |
1.1 |
Structure
Attention
1.It is strictly prohibited to knock or collide the shaft, which may easily lead to bending of the shaft. The surface of the shaft should not be covered with sewage or dirty oil, and the shaft must operate in a clean environment.Otherwise, it will increase the probability of product leakage and reduce the service life of the product.
2.It is strictly prohibited to spray paint on the pipe teeth and axis, otherwise it will affect the heat dissipation effect and oil leakage.
3.Do not burn: because the product is hydraulic oil, put into the fire will lead to fire or cause accidents.
4.It is strictly prohibited to use in vacuum and high pressure environment, otherwise it will damage the machine
After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
Warranty
All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
