| Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
 |
| Place of Origin: | China |
| Brand Name: | FESTO |
| Model Number: | B-1/4 |
| Minimum Order Quantity: | 10 PCS |
|---|---|
| Price: | EXW USD2-5 |
| Packaging Details: | Plastic bag, Carton |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 800 pcs per week |
| Order No: | 3569 | Type: | B-1/4 |
|---|---|---|---|
| Brand: | FESTO | GTIN: | 4052568000431 |
| Weight: | 15g | Size Of Pack: | 10 |
| High Light: | B-1/4 Blanking Plug,Air Cylinders Blanking Plug,Galvanised Steel Blanking Cap |
||
About product
1.Material:Aluminium,stainless steel.
2.With sealing ring,Sealing ring is supplied loose.
3.Variants recommended for production systems for manufacturing lithium-ion batteries.

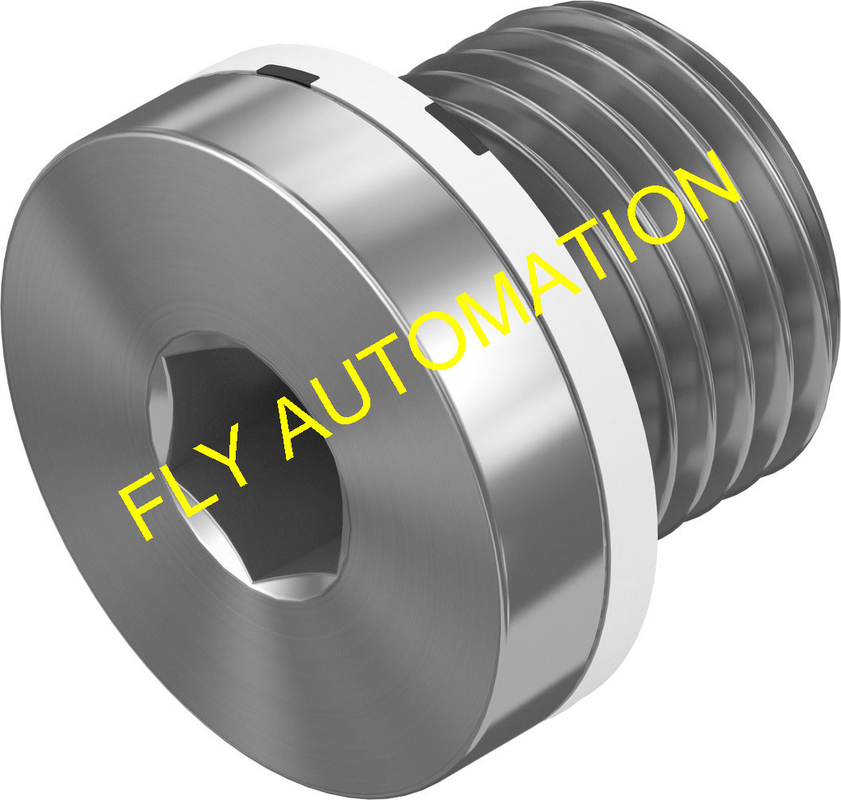

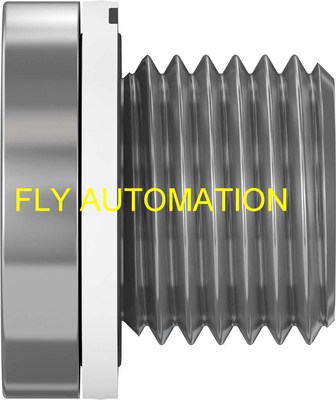

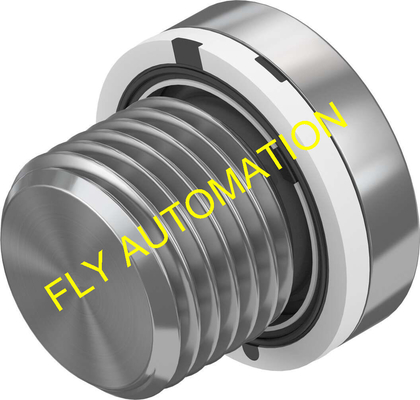

4.Blanking plug B With internal hex and sealing ring.
5.Standard series.Wide range of applications.
6.With a variety of combinations of different models, it has a high flexibility in various standard applications Activity.
Product Technical Data
| Size of pack | 10 |
| Conforms to standard | DIN 908 |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Nominal torque | 11 Nm |
| Tolerance for nominal tightening torque | ± 10% |
| Product weight | 15 g |
| Type of mounting | Internal hexagon, size 6 mm |
| Pneumatic connection, port 1 | Male thread G1/4 |
| Note on materials | RoHS-compliant |
| Material blanking plug | Galvanised steel |
| Material o-ring | PA TPE-U(PUR) |
Specifications for another
| Type | Order no | GTIN | Weihght | Price |
| B-1/4 | 3569 | 4052568000431 | 15 | USD2-5 |
| B-1/8 | 3568 | 4052568008352 | 7 | USD2-5 |
| B-3/8 | 3570 | 4052568008369 | 23 | USD2-5 |
| B-1/2 | 3571 | 4052568008376 | 43 | USD2-5 |
Product Dimensions
Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.
There are many specifications of connectors, price and delivery time. Welcome to inquire.
