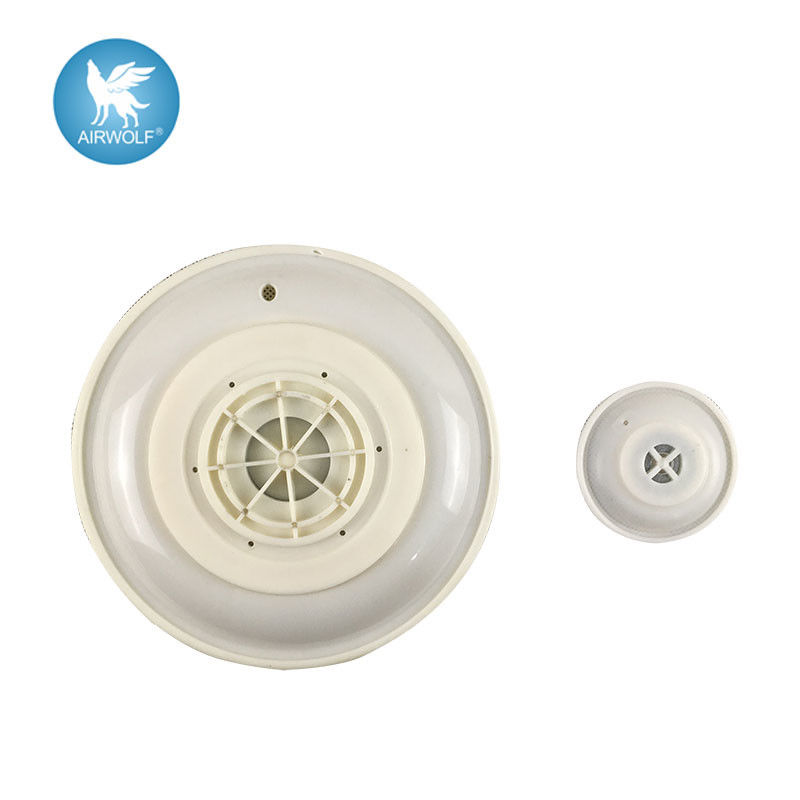

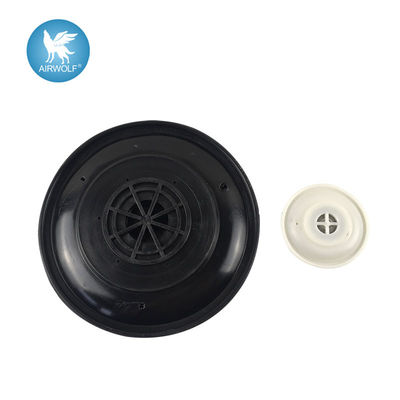

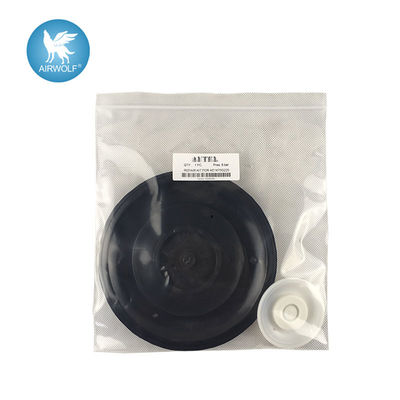

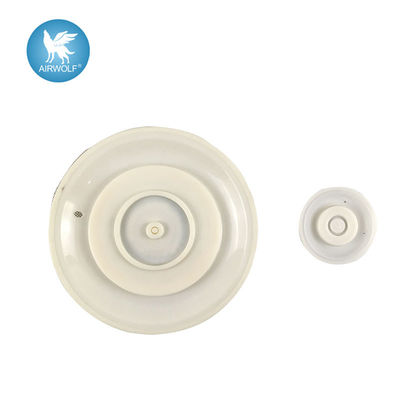

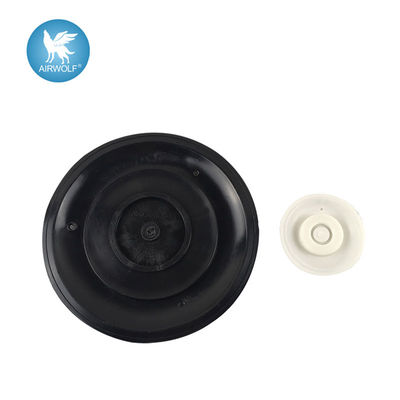

Autel M/D75 AE1475I10 AE1475I12 Pulse Valve Diaphragm

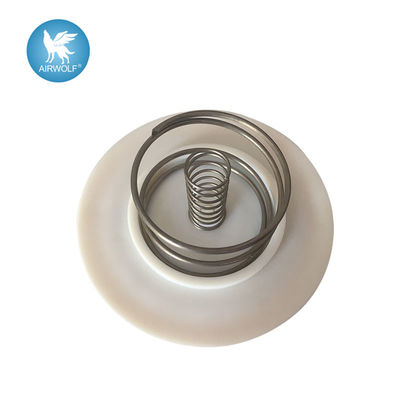

Autel M/D75 pulse valve Diaphragm AE1475I10 AE1475I12 with SS spring Membrane

Specification:

1. The diaphragm repair kits is for Italy Autel pulse jet valves AE1475I10 AE1475I12 AE2475I10 AE2475I12 AE1475P AE2475P

2. This repair kit has large air - outlet , so the air can get throgh very smoothly.

3. We use high quality material , the collection equipment efficiency can be improved , the energy loss also can be reduced.

4. Autel M/D75 repair kit has unique geometric diaphragm design , high speed from multiple diaphragm to reach the highest peak in an instant.

5. Its lifespan is about 1 million cycles.

6. Material:Plastic

7. Color:gray

Drawings:

Introduction
Electromagnetic pulse valve refers to the gas through the valve in instantaneous once a electrical signal received. Just like pulse phenomena, it has the change of the short fluctuation. Therefore it is calls the pulse valve. The Industry standard definition of electromagnetic pulse valve for electromagnetic pilot valve and pulse valve together, diaphragm valve controlled by electrical signals.

Working principle
Electrical pulse controller send input signals so that the electromagnetic armature attracts the moving bar. Unclose the balancing hole to release the pressure gas in the back cavity of diaphragm quickly; the pressure gas in the front cavity holds up the diaphragm to open the passage and the valve starts cleaning.
The pulse signal disappears and the spring of the armature works immediately to resume the moving bar so as to close the balancing hole. The pressure gas in the back cavity of the diaphragm and the spring work together to close the passage the valve stops cleaning.
The damping hole in the diaphragm functions to damp the airflow when the moving bar of armature holds up for balancing and to transit the air to the back cavity as soon as the balancing hole is shut to close the passage and stop cleaning.

Competitive Advantage:

Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.

After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

Warranty
All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.

Serves time
0:00 - 23:59
From Monday to Sunday
