Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
Place of Origin: | China |
Brand Name: | HKC |
Certification: | CE |
Model Number: | APL-210N APL-310N |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | Negotiation |
Packaging Details: | Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement |
Delivery Time: | within 1-30 working days after payment |
Payment Terms: | T/T in advance,Western Union,Paypal,Credit card |
Supply Ability: | 1000 pcs |
Applicable Load: | Relay, PLC | Cable Entries: | Two NPT1/2” |
---|---|---|---|
Ambient Temperature: | -20℃~ 80℃ | Position Indicator: | 0 ~ 90°(90°turn Free Join) Close:red Open:yellow |
High Light: | APL-210N limit switch pneumatic,APL-310N limit switch pneumatic |
Order Code
Features
1. Enclosure: Weatherproof IN67/NEMA4&4X (Standard) IP68 (Option)
2. Solid and flexible design & various options availabel
A. 3~4 additional switches
B. 8~16 points Terminal Strips
3. Bolts on viaual position indicator
4. Dual cable entries: 2x1/2 NPT(Standard)
A. M20. PG13.5, PF1/2", PT1/2". (Option)
5. Terminal Strips: 8 points (0.08-2.5 mm2)
6. Captive cover bolts
7. Easy mounting
A. NAMUR standard stainless steel shaft and bracket
Specification
Model Specification | APL-210N | APL-310N | APL-410N | APL-510N |
Enclosure | Weatherproof IP67/NEMA4&4X |
Weatherproof IP67/NEMA4&4X |
Weatherproof IP67/NEMA4&4X Explosionproof E EX d IIB T6 |
Weatherproof IP67/NEMA4&4X Explosionproof E EX d IIB T6 |
Cable entries | Two NPT1/2” | Two NPT1/2” | Two NPT3/4” | Two NPT3/4” |
Ambient temperature | -20℃~ 80℃ | -20℃~ 80℃ | -20℃~ 80℃ | -20℃~ 80℃ |
Terminal strips | 8 points (0.08-2.5mm²) | 8 points (0.08-2.5mm²) | 8 points (0.08-2.5mm²) | 8 points (0.08-2.5mm²) |
Position indicator | 0 ~ 90°(90°turn free join) close: red open: yellow | 0 ~ 90°(90°turn free join) close: red open: yellow | 0 ~ 90°(90°turn free join) close: red open: yellow | 0 ~ 90°(90°turn free join) close: red open: yellow |
Switches | Mechanical switch x2 proximity sensor x2 |
Mechanical switch x2 proximity sensor x2 |
Mechanical switch x2 proximity sensor x2 |
Mechanical switch x2 proximity sensor x2 |
Painting | Chromate Polyester podwer coating(black) |
Chromate Polyester podwer coating(black) |
Chromate Polyester podwer coating(black) |
Chromate Polyester podwer coating(black) |
Competitive Advantage
Our product features | Our Services Guarantee: |
1) Competitive price | 1) Prompt respond (Reply with 24 hours) |
2) Good quality | 2) Free Samples (Customer pay for the delivery cost) |
3) Professional Packaging | 3) Registration support. |
4) Produce according to Customers’ instruction | 4) Photos/videos are available during production. |
5) None delay shipment | 5) Loading inspection, and send loading photos before shipment. |
After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
Structure
Dimension

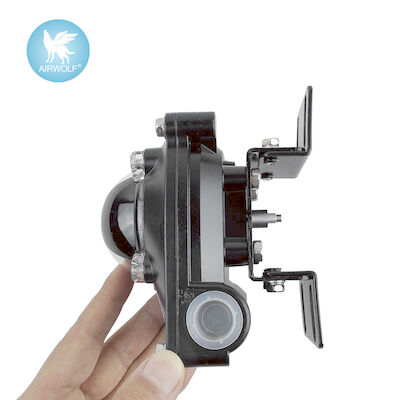

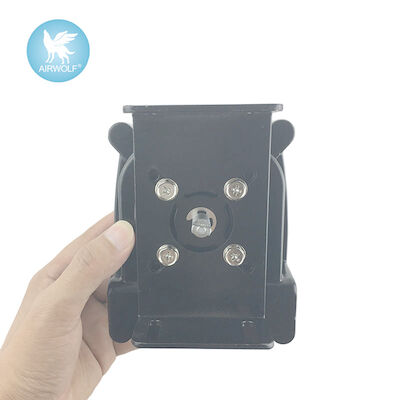

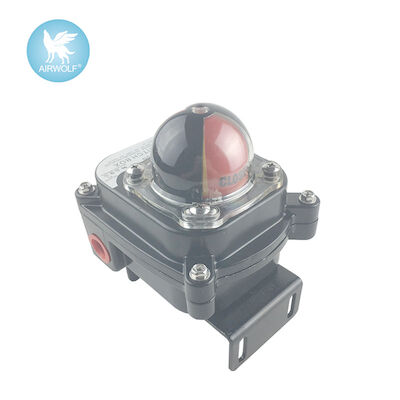

Product Show

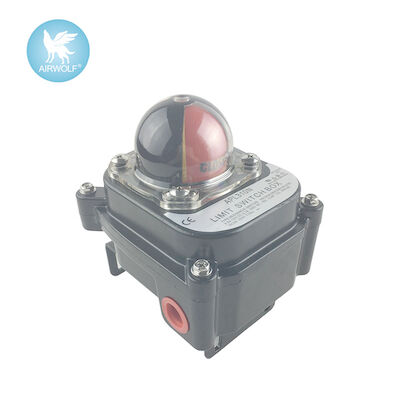

APL-310N

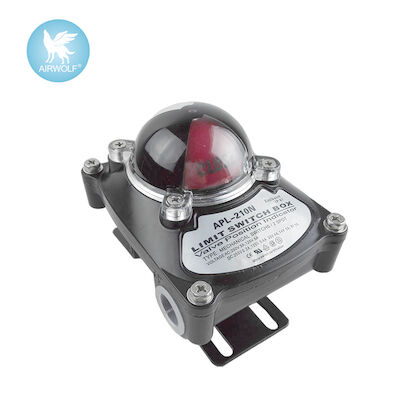

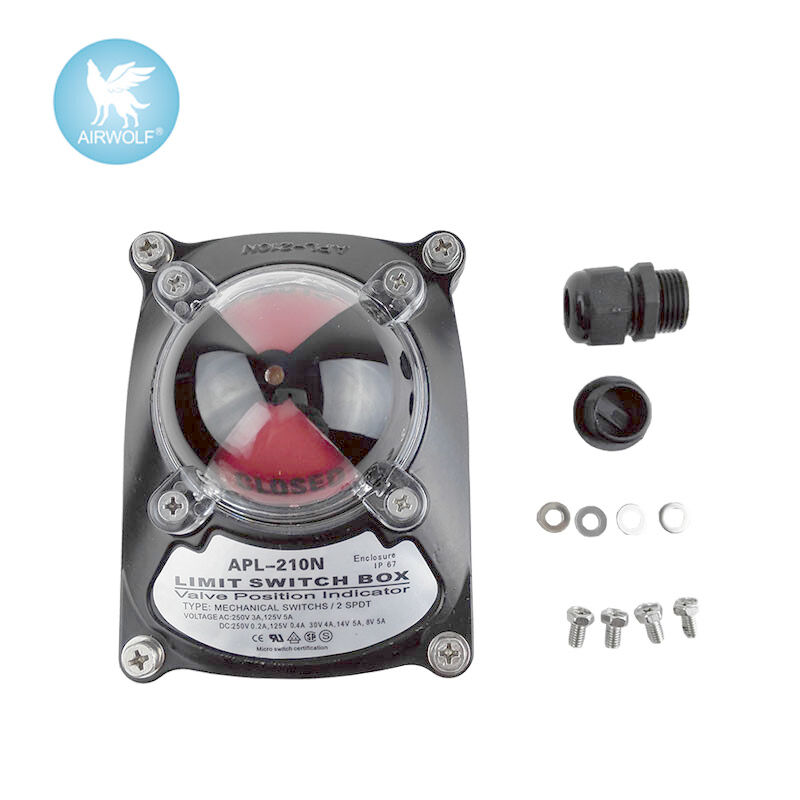

APL-210N
Description
1.Powder Coated AlumInlum Swltchbox to IP67 fltted with 2 x SPDT swltches for Indlcatlon of fully open and fully closed posltlons.
2.Solid and compact design with high visibility beacon indicator,Captlve cover bolts are safely retalned durlng Installatlonand maintenance,
The sprIng loaded spllned cams are easlly adjustable with no toolsrequlred.
3.Dual cable entrles are provlded
The swltchbox ls mounted to the actuator uslng a NAMUR standardstalnless steel mountlng bracket.
Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.
FAQ
1. When your company establish?
YIKANG AUTOMATION Was established in 2010, we have been working in agrochemical field for about 26 years, we have a professional production of process, committed to providing customers with the most satisfactory service.
