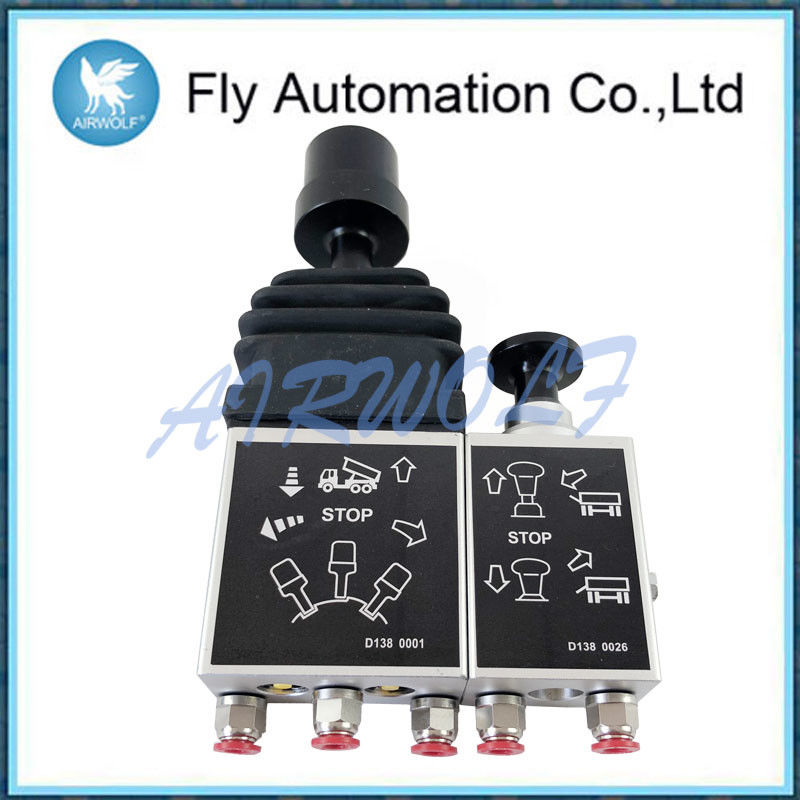

Aluminum Alloy 14750430H Dump Truck Controls

Aluminum Alloy 14750430H double acting proportional air control tipping valve

Product Features:

1.Body Material: Aluminum
2.Seal Material: HNBR
3.Working Pressure: 5-10 Bar
4.Ambient temperature: -30℃-80℃
5.Automatically locked in stop and fall position
6.Transposition clearly
7.Able to coordinate with the Pneumatic control valve
8. Small Operating force
9.Simple operation
10.Easy to install
11.Long service life

Make sure that air tubes:
1.are not too close to sharp objects.
2.are clear from exhaust and compressor lines.
3.can not get kinked.
4.are clear from moving parts.
5.are not too long.

Description

1.Power: Hydraulic
2.Material: Aluminum
3.Automatically locked in stop and fall position
4. Working medium:Air
5.Operating pressure(Bar): up to 12
6.Working temperature: -30℃-80℃
7.Nominal diameter(mm) 4
8. Weight: 1.6kg

Assembly instruction
1.Mount washer plus self locking nut on the threaded ends.
2.Fit the O-ring in the extra section and shift the first section on thethreaded ends .
3.Fit the threaded ends into the main section and tigthen themwith a adjustable pipe wrench
4.Fit this screw with some hydraulic sealant in the end section .
5.Fit other sections in the same way
6.Remove internal hexagon screw M5 frommain section to open the P-line tothe extra section
