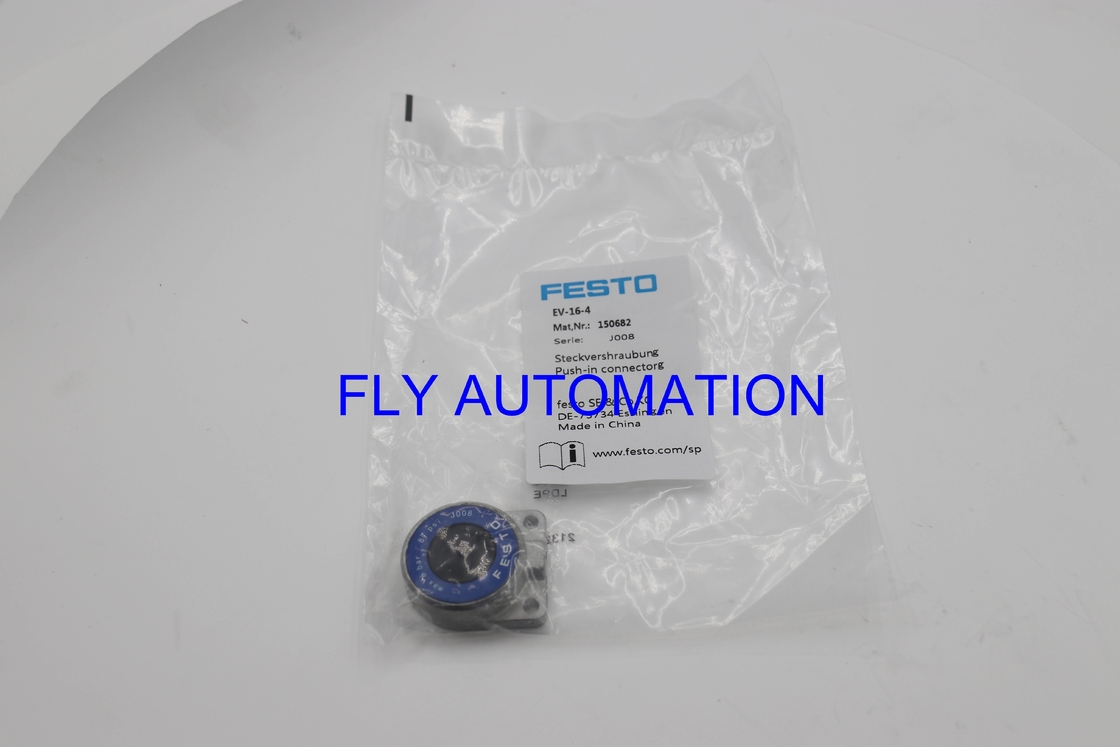

Aluminium Alloy Festo Clamping Module EV-16-4 150682 GTIN4052568010331

Aluminium Alloy Festo Clamping Module EV-16-4 150682 GTIN4052568010331

  • Aluminium Alloy Festo Clamping Module EV-16-4 150682 GTIN4052568010331
  • Aluminium Alloy Festo Clamping Module EV-16-4 150682 GTIN4052568010331
Aluminium Alloy Festo Clamping Module EV-16-4 150682 GTIN4052568010331
Product Details:
Place of Origin: China
Brand Name: FESTO
Model Number: EV-16-4
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: EXW USD30-40
Packaging Details: Plastic bag, Carton
Delivery Time: 7-10working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 pcs per month
Contact Now
Detailed Product Description
Type: EV-16-4 Part No: 150682
Brand: FESTO Weight: 15 G
Stroke: 4mm Pneumatic Connection: M3
Highlight:

Aluminium Alloy Festo Clamping Module

,

EV-16-4 Clamping Module

FESTO Clamping module EV-16-4 150682 GTIN4052568010331

About product

1.Material: Wrought aluminium alloy.

2.Foot mounting HBEV for clamping module, rectangular.

3.Compact rodless cylinder with diaphragm.

4.Single-acting, with reset function.

5.Flat design.



Technical Data

Stroke 4mm
Clamping surface Diameter 16
Mounting position optional
Mode of operation Single-acting
Symbol 00991208
Operating pressure 0.6 MPa
Operating pressure 6 bar
Operating pressure 87 psi
Operating medium Compressed air to ISO 8573-1:2010 [7:-:-]
LABS (PWIS) conformity VDMA24364-B1/B2-L
Ambient temperature -10°C-40°C
Product weight 15 g
Type of mounting With through-hole
Pneumatic connection M3
Material housing Die-cast aluminium
Material membrane TPE-U(PU)



Ordering data – Clamping module, round

Aluminium Alloy Festo Clamping Module EV-16-4 150682 GTIN4052568010331



A wide range of products with excellent prices. Please hurry to me!
