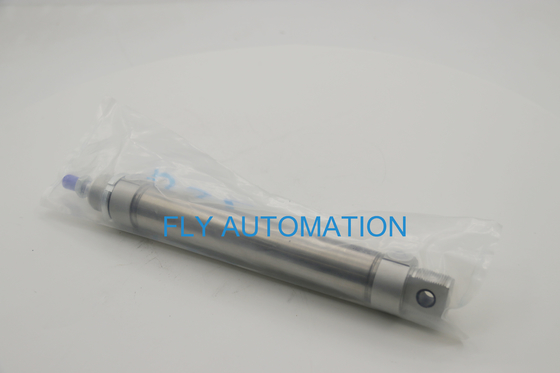

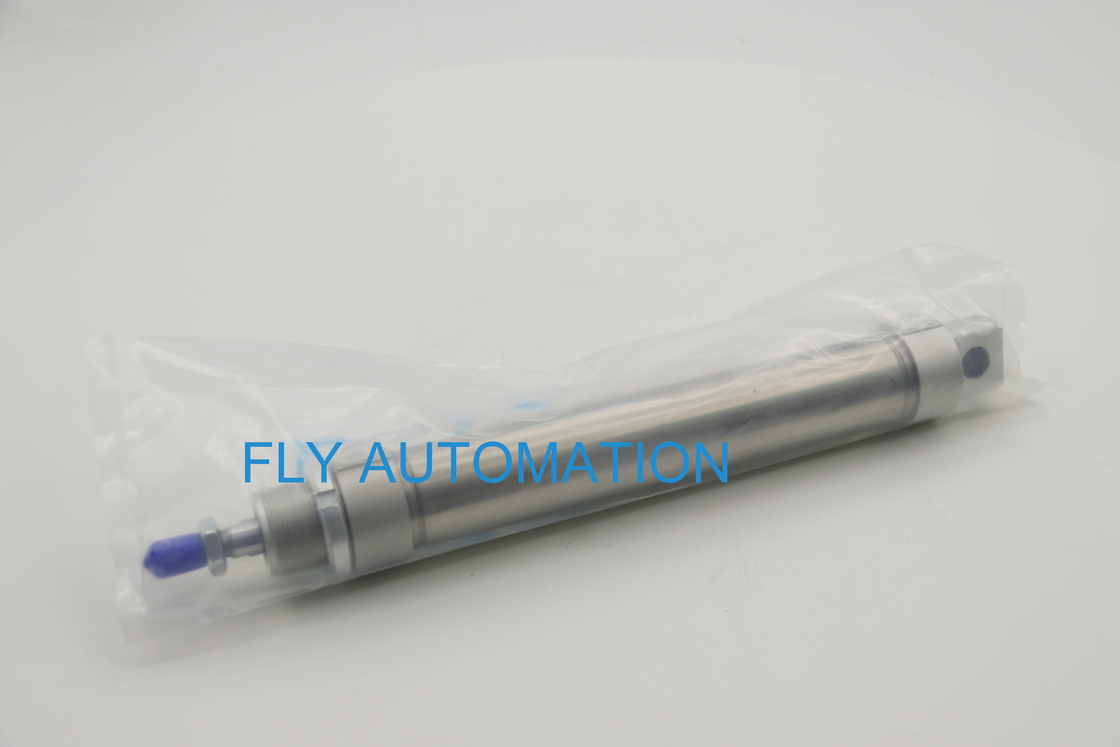

Alloy Steel FESTO Round Cylinder DSNU-32-125-PPV-A 196025 Pneumatic Air Cylinders

Product Details:

Brand Name:	FESTO
Model Number:	DSNU-32-125-PPV-A

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	EXW USD25-35
Packaging Details:	plastic bag, carton，OPP bag
Delivery Time:	10-15 working days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	1800 pcs per month

Contact Now

Detailed Product Description

Type:	DSNU-32-125-PPV-A	Part No:	196025
Brand:	FESTO	Product Weight:	565 G
Pneumatic Connection:	G1/8	Material Piston Rod:	High-alloy Steel
High Light:	Alloy Steel FESTO Round Cylinder , 196025 Pneumatic Air Cylinders , DSNU-32-125-PPV-A

FESTO Round cylinder DSNU-32-125-PPV-A 196025 Pneumatic Air Cylinders

Name: Alloy Steel FESTO Round Cylinder DSNU-32-125-PPV-A 196025 Pneumatic Air Cylinders
Brand: FESTO
SKU: DSNU-32-125-PPV-A
Price: 25 USD
Availability: InStock
Rating: 4.9 (102 reviews)

About product

Cylinder barrel made of stainless steel

Bearing and end caps made of wrought aluminium alloy

Symbol:00991235

Pneumatic connection:G1/8

Material cover:Wrought aluminium alloy

Technical Data

Stroke	125 mm
Piston diameter	32 mm
Piston rod thread	M10x1.25
Cushioning	Pneumatic cushioning, adjustable at both ends
Mounting position	optional
Design	Piston Piston rod Cylinder barrel
Position detection	Via proximity switch
Symbol	00991235
Mode of operation	Double-acting
Corrosion resistance class CRC	2 - Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Cleanroom class	Class 6 according to ISO 14644-1
Ambient temperature	-20°C-80°C
Cushioning length	14 mm
Moving mass	234 g
Product weight	565 g
Type of mounting	With accessories
Pneumatic connection	G1/8
Note on materials	RoHS-compliant
Material cover	Wrought aluminium alloy
Material seals	NBR TPE-U(PU)
Material piston rod	High-alloy steel
Material cylinder barrel	High-alloy stainless steel

Peripherals overview

Delivery

1. If the products we have in store, we will send it out ASAP after payment.

2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.

3. Also we can send by your delivery acount if you want.

4. We have a variety of ways to send goods, usually DHL, Fedex, TNT will be normal ways. If you require use of a courier, we can do it.

There are so many models,please contact with me.
