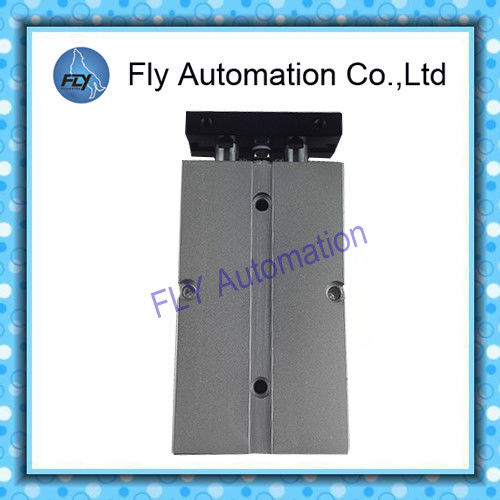

Airtac High Speed Twin Rod Pneumatic Air Cylinders TN - 20x50- S With Magnet
Ordering Code: TN-20x50S, Any other types please contact freely.
Order code
Note:
1) TN series are alll with magnet
2) When the thread is standard, the code is blank
Specifications
| Bore size(mm) |
10 |
16 |
20 |
25 |
32 |
| Acting type |
Double acting |
| Fluid |
Air (to be filtered by 40 um filter element) |
| Operating pressure |
0.1~1.0MPa(15~145psi)(1.0~10.0bar) |
| Proof pressure |
1.5MPa(215psi)(15bar) |
| Temperature °c |
-20~70 |
| Speed range mm/s |
30~500 |
| Adjustable stroke mm |
-10~0 |
| Cushion type |
Bumper |
| Non-rotating tolerance |
±0.4° |
±0.3° |
| Port size |
M5x0.8 |
1/8" |
Product Features
1.Enterprises standard is implemented.
2.Embeded installation and fixation mode saves the installation space.
3. Mounting holes on three sides facilitates multi-position mounting.
4.It is good resistance to bending and twisting moments.
5.Standard configuration of this series has magnet and the type without magnet is not available.
6.Bumper in front of the barrel can adjust the stroke of cylinder and relieve impact.
Installation Usage
1.When load changes in the work, the cylinder with abundant output capacity shall be ed.
2.The medium used by cylinder shall be filtered to 40μm or below.
3.Necessary protection measure shall be taken in the environment with higher humidity, much dust or water drops, oil dust and welding dregs.
4.Dirty substances in the pipe must be eliminated before cylinder is connected with pipeline to prevent the entrance of particles into the cylinder.
5.As both the front cover and piston are short, too large stroke can not be ed.
6.Relative cylinder with high temperature resistance or corrosion resistance shall be chosen under the condition of high temperature or corrosion.
7.The cylinder shall avoid redial load in operation to maintain the normal and extend service life.
8.Anti-freezing measure shall be adopted under low temperature environment to prevent moisture freezing.
9.If the cylinder is dismantled and stored for a long time, please conduct anti-rust treatment to the surface. Anti-dust cap shall be ed into the inlet and outlet ports. As the precision of the manufacture and guide is high, Please do not dismantle the fixed block or cylinder cover.
Material of the major parts
Structures
Product show
Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.
Quality Standards
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance, according to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise objections.
Samples
You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.
After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
