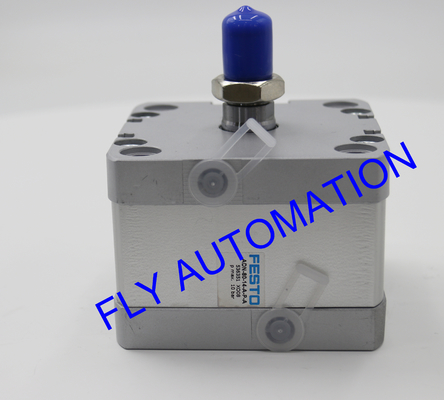

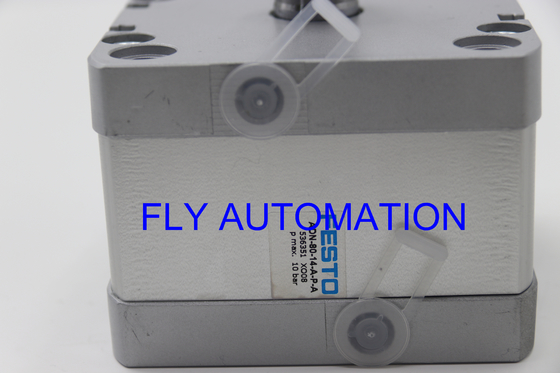

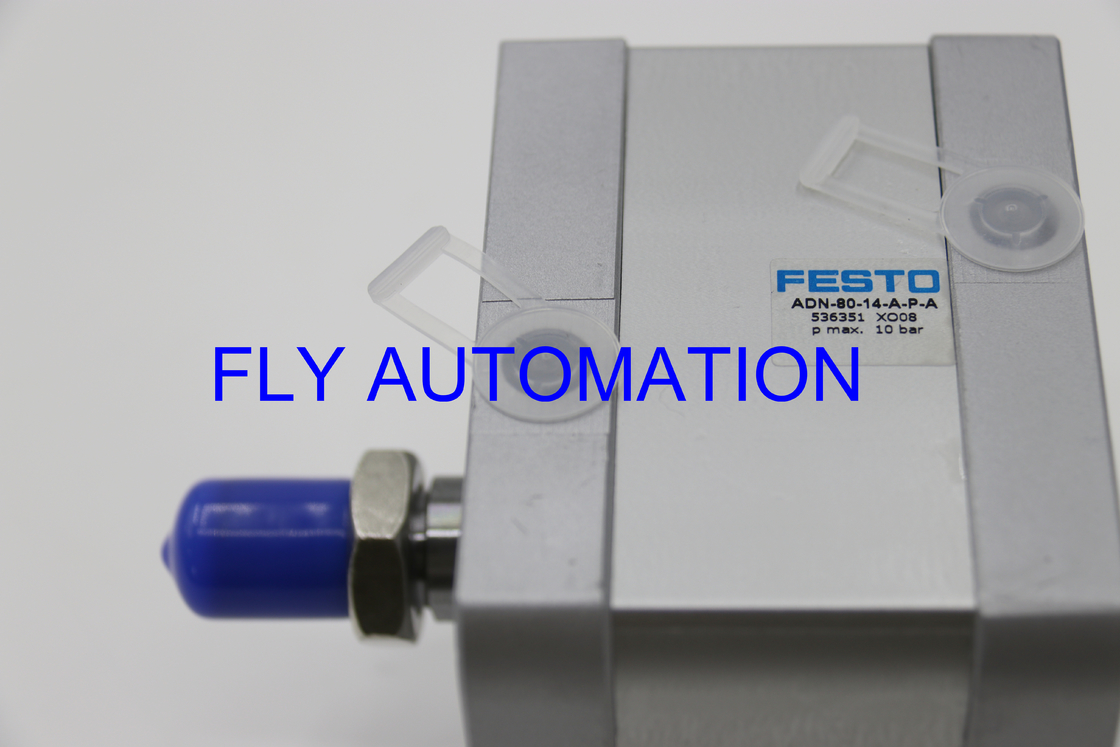

ADN-80-14 -A-P-A 536351 Pneumatic Air Cylinders Festo Compact Cylinder

ADN-80-14 -A-P-A 536351 Pneumatic Air Cylinders Festo Compact Cylinder

  • ADN-80-14 -A-P-A 536351 Pneumatic Air Cylinders Festo Compact Cylinder
  • ADN-80-14 -A-P-A 536351 Pneumatic Air Cylinders Festo Compact Cylinder
  • ADN-80-14 -A-P-A 536351 Pneumatic Air Cylinders Festo Compact Cylinder
ADN-80-14 -A-P-A 536351 Pneumatic Air Cylinders Festo Compact Cylinder
Product Details:
Place of Origin: China
Brand Name: FESTO
Model Number: ADN-80-14 -A-P-A
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: EXW USD100-120
Packaging Details: Plastic bag, Carton
Delivery Time: 5-7working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 300 pcs per month
Contact Now
Detailed Product Description
Type: ADN-80-14 -A-P-A Part No: 536351
Brand: FESTO Piston Diameter: 80 Mm
Conforms To Standard: ISO 21287 Weight: 1220 G
Highlight:

80mm Pneumatic Air Cylinders

,

ISO 21287 Festo Compact Cylinder

,

Piston Rod Double Acting Air Cylinder

FESTO Compact cylinder,ADN-80-14 -A-P-A,536351

About product

1.Easy to mount with a comprehensive range of mounting accessories for just about every type of installation.

2.Highly flexible thanks to the wide range of variants.

3.Contactless position sensing using proximity sensors.

4.Optimised manufacturing methods, patented technology and more than 40 years of experience in the field of cylinders make Festo and ADN/AEN a great team.

5.Integrated cushioning for absorbing residual energy.

6.Long service life thanks to exceptional cushioning characteristics and minimal friction factors.

7.Colour:silver



Technical Data

Stroke 1 mm ... 500 mm
Piston diameter 80 mm
Mounting position optional
Conforms to standard ISO 21287
Design Piston Piston rod Profile barrel
Position detection Via proximity switch
Operating pressure 0.06 MPa ... 1 MPa
Operating pressure 0.6 bar ... 10 bar
Mode of operation Double-acting
CE mark (see declaration of conformity) To EU Explosion Protection Directive (ATEX)
CE marking (see declaration of conformity) To UK EX instructions
ATEX category gas II 2G
ATEX category dust II 2D
Explosion ignition protection type for gas Ex h IIC T4 Gb
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
LABS (PWIS) conformity VDMA24364-B1/B2-L VDMA24364 zone III
Ambient temperature -40°C-120°C
Basic weight for 0 mm stroke 1121 g
Additional weight per 10 mm stroke 79 g
Pneumatic connection G1/8
Note on materials RoHS-compliant
Material collar screws Steel
Material piston rod High-alloy steel
Material cylinder barrel Smooth-anodised wrought aluminium alloy



Technical data – Basic version and variants

ADN-80-14 -A-P-A 536351 Pneumatic Air Cylinders Festo Compact Cylinder

There are many models. Please hurry to me!
