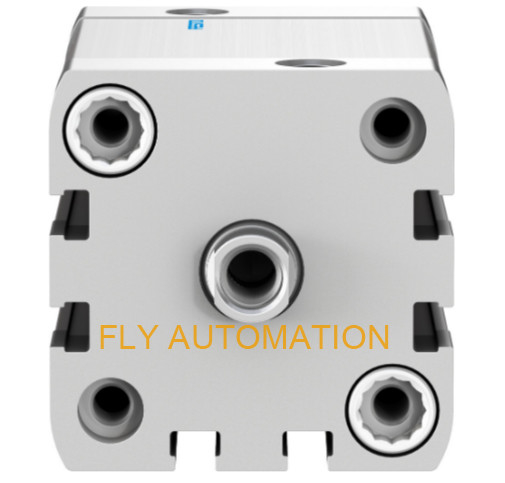

ADN-40-40-I-P-A 536305 Pneumatic FESTO Compact Cylinder GTIN4052568171100

ADN-40-40-I-P-A 536305 Pneumatic FESTO Compact Cylinder GTIN4052568171100

  • ADN-40-40-I-P-A 536305 Pneumatic FESTO Compact Cylinder GTIN4052568171100
  • ADN-40-40-I-P-A 536305 Pneumatic FESTO Compact Cylinder GTIN4052568171100
ADN-40-40-I-P-A 536305 Pneumatic FESTO Compact Cylinder GTIN4052568171100
Product Details:
Place of Origin: China
Brand Name: FESTO
Model Number: ADN-40-40-I-P-A
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: EXW USD50-60
Packaging Details: plastic bag, carton，OPP bag
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 100 pcs per month
Contact Now
Detailed Product Description
Part No: 536305 Brand: FESTO
Type: ADN-40-40-I-P-A GTIN: 4052568171100
Weight: 494g Pneumatic Connection: G1/8
Highlight:

Pneumatic FESTO Compact Cylinder

,

FESTO Compact Cylinder 536305

,

G1/8 Pneumatic Air Cylinders

FESTO Compact cylinder ADN-40-40-I-P-A 536305 GTIN4052568171100 Pneumatic Air Cylinders

About product

1.Compact machine design saves space.

2.Easy to install in narrow space.

3.Extremely durable due to low wear materials.

4.Easy to identify and re order with FESTO accessories.

5.The materials used and the precise manufacturing process make it durable.

6.Long service life.



Technical Data

Stroke 40 mm
Piston diameter 40mm
Piston rod thread M8
Cushioning Elastic cushioning rings/plates at both ends
Mounting position optional
Conforms to standard ISO 21287
Piston-rod end Female thread
Position detection Via proximity switch
Symbol 00991217
Variants Piston rod at one end
Mode of operation Double-acting
Corrosion resistance class CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Ambient temperature -20°C-80°C
Basic weight for 0 mm stroke 346g
Additional weight per 10 mm stroke 37g
Pneumatic connection G1/8
Note on materials RoHS-compliant
Material cover Aluminium Anodised
Material seals TPE-U(PUR)
Material piston rod High-alloy steel
Material cylinder barrel Wrought aluminium alloy Smooth anodised





Another stroke as below

Type Order no GTIN Price
ADN-40-5-I-P-A 536299 4052568171063 USD50-60
ADN-40-10-I-P-A 536300 4052568005535 USD50-60
ADN-40-15-I-P-A 536301 4052568171070 USD50-60
ADN-40-20-I-P-A 536302 4052568171087 USD50-60
ADN-40-25-I-P-A 536303 4052568171094 USD50-60
ADN-40-30-I-P-A 536304 4052568005542 USD50-60
ADN-40-40-I-P-A 536305 4052568171100 USD50-60
ADN-40-50-I-P-A 536306 4052568171117 USD50-60
ADN-40-60-I-P-A 536307 4052568171124 USD50-60
ADN-40-80-I-P-A 536308 4052568171131 USD50-60



Attention

1,Before you endorse the parcel, please do open the package, and check out whether the items are damaged during the shipping process.
If so, please do refuse to sign for the parcel, the courier will send back the package to our company. Otherwise we are not responsible for this...
2,Any order is welcome; we will give discounts and combined shipping costs for you if you order more or mix order. If you have any questions,
please feel free to contact us.



There are so many kinds. Hurry to call me!
