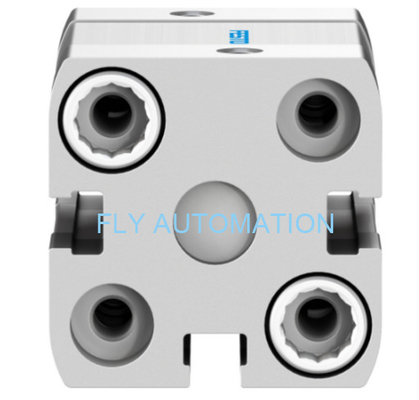

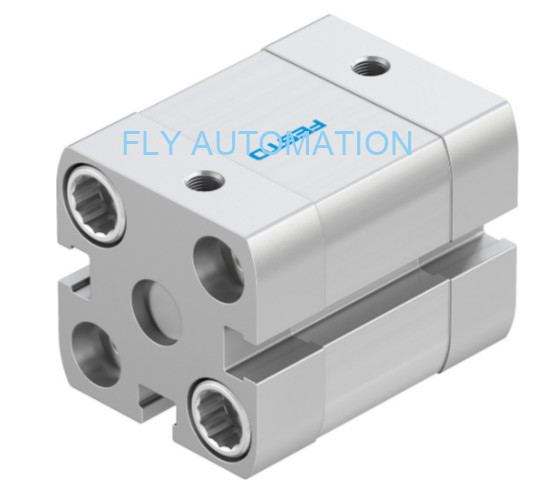

ADN-20-10-I-P-A 536243 M6 Compact Pneumatic Air Cylinders GTIN4052568087487

ADN-20-10-I-P-A 536243 M6 Compact Pneumatic Air Cylinders GTIN4052568087487

  • ADN-20-10-I-P-A 536243 M6 Compact Pneumatic Air Cylinders GTIN4052568087487
  • ADN-20-10-I-P-A 536243 M6 Compact Pneumatic Air Cylinders GTIN4052568087487
ADN-20-10-I-P-A 536243 M6 Compact Pneumatic Air Cylinders GTIN4052568087487
Product Details:
Place of Origin: China
Brand Name: FESTO
Model Number: ADN-20-10-I-P-A
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: EXW USD25-35
Packaging Details: plastic bag, carton,OPP bag
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 100 pcs per month
Contact Now
Detailed Product Description
Brand: FESTO Part No: 536243
Type: ADN-20-10-I-P-A GTIN: 4052568087487
Ambient Temperature: -20°C-80°C Pneumatic Connection: M5
High Light:

M6 Pneumatic Air Cylinders

,

536243 Pneumatic Air Cylinders

,

Pneumatic Compact Air Cylinder

FESTO Compact cylinder ADN-20-10-I-P-A 536243 GTIN4052568087487 Pneumatic Air Cylinders

About product

1.Integrated cushioning for absorbing residual energy.

2.Long service life thanks to exceptional cushioning characteristics and minimal friction factors.

3.Easy to mount with a comprehensive range of mounting accessories for just about every type of installation.

4.Highly flexible thanks to the wide range of variants.

5.Contactless position sensing using proximity sensors.



Technical Data

Stroke 10 mm
Piston diameter 20 mm
Piston rod thread M6
Cushioning Elastic cushioning rings/plates at both ends
Mounting position optional
Conforms to standard ISO 21287
Piston-rod end Female thread
Position detection Via proximity switch
Symbol 00991217
Variants Piston rod at one end
Mode of operation Double-acting
Corrosion resistance class CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Ambient temperature -20°C-80°C
Basic weight for 0 mm stroke 79 g
Additional weight per 10 mm stroke 14 g
Pneumatic connection M5
Note on materials RoHS-compliant
Material cover Aluminium Anodised
Material seals TPE-U(PUR)
Material piston rod High-alloy steel
Material cylinder barrel Wrought aluminium alloy Smooth anodised



Another stroke as below

Type Order no GTIN Price
ADN-20-5-I-P-A 536242 4052568087470 USD25-35
ADN-20-10-I-P-A 536243 4052568087487 USD25-35
ADN-20-15-I-P-A 536244 4052568087494 USD25-35
ADN-20-20-I-P-A 536245 4052568087500 USD25-35
ADN-20-25-I-P-A 536246 4052568087517 USD25-35
ADN-20-30-I-P-A 536247 4052568087524 USD25-35
ADN-20-40-I-P-A 536248 4052568087531 USD25-35
ADN-20-50-I-P-A 536249 4052568087548 USD25-35
ADN-20-60-I-P-A 536362 4052568087869 USD25-35



Max. lateral load Fq as a function of projection x

ADN-20-10-I-P-A 536243 M6 Compact Pneumatic Air Cylinders GTIN4052568087487



There are so many kinds. Hurry to call me!
