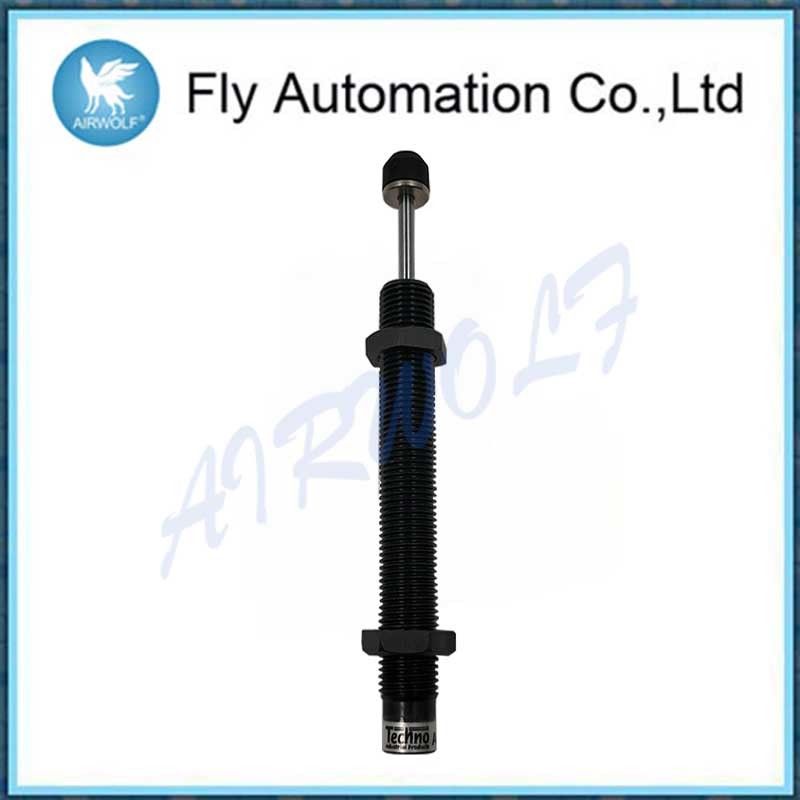

Name: AC Series Nonadjustable Pneumatic Air Cylinders Hydraulic Shock Absorber AC1425-2
Brand: FLY AUTOMATION
SKU: AC1425-2
Price: 1,150.60 USD
Availability: InStock

Home Products Pneumatic Air Cylinders

AC Series Nonadjustable Pneumatic Air Cylinders Hydraulic Shock Absorber AC1425-2

Product Details:

Place of Origin:	China
Brand Name:	FLY
Certification:	CE
Model Number:	AC1425-2

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	Negotiation
Packaging Details:	Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Delivery Time:	within 1-30 working days after payment
Payment Terms:	T/T , Western Union
Supply Ability:	1000 pcs

Contact Now

Detailed Product Description

Model Code:	AC1425-2	Color:	Black
Body Material:	Iron	Name:	Shock Absorber
Stroke:	25 Mm
Highlight:	pneumatic actuator cylinder , smc pneumatic cylinder

AC Series Nonadjustable Hydraulic Shock Absorber AC1425-2 middle impact speed

Description

The AC series Self-compensation Shock absorber can absorb the kineticobject energy as soon as possible. It converts kinetic energy into thermal energy and outputs it to the air to avoid the mechanical damage and enhance the safety of mechanical operation, prolong the service life of the machine also.

Application

Mainly used in the fields of manipulator, pneumatic cylinder, Conveyor Systems, Factory Automation, medical instruments etc.

Ordering Code

AC Series Nonadjustable Pneumatic Air Cylinders Hydraulic Shock Absorber AC1425-2

Principle
When piston rod is impacted, it will drive piston to press oil in inner tube. Oil will be pressed out through orifice holes of inner tube. At the same time, the oil returns to inner tube through returning hole of inner tube.

After outside force vanishes, spring makes piston rod immediately return to its position. Oil will return to inner tube through check valve. Then shock absorber will return to be ready position waiting for next action.

AC Series Nonadjustable Pneumatic Air Cylinders Hydraulic Shock Absorber AC1425-2

Feature

Model	Stroke (mm)	Max. Impact Speed (m/s)
AC1410-2	10	2
AC1420-2	20	2
AC1425-2	25	2
AC2020-2	20	2
AC2030-2	30	2
AC2050-2	50	2
AC2525-2	25	2
AC2550-2	50	2
AC3660-2	60	2

Attention

1. It is strictly prohibited to knock or collide the shaft, which may easily lead to bending of the shaft.
2. The surface of the shaft should not be covered with sewage or dirty oil, and the shaft must operate in a clean environment. Otherwise, it will increase the probability of product leakage and reduce the service life of the product.
3. It is strictly prohibited to spray paint on the pipe teeth and axis, otherwise it will affect the heat dissipation effect and oil leakage.

Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. We have a variety of ways to deliver goods, usually DHL, Fedex, TNL will be normal ways, If you require use of a courier, we can do it.
4. Also we can send by your delivery acount if you want.

After-sale service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

Serves time
0:00 - 23:59
From Monday to Sunday
