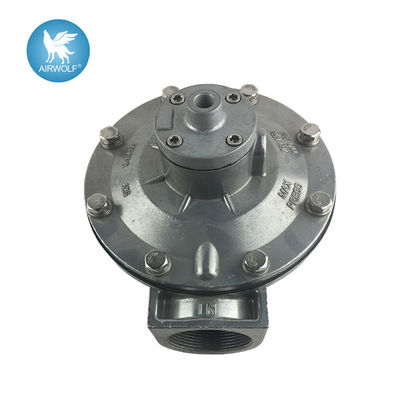

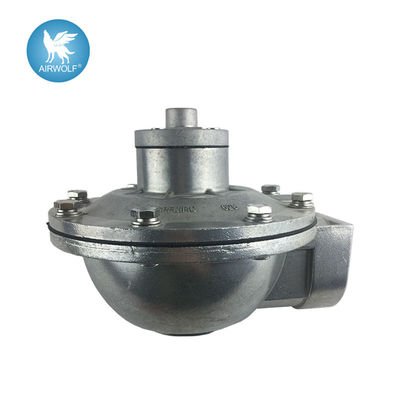

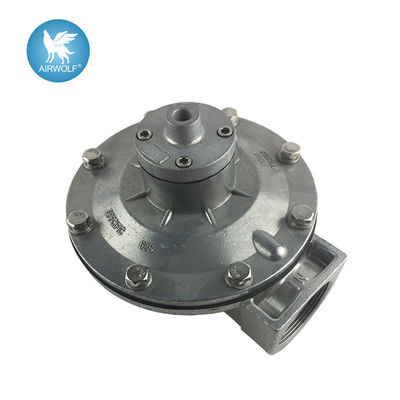

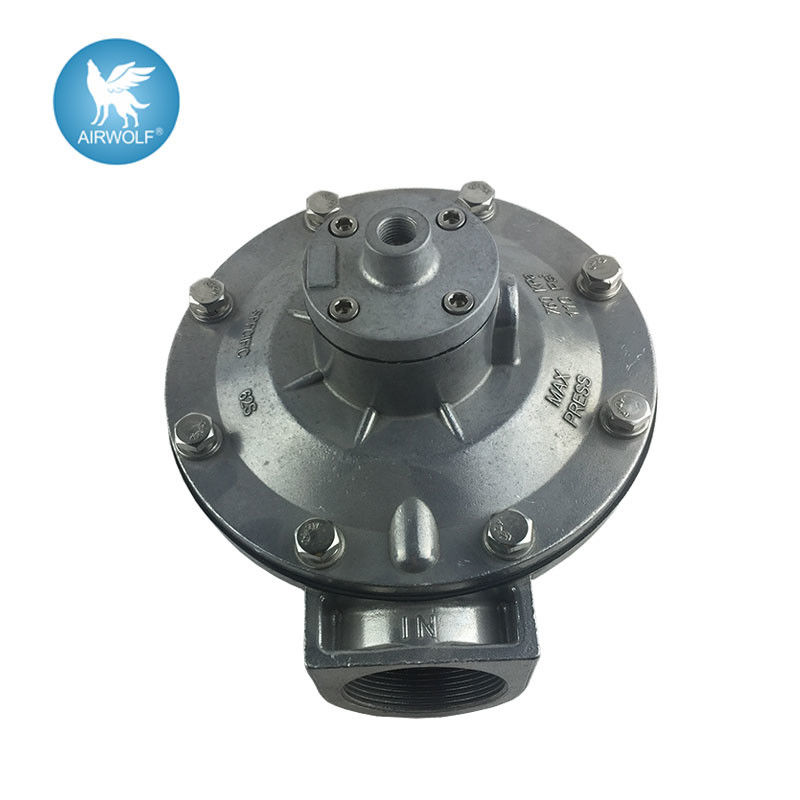

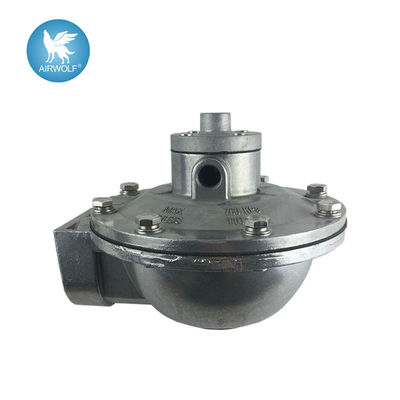

AC110V RCA62T G2 1/2" Dust Collector Pulse Jet Valves



Description



Body: Aluminium (diecast)

Ferrule: 304 SS

Armature: 430FR SS

Seals: Nitrile or fluororubber (reinforced)

Spring: 304 SS

Screws: 302 SS

Diaphragm Seat: PA-6 (standard), fluororubber coated mild steel or High Density PE Refer to Q Series Solenoid product data sheet for solenoid construction details.



Recommended on time range: 50-500ms

Recommended time between pulses: 1 minute or greater



Before conducting any maintenance activity on the system ensure that components are fully isolated from pressure and power supplies. Pressure and power should not be reapplied until the valve has been fully assembled. Diaphragm and pilot inspection should be conducted annually.



Integrally piloted valves meet the requirements of:

. Atex II 2D Mechanical

. CSA (C&US)

C22.2 No. 139-1982 UL Std No. 429

. C-Tick - integral pilots

. EMC (89/336/CE) - integral pilots


1. Prepare supply and blowtube pipes to suit valve specification. Avoid installing valves underneath the tank.

2. Ensure tank and pipes are free from dirt, rust or other particulate.

3. Ensure supply air is clean and dry.

4. Mount valves to inlet pipes and blowtube to valves, ensuring no excess thread sealant can enter the valve itself.

5. Make electrical connections to solenoid or connect RCA pilot port to pilot valve (RCA valves only).

6. Apply moderate pressure to system and check for installation leaks.

7. Fully pressurise system.

8. Test fire and listen for proper actuation and crisp pulse noise.


Weights:

Size	Integral Pilot (CA) Kg (lbs)	Remote Pilot (RCA) Kg (lbs)
62	3.31 (7.30)	3.09(6.82)



Maintenance Kits

Model	Nitrile	fluororubber	Low Temperature -60°C (-76°F) Min.	Includes
RCA10T	K1001	K1002	NA	Diaphragm kits include main and secondary diaphragms (where required) and all springs.These kits are for discontinued valves. o-ring, armature assembly, armature spring, ferrule
CA/RCA20T	K2000	K2007	NA
CA/RCA25T	K2501	K2503	K2504
CA/RCA32T*	K2500	—	NA
CA/RCA35T	K3500	K3501	K3502
CA/RCA40T*	K4000	—	NA
CA/RCA45T	K4502	K4503	K4522
CA/RCA50/62T	K5004	K5000	NA
CA/RCA76T	K7600	K7601	NA
Pilot repair kit	K0380	K0384	NA



Product Characteristics and Performance:

Item Code	Nom. Size	mm	Port Size inch	Number of diaphragms	Kv	Flow Cv
CA/RCA-62T	62	62	2.5	2	91	106



Dimension(mm and inch):



Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.



Working principle
Electrical pulse controller send input signals so that the electromagnetic armature attracts the moving bar. Unclose the balancing hole to release the pressure gas in the back cavity of diaphragm quickly; the pressure gas in the front cavity holds up the diaphragm to open the passage and the valve starts cleaning.
The pulse signal disappears and the spring of the armature works immediately to resume the moving bar so as to close the balancing hole. The pressure gas in the back cavity of the diaphragm and the spring work together to close the passage the valve stops cleaning.
The damping hole in the diaphragm functions to damp the airflow when the moving bar of armature holds up for balancing and to transit the air to the back cavity as soon as the balancing hole is shut to close the passage and stop cleaning.
