Place of Origin: | China, USA |
Certification: | CE ISO9001 |

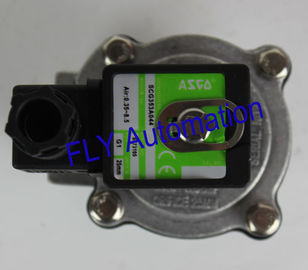

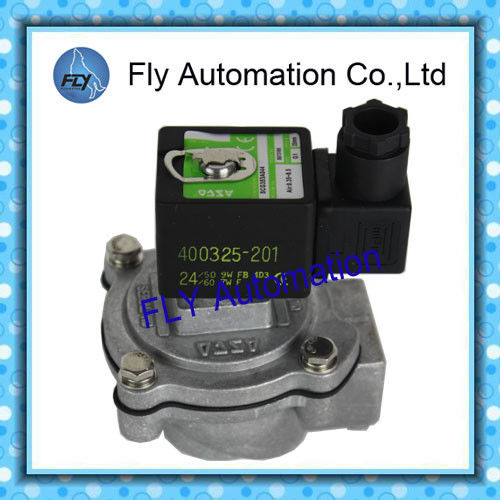

Model Number: | 8353C033 8353C035 |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | Negotiation |
Packaging Details: | Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement |
Delivery Time: | within 1-30 working days after payment |
Payment Terms: | T/T in advance |
Supply Ability: | 1000 pcs |
Code: | 8353C033 | Material: | NBR |
---|---|---|---|
Rebuild Kit: | 96875 | Min Pressure: | 5 PSI |
Max Pressure: | 125 PSI | Pipe Size: | 3/4 1" |
High Light: | pulse solenoid valve,pulse jet valve |
Features:
1. Specially designed for reverse jet-type dust collector systems
2. High flow Cv(s) to 140 for effective bag cleaning
3. High cycle life
4. Fast opening/closing
Construction | |
Body | Aluminum |
Core tube | Stainless steel |
Core and Plugnut | Stainless steel |
Core Spring | Stainless steel |
Sealing & disc | NBR(nitrile/buna-n) |
Diaphragm | TPE(hytrel) |
Shading coil | Copper |
Connector | DIN43650A |
Voltage | DC: 24V, AC: 24V, 48V, 110V, 230V |
Working Temperature | -20 to +85℃ |
Protection Class | IP65 |
Coil Insulation Class | F |
Working Pressure | 0.35-0.85Mpa |
Drawings:
Bonnet | ||||||||
Cat. No. | “G” | H | L | P | Bolts | T | W | |
in | 7.94 | 3.69 | 2.16 | 5 | 5.16 | 3.44 | ||
8353C004 | Extended End | mm | 201.6 | 93.7 | 54.8 | 127 | 131 | 87.3 |
3/4 NPT (Inlet) | in | 3.44 | 1.69 | 2.19 | 5 | 3.47 | 3.44 | |
mm | 87.3 | 42.9 | 55.6 | 127 | 88.1 | 87.3 | ||
8353C030 | 3/4 Socket | in | 3.44 | 1.69 | 2.19 | 5 | 3.47 | 3.44 |
(Outlet) | mm | 87.3 | 42.9 | 55.6 | 127 | 88.1 | 87.3 | |
in | 3.44 | 1.69 | 2.19 | 5 | 3.47 | 3.44 | ||
8353C033 | 3/4 NPT | mm | 87.3 | 42.9 | 55.6 | 127 | 88.1 | 87.3 |
in | 2.53 | 2.03 | 1.69 | 4 | 3.5 | 2.94 | ||
8353C035 | 1 NPT | mm | 64.3 | 51.6 | 42.9 | 101.6 | 88.9 | 74.6 |
