| Place of Origin: | China |
| Brand Name: | FESTO |

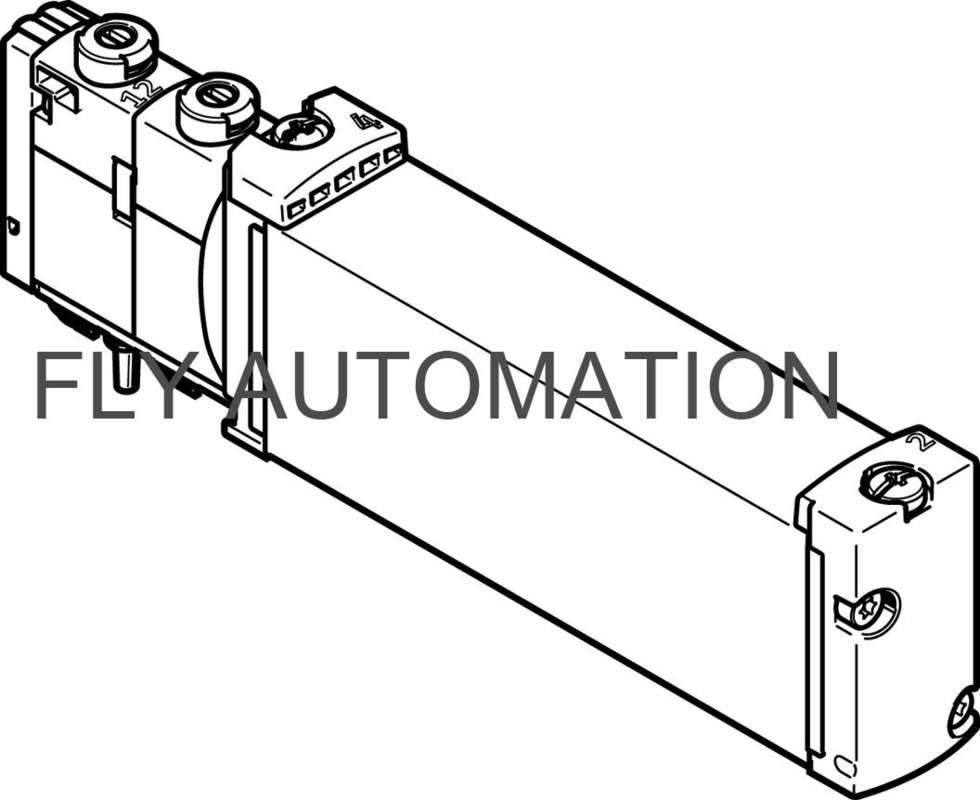

| Model Number: | VUVG-B18-M52-MZT-F-1T1L |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD60-80 |
| Packaging Details: | Plastic bag, Carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 100 pcs per month |
| Order No: | 8004892 | Brand: | FESTO |
|---|---|---|---|
| Model: | VUVG-B18-M52-MZT-F-1T1L | Product Weight: | 138 G |
| Duty Cycle: | 100% | ||
| High Light: | Air Operated Solenoid Valve 18mm,8004892 Pneumatic Solenoid Valves,LED Display Pneumatic Solenoid Valves |
||
About product
1.For valve terminal VTUG with multi-pin, fieldbus interface.
2.Variants to EU Explosion Protection Directive (ATEX).
3.Sub-base valve, semi in-line valve.
4.Mechanical spring return.
Technical Data
| Valve function | 5/2-way, monostable |
| Type of actuation | Electric |
| Valve size | 18 mm |
| Standard nominal flow rate | 950 l/min |
| pneumatic working port | Flange |
| Operating voltage | 24V DC |
| Design | Piston gate valve |
| Type of reset | Mechanical spring |
| Approval | c UL us - Recognized (OL) |
| Degree of protection | IP65 IP67 |
| Exhaust-air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | optional |
| Manual override | Detenting Non-detenting |
| Type of piloting | Pilot actuated |
| Pilot air supply | External |
| Flow direction | Reversible |

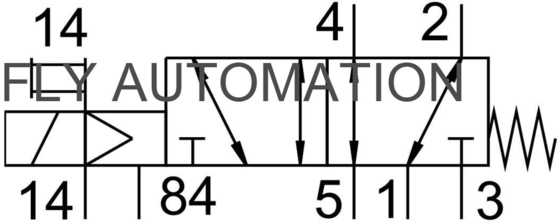

| Symbol | 00991025 |
| lap | Indefinite overlap |
| Signal status display | LED |
| Max. switching frequency | 3 Hz |
| Switching time off | 50 ms |
| Switching time on | 13 ms |
| Duty cycle | 100% |
| Characteristic coil data | 22 V DC: 1.0 W |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | -5°C-60°C |
| Pilot | mediumCompressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5°C-60°C |
| Product weight | 138 g |
| Electrical connection | Via sub-base |
| Type of mounting | On manifold rail |
| Note on materials | RoHS-compliant |
| Material seals | HNBR NBR |
| Material housing | Wrought aluminium alloy |
Another size
| Type | Order no | Price |
| VUVG-B18-T32C-AZT-F-1T1L | 8004885 | USD60-80 |
| VUVG-B18-T32U-AZT-F-1T1L | 8004886 | USD60-80 |
| VUVG-B18-T32H-AZT-F-1T1L | 8004887 | USD60-80 |
| VUVG-B18-T32C-MZT-F-1T1L | 8004888 | USD60-80 |
| VUVG-B18-T32U-MZT-F-1T1L | 8004889 | USD60-80 |
| VUVG-B18-T32H-MZT-F-1T1L | 8004890 | USD60-80 |
| VUVG-B18-M52-RZT-F-1T1L | 8004891 | USD60-80 |
| VUVG-B18-M52-MZT-F-1T1L | 8004892 | USD60-80 |
| VUVG-B18-B52-ZT-F-1T1L | 8004893 | USD60-80 |
| VUVG-B18-P53C-ZT-F-1T1L | 8004894 | USD60-80 |
| VUVG-B18-P53E-ZT-F-1T1L | 8004895 | USD60-80 |
| VUVG-B18-P53U-ZT-F-1T1L | 8004896 | USD60-80 |
Datasheet – Sub-base valve G1/4
There are so many products, welcome to enquire!
