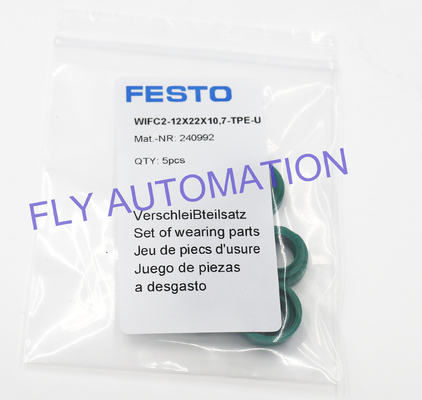

7-TPE-U 240992 Wiper Seal For Pneumatic Air Cylinder FESTO WIFC2-12X22X10

7-TPE-U 240992 Wiper Seal For Pneumatic Air Cylinder FESTO WIFC2-12X22X10

  • 7-TPE-U 240992 Wiper Seal For Pneumatic Air Cylinder FESTO WIFC2-12X22X10
  • 7-TPE-U 240992 Wiper Seal For Pneumatic Air Cylinder FESTO WIFC2-12X22X10
  • 7-TPE-U 240992 Wiper Seal For Pneumatic Air Cylinder FESTO WIFC2-12X22X10
7-TPE-U 240992 Wiper Seal For Pneumatic Air Cylinder FESTO WIFC2-12X22X10
Product Details:
Place of Origin: China
Brand Name: FESTO
Model Number: FESTO,WIFC2-12X22X10,7-TPE-U,240992
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: EXW USD10-USD15
Packaging Details: plastic bag, carton，OPP bag
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 6000 pcs per month
Contact Now
Detailed Product Description
Material: Polyurethane With Shore A Hardness Of 93 Color: Green
Specifications: 12X22X10,7 Order No: 240992
Brand: FESTO Model: WIFC2-12X22X10,7-TPE-U
Highlight:

7-TPE-U Wiper Seal

,

Pneumatic Air Cylinder Wiper Ring Seal

,

240992 Cylinder Wiper Seal

FESTO,WIFC2-12X22X10,7-TPE-U,240992 ,Wiper seal for Pneumatic Air cylinder,Green




Material:Polyurethane with Shore A hardness of 93

Scope of application

Working pressure:≤16Bar

Working temperature:-35-+80℃

Surface velocity:≤1m/s

Medium:Oily lubricated air and dry air and oil-free air (after initial lubrication assembly).



This product and CFW AUNIPSL model are the same FESTO original parts, and are interchangeable.

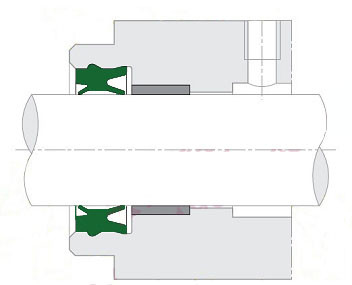

The seal is a snap ring+dust proof+rod seal trinity pneumatic rod seal, which is fast in installation.



Installation steps

1.Please align the side with words in the groove with the inside of the cylinder, and do not install it reversely.

2.Push the sealing ring into the cylinder head. An audible click indicates that it has entered the installation position.

3.Apply a proper amount of grease on the inner diameter of the seal ring to improve the service life of the seal ring.

4.Wrap a proper amount of adhesive tape around the piston rod thread to avoid scratching the seals when the piston rod is inserted.

5.Insert the piston rod and fix the cylinder head.



Other model size detail as bellow:

Specifications Order no Size Coler EXW price Delivery date
FESTO,WIFC2-25X35X11,2-TPE-U 232938 25X35X11,2 green USD15-25 3-5 working days
FESTO,WIFC2-20X30X10,7-TPE-U 229860 20X30X10,7 green USD10-15 3-5 working days
FESTO,WIFC2-32X42X11,2-TPE-U 673133 32X42X11,2 green USD15-25 3-5 working days
FESTO,WIFC2-16X26X10,7-TPE-U 232275 16X26X10,7 green USD10-15 3-5 working days
FESTO,WIFC2-12X22X10,7-TPE-U 240992 12X22X10,7 green USD10-15 3-5 working days



FESTO is passing ISO9001 certification



FESTO wiper seal is excellent  quality and long service life.

Product characteristic:High work efficiency, High reliability ,High accuracy Convenient installation and good safety.

Provide the most comprehensive pneumatic and electric products and related services.
