Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
Place of Origin: | China |
Brand Name: | FESTO |
Model Number: | WIFC6-32X42X11,5-NBR,222594 |
Minimum Order Quantity: | 1pc |
---|---|
Price: | EXW USD30-40 |
Packaging Details: | carton,OPP bag |
Delivery Time: | 5-7 working days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 8000 pcs per month |
Material: | W5035 Grey Plastic+N3580 Brown Nitrile Rubber | Specifications: | WIFC6-32X42X11,5-NBR |
---|---|---|---|
Order No: | 222594 | Color: | Brown+grey |
Brand: | FESTO | Size: | 32X42X11,5 |
Working Pressure: | ≤16Bar | Working Temperature: | -20-+80℃ |
High Light: | 5-NBR Pneumatic Cylinder Kit,Wiper Seal Pneumatic Air Cylinders,Plastic Nitrile Rubber Wiper Seal |
Material:W5035 grey plastic+N3580 brown nitrile rubber
Specifications:WIFC6-32X42X11,5-NBR
Order no:222594
Color: brown+grey
Brand:FESTO
Size:32X42X11,5
Working pressure:≤16Bar
Working temperature:-20-+80℃
Surface velocity:≤1m/s
Medium: oil lubricated air, dry air and oil-free air (after initial lubrication of assembly).

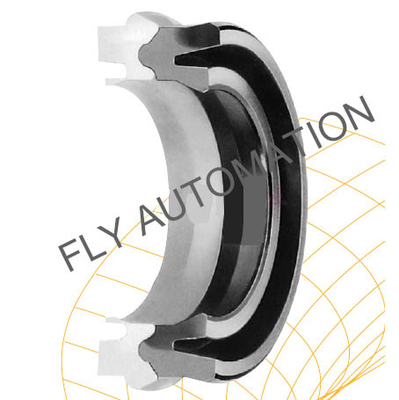

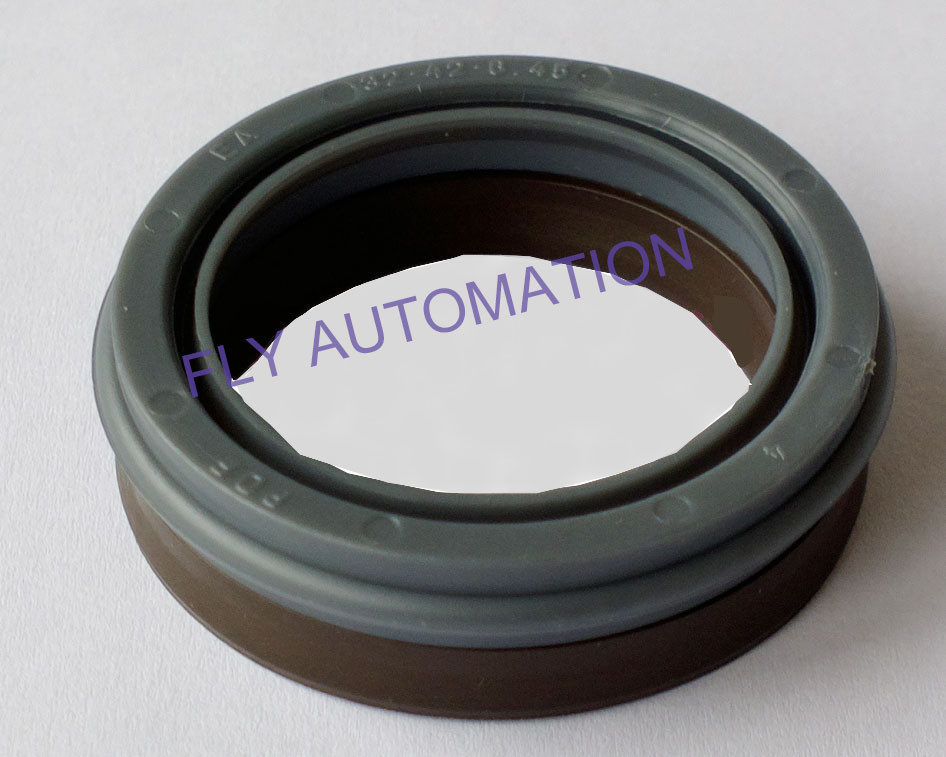

The product is in a split structure, with the grey ring as the dust scraper ring and the brown ring as the seal ring. They have their own independent models: the gray circle model is EA32 * 42 * 6.45, and the brown circle model is EB32 * 42 * 7.65, but they are not sold separately.
This product is also applicable to FESTO DNG-125-PPV-A
Pay attention to the positive and negative directions during installation:
Dimension drawing of seals and grooves:
Another size as follow:
Specifications | Order no | Size | Coler | EXW price | Delivery date |
FESTO,WIFC6-32X42X11,5-NBR | 222594 | 32X42X11,5 | brown/grey | USD30-40 | 5-7 working days |
FESTO,WIFC6-40X50X11,5-NBR | 224143 | 40X50X11,5 | brown/grey | USD30-40 | 5-7 working days |
FESTO,WIFC6-45X55X12,5-NBR | 222595 | 45X55X12,5 | brown/grey | USD30-40 | 5-7 working days |
Quality Standards
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance, according to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise objections.
