Place of Origin: | EU |
Brand Name: | FESTO |
Certification: | ISO Standand |
Model Number: | CPE18-M1H-5L-1/8 |
Minimum Order Quantity: | 1 PC |
---|---|
Price: | USD30-35 Per Each |
Packaging Details: | Box, Carton 13*6*3.5 CM |
Delivery Time: | Within 8 working days after payment |
Payment Terms: | T/T, Western Union, MoneyGram Paypal |
Supply Ability: | 50 PCS Per Week |
Operating Pressure: | 0.2-1 MPa 2-10 Bar | Valve Function: | 5/2-way, Monostable |
---|---|---|---|
Standard Nominal Flow Rate: | 500 L/min | Ordering Code: | MFH-5-1/8 9982 |
Nominal Size: | 5 Mm | Grid Dimension: | 27 Mm |
Symbol: | 00991035 | Switching Time Off: | 36 Ms |
Switching Time On: | 8 Ms | Product Weight: | 270 G |
Highlight: | monostable electrovalve festo,5/2 way festo electrovalve,9982 festo electrovalve |

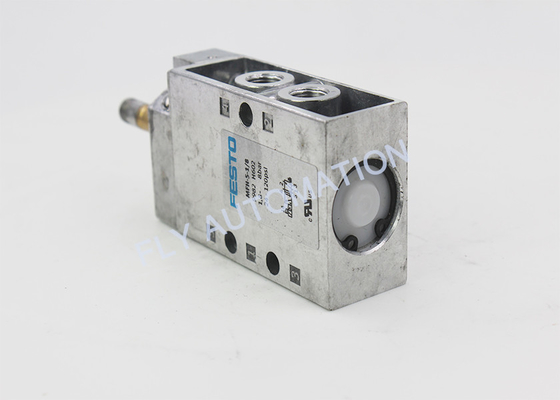

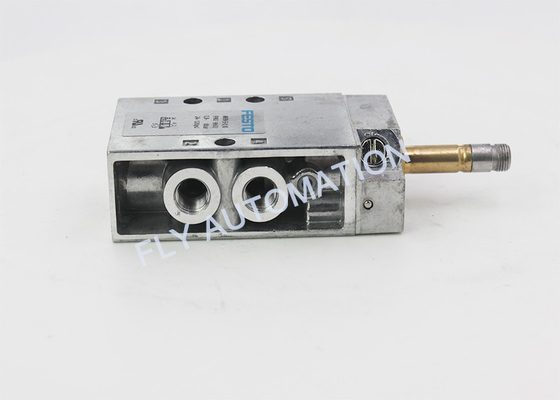

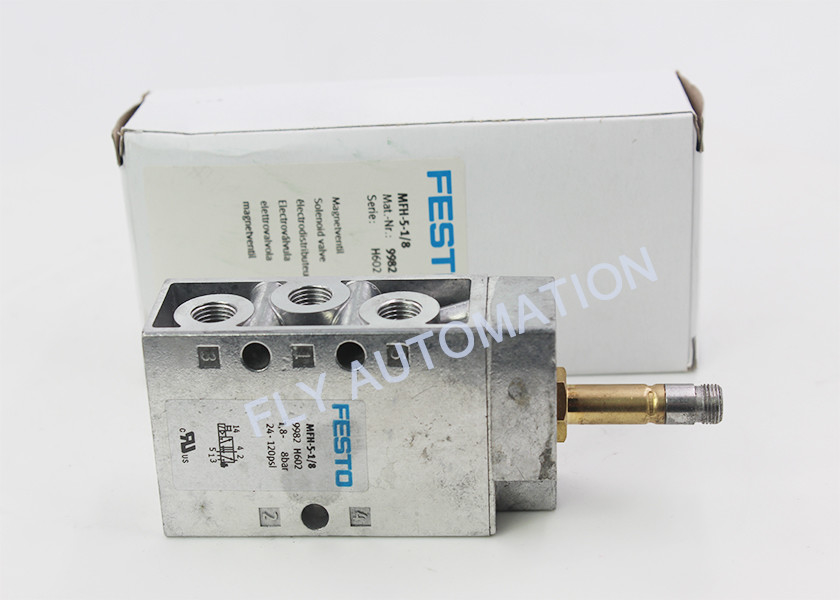

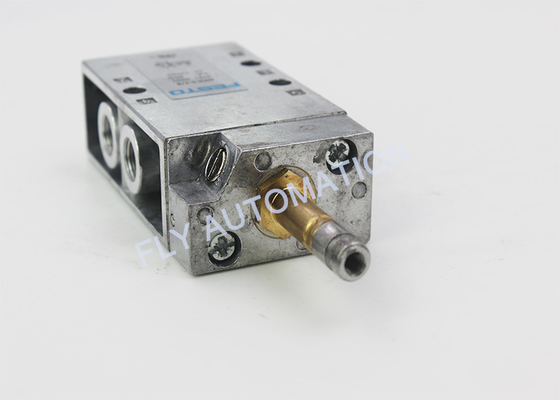

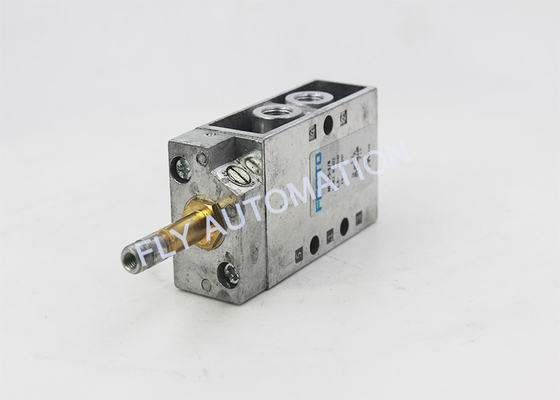

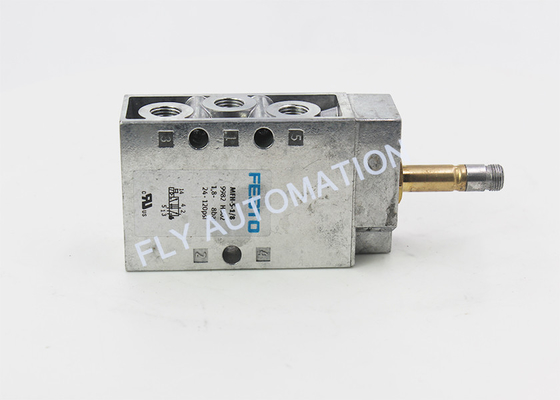

Ordering Code: MFH-5-1/8 9982 |
Technical Data: |
Valve function: 5/2-way, monostable |
Type of actuation: Electric |
Construction width: 26 mm |
Standard nominal flow rate: 500 l/min |
pneumatic working port: G1/8 |
Operating voltage:Via solenoid coil, must be ordered separately |
Operating pressure:0.18-0.8 MPa 1.8-8 bar |
Design: Poppet seat |
Type of reset: Mechanical spring |
Degree of protection: IP65 |
Nominal size: 5 mm |
Grid dimension: 27 mm |
Exhaust-air function: With flow control option |
Sealing principle: Soft |
Mounting position: optional |
Manual override: Detenting |
Type of piloting: Pilot actuated |
Flow direction: Non-reversible |
Symbol: 00991035 |
Switching time off: 36 ms |
Switching time on: 8 ms |
Max. positive test pulse with 0 signal: 2200 µs |
Max. negative test pulse with 1 signal: 3700 µs |
Characteristic coil data: See solenoid coil, to be ordered separately |
Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4] |
Note on operating and pilot medium:Lubricated operation possible (in which case lubricated operation will always be required) |
Corrosion resistance class CRC: 1 - Low corrosion stress |
Storage temperature : -20 °C ... 60 °C |
Media temperature : -10 °C ... 60 °C |
Ambient temperature: -5 °C ... 40 °C |
Product weight : 270 g |
Electrical connection: Via F coil, to be ordered separately |
Type of mounting: Either On manifold rail or With through-hole |
Pilot exhaust port 82: M5 |
Pneumatic connection, port 1 ,2, 3, 4, 5 : G1/8 |
Note on materials: RoHS-compliant |
Material seals: NBR, TPE-U(PU) |
Material housing: Die-cast aluminium |
