| Place of Origin: | China |
| Certification: | CE |
| Model Number: | 4H230C-06 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement |
| Delivery Time: | within 1-30 working days after payment |
| Payment Terms: | T/T , Western Union |
| Supply Ability: | 1000 pcs |
| Model Code: | 4H230C-06 | Color: | Silvery |
|---|---|---|---|
| Body Material: | Aluminum | Name: | Hand Pull Valve |
| Highlight: | foot pedal valve,pneumatic mechanical valve |
||

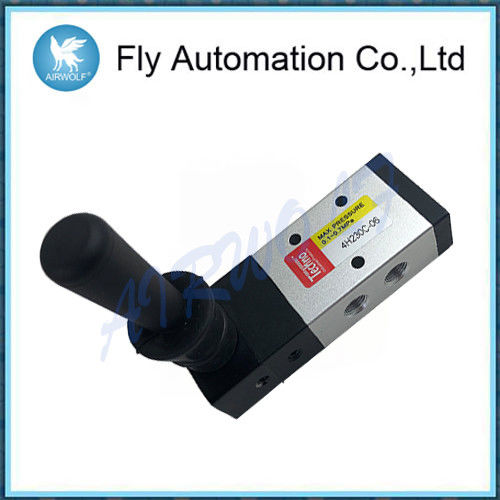

4H230C-06 Mid-position closed 5/2 way lock type 4H Series Hand Pull Valve
| Ordering code | |||||
| 4H | 2 | 30 | C | 06 | S |
| Model 4H:5/2(3)Way Hand Pull valve | Code 2: 200 Series 3: 300 Series 4: 400 Series | Valve type 10: 2 position 30: 3 position | C: Mid-position closed E: Mid-postiion exhaust P: Mid-position pressure | Port size 06: G1/8" 08: G1/4" 10: G3/8" 15: G1/2" | Blank: 5/2 way lock type L: 5/3 way lock type S: 5/2(3) way spring return type |
| Technical data | ||||||||
| Model | 4H210-06 | 4H210-08 | 4H230-08 | 4H310-08 | 4H310-10 | 4H330-10 | 4H410-15 | 4H430-15 |
| Working Medium | 40 Micron Filtered Air | |||||||
| Operation | Direct | |||||||
| Effective section area | 14mm²(Cv=0.78) | 16mm²(Cv=0.89) | 12mm²(Cv=0.67) | 25mm²(Cv=1.4) | 30mm²(Cv=1.68) | 18mm²(Cv=1.00) | 50mm²(Cv=2.79) | 30mm²(Cv=1.68) |
| Port connection | G1/8 | Air Inlet=Air Outlet=G1/4 Exhaust=G1/8 | G1/4 | Air Inlet=Air Outlet=G3/8 Exhaust=G1/4 | G1/2 | |||
| Working pressure range | 0～0.8MPa | |||||||
| Operating temperature range | 0～60℃ | |||||||
Quality Standards :
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections
Samples
You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.
After-sale service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
