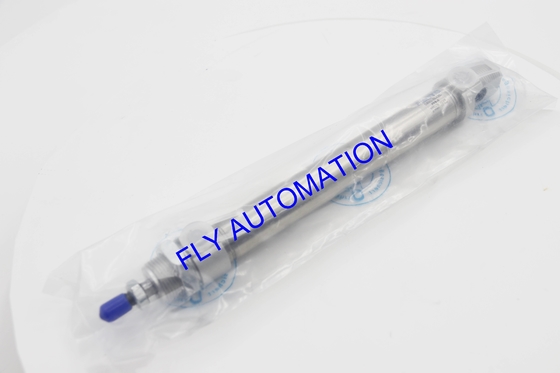

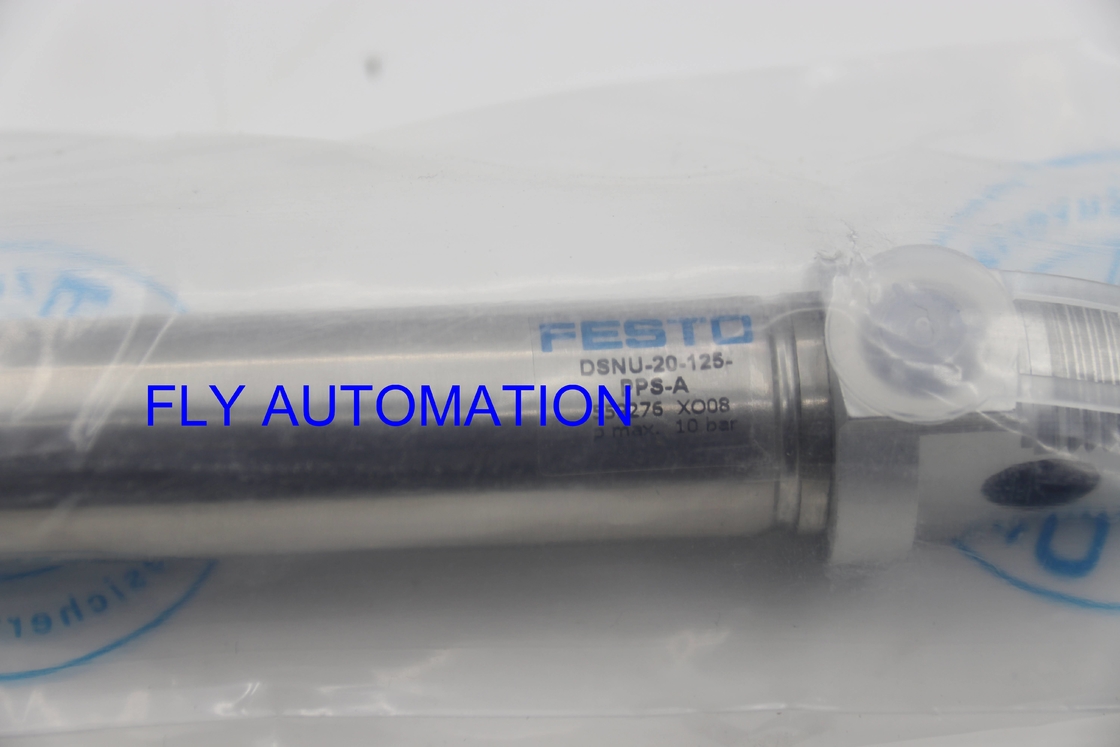

559276 GTIN4052568097271 Pneumatic Air Cylinders DSNU-20-125-PPS-A

559276 GTIN4052568097271 Pneumatic Air Cylinders DSNU-20-125-PPS-A

  • 559276 GTIN4052568097271 Pneumatic Air Cylinders DSNU-20-125-PPS-A
  • 559276 GTIN4052568097271 Pneumatic Air Cylinders DSNU-20-125-PPS-A
559276 GTIN4052568097271 Pneumatic Air Cylinders DSNU-20-125-PPS-A
Product Details:
Place of Origin: China
Brand Name: FESTO
Model Number: DSNU-20-125-PPS-A
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: EXW USD30-50
Packaging Details: Plastic bag, Carton
Delivery Time: 7-10working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500 pcs per month
Contact Now
Detailed Product Description
Type: DSNU-20-125-PPS-A Part No: 559276
Brand: FESTO Piston Diameter: 20mm
Stroke: 125 Mm Color: Silver
Highlight:

559276 Pneumatic Air Cylinders

,

20mm Piston Pneumatic Air Cylinders

,

Festo Pneumatic Piston Cylinder

FESTO ISO cylinder DSNU-20-125-PPS-A 559276 GTIN4052568097271

About product

1.Extensive range of accessories makes it possible to install the cylinder virtually anywhere.

2.Stainless steel piston rod.

3.Good running performance and long service life.

4.Piston rod with male and female thread.

5.Cylinder barrel made of stainless steel.

6.Bearing and end caps made of wrought aluminium alloy.



Technical Data

Stroke 125 mm
Piston diameter 20 mm
Piston rod thread M8
Cushioning Self-adjusting pneumatic end-position cushioning
Mounting position optional
Conforms to standard CETOP RP 52 P ISO 6432
Piston-rod end Male thread
Design Piston Piston rod Cylinder barrel
Position detection Via proximity switch
Symbol 00992970
Variants Piston rod at one end
Operating pressure 0.1 MPa ... 1 MPa
Operating pressure 1 bar ... 10 bar
Mode of operation Double-acting
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Corrosion resistance class CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Cleanroom class Class 6 according to ISO 14644-1
Ambient temperature -20°C-80°C
Cushioning length 15 mm
Additional weight per 10 mm stroke 7.2 g
Type of mounting With accessories
Pneumatic connection G1/8
Note on materials RoHS-compliant
Material cover Wrought aluminium alloy Colourless anodised
Material seals NBR TPE-U(PU)
Material piston rod High-alloy stainless steel
Material cylinder barrel High-alloy stainless steel



General technical data

559276 GTIN4052568097271 Pneumatic Air Cylinders DSNU-20-125-PPS-A

A wide range of products with excellent prices. Please contact me!
