| Place of Origin: | China |
| Brand Name: | FESTO |

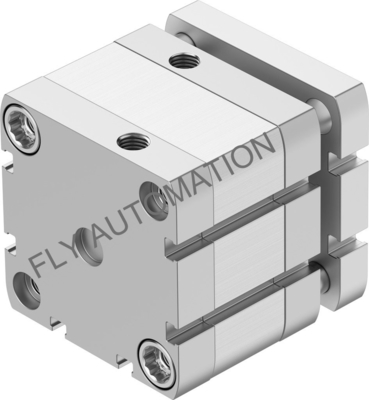

| Model Number: | ADNGF-63-10-P-A |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD70-90 |
| Packaging Details: | Plastic bag, Carton，OPP bag |
| Delivery Time: | 10-15working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 80 pcs per month |
| Part No: | 554268 | Type: | ADNGF-63-10-P-A |
|---|---|---|---|
| Brand: | FESTO | GTIN: | 4052568198930 |
| Material Piston Rod: | High-alloy Stainless Steel | Pneumatic Connection: | G1/8 |
| High Light: | Alloy Stainless Steel Pneumatic Compact Cylinder,554268 Pneumatic Compact Cylinder,Pneumatic Air Cylinders 10mm |
||
Advantage
1.Simple debugging.
2.Easy to operate and install.
3.An extensive range of accessories enables the cylinder to be installed virtually anywhere.
Technical Data
| Stroke | 10 mm |
| Piston diameter | 63mm |
| Based on standard | ISO 21287 |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Design | Piston Piston rod Profile barrel |
| Position detection | Via proximity switch |
| Protection against torque/guide | Guide rod with yoke |
| Mode of operation | Double-acting |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C-80°C |
| Basic weight for 0 mm stroke | 915 g |
| Additional weight per 10 mm stroke | 72 g |
| Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant |
| Material cover | Aluminium Anodised |
| Material seals | TPE-U(PUR) |
| Material piston rod | High-alloy steel |
| Material cylinder barrel | Wrought aluminium alloy Smooth anodised |
Other size as follow:
| Type | Order no | Weight(g) | Price |
| ADNGF-63-10-PPS-A | 554268 | 987 | USD80-100 |
| ADNGF-63-15-PPS-A | 554269 | 1023 | USD80-100 |
| ADNGF-63-20-PPS-A | 554270 | 1059 | USD80-100 |
| ADNGF-63-25-PPS-A | 554271 | 1095 | USD80-100 |
| ADNGF-63-30-PPS-A | 554272 | 1131 | USD80-100 |
| ADNGF-63-40-PPS-A | 554273 | 1203 | USD80-100 |
| ADNGF-63-50-PPS-A | 554274 | 1275 | USD80-100 |
| ADNGF-63-60-PPS-A | 554275 | 1347 | USD80-100 |
| ADNGF-63-80-PPS-A | 554276 | 1491 | USD80-100 |
FESTO, the world's leading automation technology supplier, is committed to promoting the development of industrial automation.
A wide range of products with excellent prices. Please hurry to me!
Contact Person: Jaren
Tel: 0086-15257858856
Fax: 86-152-57858856
