| Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
 |
| Place of Origin: | China |
| Brand Name: | BURKERT |
| Certification: | ISO Standand |
| Model Number: | 5404-04 |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic bags, boxes, cartons, Pallets or As customer's requirement |
| Delivery Time: | 7 working Days |
| Payment Terms: | T/T, Western Union, MoneyGram Paypal |
| Supply Ability: | 1000 PCS Per Week |
| Product NO: | 5404 | Product Type: | 2/2 Way |
|---|---|---|---|
| Normal Voltage: | AC220V DC24V | Valve Internals: | Brass |
| Thread Option: | G And NPT | Diaphragm Material: | PTFE: <180°C |
| High Light: | 5404-04 Orifice Pneumatic Solenoid Valves,Two Position Solenoid Water Valve,5404-04 Orifice Solenoid Water Valve |
||
Description:

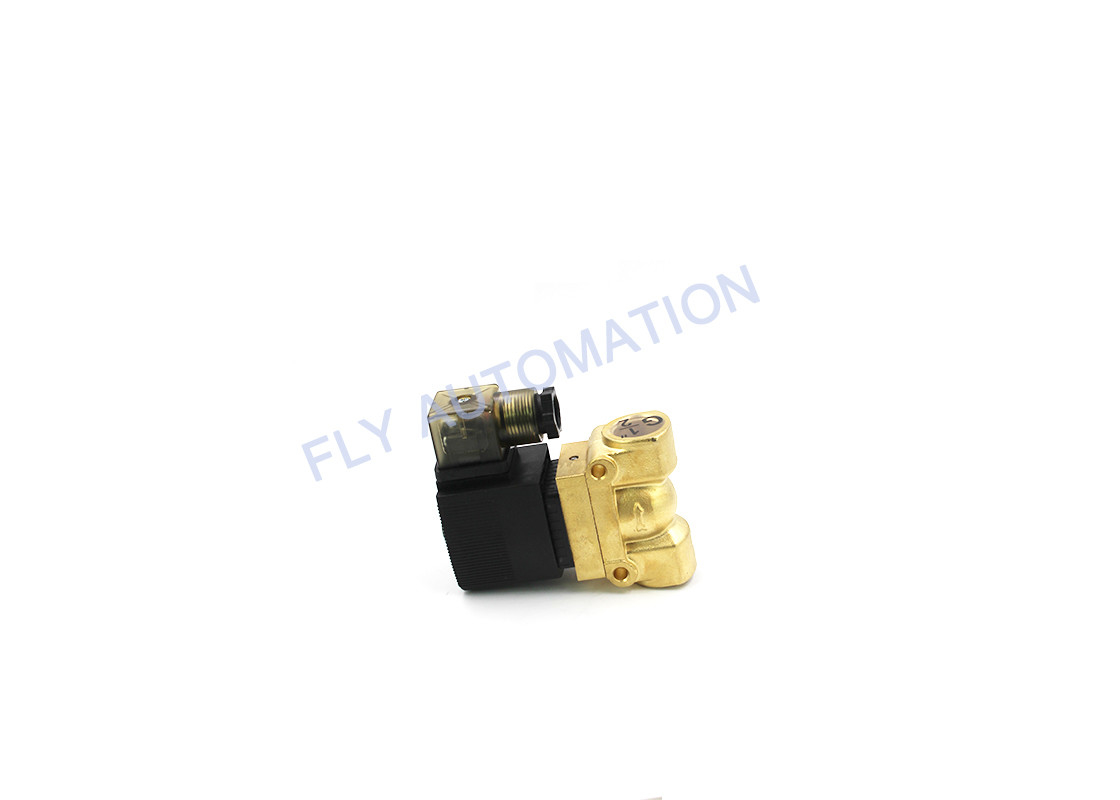

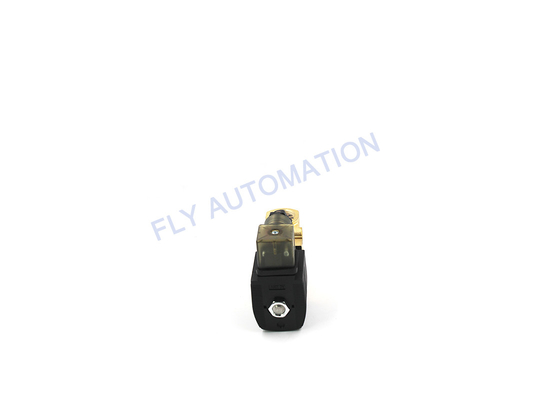

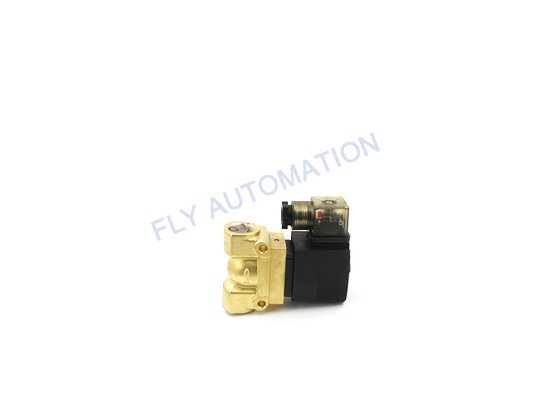

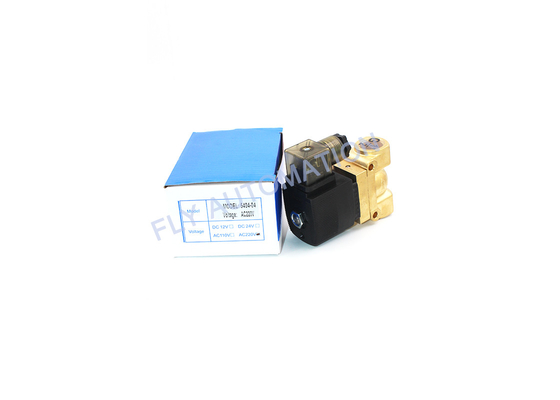

Two position, two way, normal close switch, magnetic solenoid water valve.
Should be installed in the horizontal tube keep upward.
Used to control automatically the liquid and gas in the pipeline
5404-02 Orifice : 8mm Port connection: 1/4"
5404-04 Orifice : 12 mm Port connection: 1/2"
5404-06 Orifice : 20mm Port connection: 3/4"
| Port connection D | Orifice[mm] | A | B | F | E | L | A/F |
| NPT 1/2 | 12 | 83 | 96.5 | 14 | 32 | 65 | 27 |
| NPT 3/4 | 20 | 93 | 109 | 16 | 60 | 100 | 32 |
| NPT 1 | 25 | 99.5 | 119 | 18 | 70 | 115 | 41 |
| Product NO. | 5404 |
| Product type | 2/2 way |
| Normal Voltage | AC220V DC24V |
| Orifice | 7/16"-1"(DN12-25mm) |
| Valve internals | Brass |
| Duty cycle | 100% continuous rating |
| Protection class | IP 65 with cable plug |
Specification
| Pattern: | Two-port two-position | |||||
| Principium: | pilot type | |||||
| Control mode: | normally close | |||||
| Valve body: | brass | |||||
| Diaphragm material: | PTFE: <180°C | |||||
| Working pressure: | 1~50bar | |||||
| Max pressure: | 50bar | |||||
| Voltage: | AC220V DC12V DC24V | |||||
| Medium: | air ,water, hot water , oil ect. | |||||
| Application: | high pressure high temperature large-flow normally air water control system | |||||
| MODEL | BORE(mm) | PORT | A | B | C | L | J |
| Apr-04 | 12 | G1/2'' | 83 | 95.5 | 32 | 65 | 27 |
| Jun-04 | 20 | G3/4'' | 93 | 109 | 60 | 100 | 32 |
| Aug-04 | 25 | G1'' | 99.5 | 119 | 70 | 115 | 40 |
