| Place of Origin: | China |
| Brand Name: | FESTO |
| Model Number: | MFH-3-1/2 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD80-100 |
| Packaging Details: | Plastic bag, Carton |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 50 pcs per week |
| Brand: | FESTO | Model: | MFH-3-1/2 |
|---|---|---|---|
| Order No: | 9857 | Valve Function: | 3/2-way, Closed, Monostable |
| Construction Width: | 52 Mm | Nominal Size: | 14 Mm |
| High Light: | 52 Mm Pneumatic Solenoid Valves,Pneumatic Solenoid Valves MFH-3-1/2,Pilot Actuated Air Solenoid Valve |
||
About product
1.Robust structure and reliable performance.
2.Specific type according to ATEX directive, which can be used in the workplace with potential explosion hazard.
3.Very sturdy poppet valve concept for all 3/2 and 5/2-way valves.
4.Pneumatic or electrical actuation with F solenoid coil.
5.With flow rates of up to 7500 l/min.
6.Solenoid coil can be easily exchanged later.
7.Solenoid coil not included in scope of delivery.
Technical Data
| Valve function | 3/2-way, closed, monostable |
| Type of actuation | Electric |
| Construction width | 52 mm |
| Standard nominal flow rate | 3700 l/min |
| pneumatic working port | G1/2 |
| Operating voltage | Via solenoid coil, must be ordered separately |
| Operating pressure | 0.15 MPa ... 0.8 MPa |
| Operating pressure | 1.5 bar ... 8 bar |
| Design | Poppet seat |
| Type of reset | Mechanical spring |
| Approval | c UL us - Recognized (OL) |
| Degree of protection | IP65 |
| Nominal size | 14 mm |
| Grid dimension | 69 mm |
| Exhaust-air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | optional |
| Manual override | Detenting |
| Type of piloting | Pilot actuated |
| Flow direction | Non-reversible |

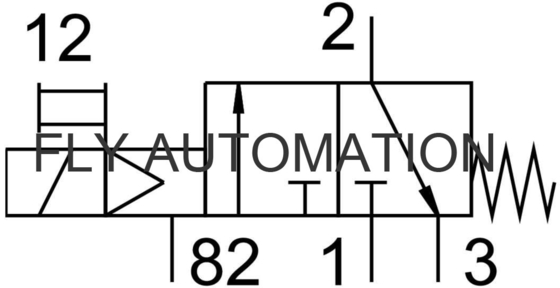

| Symbol | 00991041 |
| lap | Underlap |
| b value | 0.3 |
| Switching time off | 90 ms |
| Switching time on | 18 ms |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Product weight | 1100 g |
| Electrical connection | Via F coil, to be ordered separately |
| Type of mounting | Either: On manifold rail With through-hole |
| Pilot exhaust port 82 | M5 |
| Pneumatic connection, port 1 | G1/2 |
| Pneumatic connection, port 2 | G1/2 |
| Pneumatic connection, port 3 | G1/2 |
| Note on materials | RoHS-compliant |
| Material seals | NBR |
| Material housing | Die-cast aluminium |

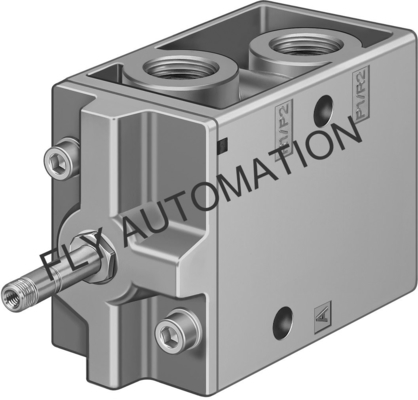

Product picture
There are so many products, welcome to enquire!
