Name: 50mm Rubber Bumpers Magnetically Coupled Cylinder In Silvery Cy1r50h-300
Brand: FLY AUTOMATION
SKU: CY1R50H-300
Price: 1,150.60 USD
Availability: InStock

Home Products Pneumatic Air Cylinders

50mm Rubber Bumpers Magnetically Coupled Cylinder In Silvery Cy1r50h-300

Product Details:

Place of Origin:	CHINA
Brand Name:	SMC
Certification:	CE
Model Number:	CY1R50H-300

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Delivery Time:	within 1-10 working days after payment
Payment Terms:	T/T
Supply Ability:	1000 pcs /day

Contact Now

Detailed Product Description

Name:	Air Cylinder	Model:	CY1R50H-300
Body Material:	Aluminum Alloy	Proof Pressure:	1.05 MPa
Cushion:	Rubber Bumpers At Both Ends	Color:	Silvery
Highlight:	pneumatic actuator cylinder , smc pneumatic cylinder

Pneumatic Cylinder CY1R50H-300 SMC 50mm Magnetically Coupled Rubber Bumpers Cylinder

Features

• Cylinder can be directly mounted.
• Auto switches can be mounted, and there is no lurching from cylinder.
• Turning can be stopped within an allowable range.
• Piping can be concentrated with the centralized piping style.
• External dimensions are compact.
• Mounting can be performed on the top body surface or on one side surface.

Typical Applications
Printing (Tension Control)

Semiconductor (spot welding machine, chip grinding)

Automation Control

Robot

Specifications
Fluid			Air
Proof pressure			1.05MPa
Max. operating pressure			0.7MPa
Min. operating pressure			0.18MPa
Ambient & fluid temperature			-10 to 60℃
Piston speed (1)			50 to 500mm/s
Cushion			Rubber bumpers at both ends
Lubrication			Non-lube
Mounting method			Direct mounted style

Standard Stroke
Bore size (mm)	Standard stroke (mm)	Max. available stroke (mm)	Max. stroke with switch (mm)

6	50, 100, 150, 200	300	300
10	50, 100, 150, 200, 250, 300	500	500
15	50, 100, 150, 200, 250, 300 350, 400, 450, 500	1000	750
20	100, 150, 200, 250, 300, 350 400, 450, 500, 600, 700, 800	1500	1000
25		2000	1500
32
40	100, 150, 200, 250, 300, 350 400, 450, 500, 600, 700, 800 900, 1000	2000	1500
50
63

Weight(g)
Item		6	10	15	20	25	32	40	50	63
Basic weight (for 0st)	CY1R()H CY1RG()H (with switch rail)	0.092	0.111	0.277	0.440	0.660	1.27	2.06	3.59	5.45
	CY1R()L CY1RG()L (with switch rail)	-	-	-	0.330	0.570	1.12	1.88	3.29	4.95
	CY1R()H (without switch rail)	0.075	0.080	0.230	0.370	0.580	1.15	1.90	3.30	5.10
	CY1R()L (without switch rail)	-	-	-	0.260	0.490	1.00	1.72	3.00	4.60
Additional weight per 50st (with switch rail)		0.016	0.034	0.045	0.071	0.083	0.113	0.133	0.177	0.212
Additional weight per 50st (without switch rail)		0.004	0.014	0.020	0.040	0.050	0.070	0.080	0.095	0.120

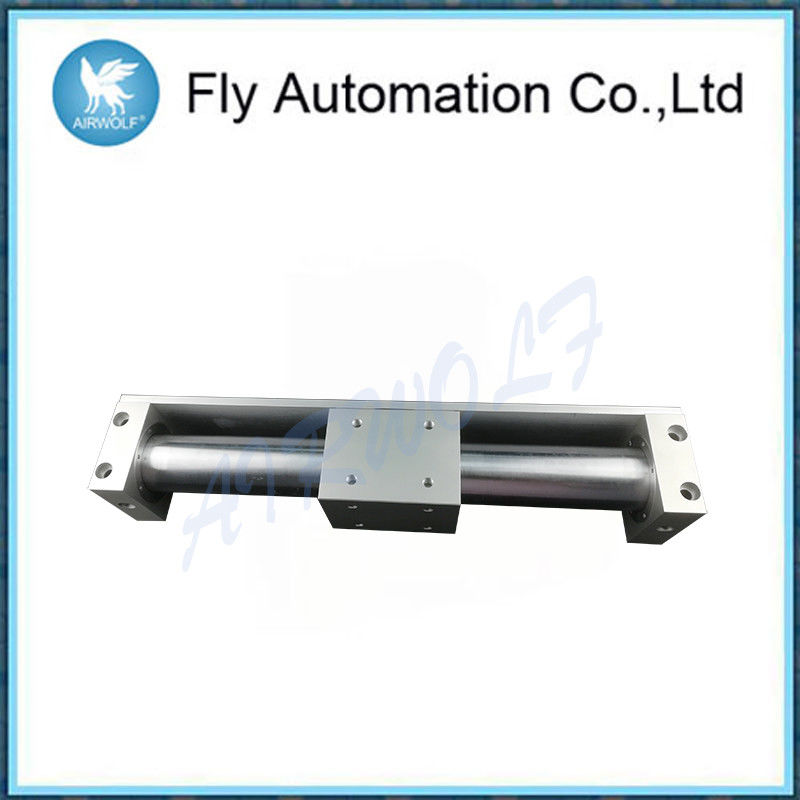

50mm Rubber Bumpers Magnetically Coupled Cylinder In Silvery Cy1r50h-300

Products shopping guide
For example: you want to purchase a batch of cylinders but you don't know which type you are really want, so you can tell me all your requirement and I'll recommend to you.

Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. We have a variety of ways to deliver goods, usually DHL, Fedex, TNL will be normal ways, If you require use of a courier, we can do it.
4. Also we can send by your delivery acount if you want.

After-sale service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

Serves time
0:00 - 23:59
From Monday to Sunday
