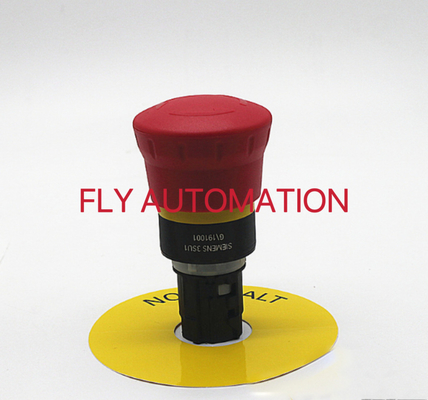

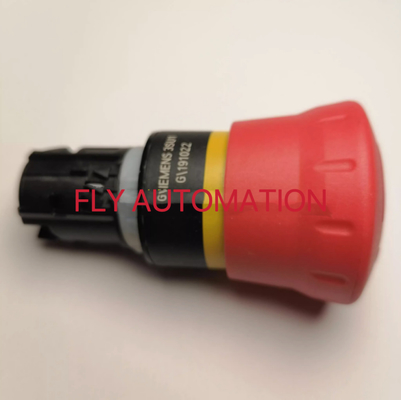

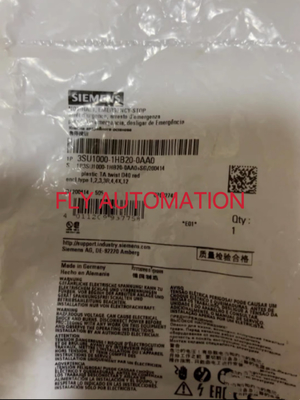

40mm Plastic Emergency Stop Button Tamperproof 3SU1000-1HB20-0AA0

Product Details:

Place of Origin:	CHINA
Brand Name:	SIEMENS
Model Number:	3SU1000-1HB20-0AA0

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	EXW USD36-40
Packaging Details:	Bagged, carton
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	500PCS Every month

Contact Now

Detailed Product Description

Colour:

Red

Material:

Plastic

Outer Diameter Of The Actuating Element:

40mm

Type Of Unlocking Device:

Rotate-to-unlatch Mechanism

Highlight:

40mm Emergency Stop Button

Plastic Emergency Stop Button Tamperproof

Mushroom Head Emergency Push Button

SIEMENS Plastic Emergency Stop Button 3SU1000-1HB20-0AA0

40mm Plastic Emergency Stop Button Tamperproof 3SU1000-1HB20-0AA0

product brand name	SIRIUS ACT
Product designation	Commanding and signaling devices
Design of the product	Emergency stop mushroom pushbutton

Actuator:
Design of the operating mechanism	Emergency stop mushroom pushbutton, tamperproof
Manner of function of the actuating element	Latching
Product expansion optional Light source	No
Color ● of the actuating element	Red
Material of the actuating element	plastic
Shape of the actuating element	round
Outer diameter of the actuating element	40mm
Type of unlocking device	rotate-to-unlatch mechanism
Number of switching positions	2

Front ring:
Product component front ring	No

General technical data:
Product function ● positive opening ● EMERGENCY OFF function ● EMERGENCY STOP function	YES YES YES
Vibration resistance ● acc. to IEC 60068-2-6	10 ... 500 Hz: 5g
Operating frequency maximum	600(1H)
Mechanical service life (switching cycles) ● typical	300 000
Equipment marking ● acc. to DIN EN 61346-2 ● acc. to DIN EN 81346-2	S S

Safety related data:
B10 value with high demand rate acc. to SN 31920	100 00

Ambient conditions:
Ambient temperature ● during operation ● during storage	°C -25 ... +70 °C -40 ... +80

Installation/ mounting/ dimensions:
Shape of the installation opening	round
Mounting diameter	22MM
