| General technical data |
|
| product brand name |
SIRIUS |
| product feature |
|
| ● integrated bypass contact system |
Yes |
| ● thyristors |
Yes |
| product function |
|
| ● intrinsic device protection |
Yes |
| ● motor overload protection |
Yes |
| ● evaluation of thermistor motor protection |
Yes |
| ● external reset |
Yes |
| ● adjustable current limitation |
Yes |
| ● inside-delta circuit |
No |
| product component motor brake output |
No |
| insulation voltage rated value |
V 600 |
| degree of pollution |
3, acc. to IEC 60947-4-2 |
| reference code according to EN 61346-2 |
Q |
reference code according to DIN 40719 extended
according to IEC 204-2 according to IEC 750 |
G |
| |
|
| Power Electronics |
|
| product designation |

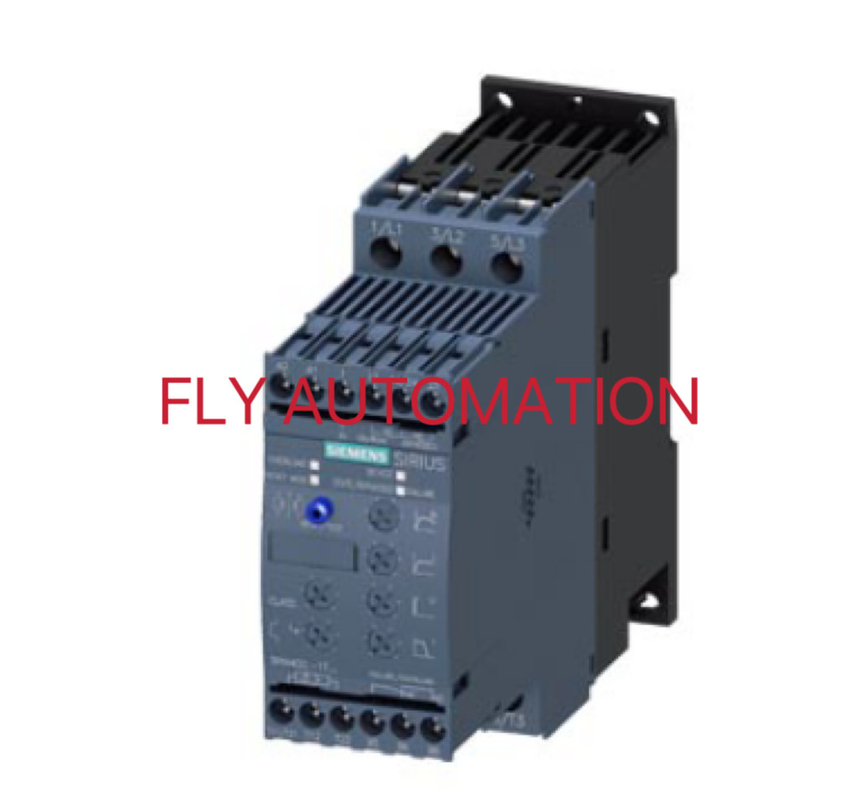

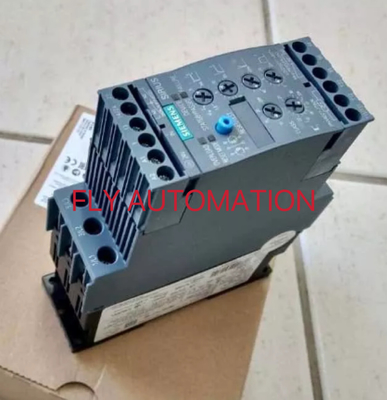

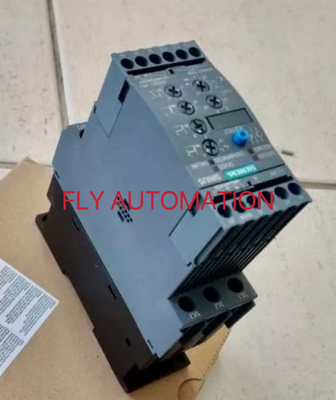

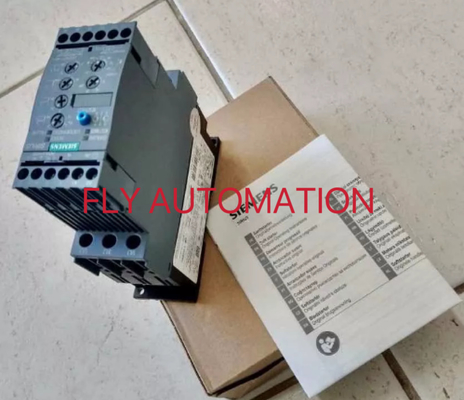

Soft starter |

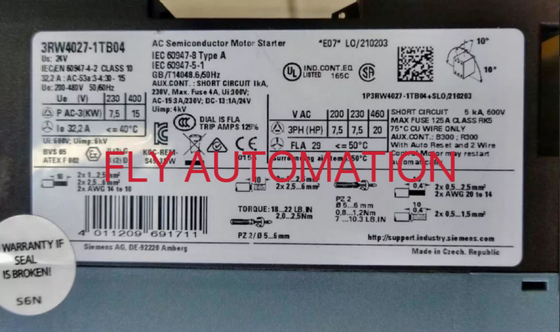

| operational current |
|
| ● at 40 °C rated value |
A 32 |
| ● at 50 °C rated value |
A 29 |
| ● at 60 °C rated value |
A 26 |
| yielded mechanical performance for 3-phase motors |
|
| ● at 230 V |
|
| — at standard circuit at 40 °C rated value |
kW 7.5 |
| ● at 400 V |
|
| — at standard circuit at 40 °C rated value |
kW 15 |
| yielded mechanical performance [hp] for 3-phase AC |
hp 7.5 |
| motor at 200/208 V at standard circuit at 50 °C rated |
|
| value |
|
| |
|
| operating frequency rated value |
Hz 50 ... 60 |
| relative negative tolerance of the operating frequency |
-10% |
| relative positive tolerance of the operating frequency |
10% |
| operating voltage at standard circuit rated value |
V 200 ... 480 |
| relative negative tolerance of the operating voltage at |
-15% |
| standard circuit |
|
| |
|
| relative positive tolerance of the operating voltage at |
10% |
| standard circuit |
|
| 10% |
|
| minimum load [%] % 20 |
20% |
| adjustable motor current for motor overload |
A 17 |
| protection minimum rated value |
|
| continuous operating current [% of Ie] at 40 °C |
115% |
| power loss [W] at operational current at 40 °C during |
W 13 |
| operation typical |
|
| Control circuit/ Control |
|
| type of voltage of the control supply voltage |
AC/DC |
| control supply voltage frequency 1 rated value |
Hz 50 |
| control supply voltage frequency 2 rated value |
Hz 60 |
| relative negative tolerance of the control supply |
-10% |
| voltage frequency |
|
| |
|
| relative positive tolerance of the control supply |
10% |
| voltage frequency |
|
| |
|
| control supply voltage 1 at AC |
|
| ● at 50 Hz rated value |
V 24 |
| ● at 60 Hz rated value |
V 24 |
| relative negative tolerance of the control supply |
-15% |
| voltage at AC at 50 Hz |
|
| |
|
| relative positive tolerance of the control supply |
10% |
| voltage at AC at 50 Hz |
|
| |
|
| relative negative tolerance of the control supply |
-15% |
| voltage at AC at 60 Hz |
|
| |
|
| relative positive tolerance of the control supply |
10% |
| voltage at AC at 60 Hz |
|
| |
|
| control supply voltage 1 at DC rated value V 24 |
-20% |
| relative negative tolerance of the control supply |
|
| voltage at DC |
|
| |
|
| relative positive tolerance of the control supply |
20% |
| voltage at DC |
|
| |
|
| display version for fault signal |
red |
| Mechanical data |
|
| size of engine control device |
S0 |
| width |
mm 45 |
| height |
mm 125 |
| depth |
mm 155 |
| fastening method |
screw and snap-on mounting |
| mounting position |
With additional fan: With vertical mounting surface +/-90°
rotatable, with vertical mounting surface +/- 22.5° tiltable
to the front and back Without additional fan: With vertical
mounting surface +/-10° rotatable, with vertical mounting
surface +/- 10° t |
| |
|
| |
|
| required spacing with side-by-side mounting |
|
| ● upwards |
mm 60 |
| ● at the side |
mm 15 |
| ● downwards |
mm 40 |
| wire length maximum |
m 300 |
| number of poles for main current circuit |
3 |
| Connections/ Terminals |
|
| type of electrical connection |
|
| ● for main current circuit |
screw-type terminals |
| ● for auxiliary and control circuit |
screw-type terminals |
| number of NC contacts for auxiliary contacts |
0 |
| number of NO contacts for auxiliary contacts |
2 |
| number of CO contacts for auxiliary contacts |
1 |
| type of connectable conductor cross-sections for |
|
| main contacts for box terminal using the front |
|
| clamping point |
|
| ● solid |
2x (1 ... 2.5 mm²), 2x (2.5 ... 6 mm²), max. 1x 10 mm² |
| ● finely stranded with core end processing |
2x (1 ... 2.5 mm²), 2x (2.5 ... 6 mm²) |
| type of connectable conductor cross-sections at AWG |
|
| cables for main contacts for box terminal |
|
| ● using the front clamping point |
1x 8, 2x (16 ... 10) |
| type of connectable conductor cross-sections for |
|
| auxiliary contacts |
|
| ● solid |
2x (0.5 ... 2.5 mm²) |
| ● finely stranded with core end processing |
2x (0.5 ... 1.5 mm²) |
| type of connectable conductor cross-sections at AWG |
|
| cables |
|
| ● for auxiliary contacts |
2x (20 ... 14) |
| ● for auxiliary contacts finely stranded with core end processing |
2x (20 ... 16) |
| |
|
| Ambient conditions |
|
| installation altitude at height above sea level |
m 5 000 |
| environmental category |
|
| ● during transport according to IEC 60721 |
2K2, 2C1, 2S1, 2M2 (max. fall height 0.3 m) |
| ● during storage according to IEC 60721 |
1K6 (only occasional condensation), 1C2 (no salt mist),
1S2 (sand must not get inside the devices), 1M4 |
| ● during operation according to IEC 60721 |
3K6 (no formation of ice, no condensation), 3C3 (no salt
mist), 3S2 (sand must not get into the devices), 3M6 |
| |
|
| ambient temperature |
|
| ● during operation |
°C -25 ... +60 |
| ● during storage |
°C -40 ... +80 |
| derating temperature |
°C 40 |
| protection class IP on the front according to IEC 60529 |
IP20 |
| touch protection on the front according to IEC 60529 |
finger-safe, for vertical contact from the front |
| UL/CSA ratings |
|
| yielded mechanical performance [hp] for 3-phase AC motor |
|
| |
|
| ● at 220/230 V |
|
| — at standard circuit at 50 °C rated value hp 7.5 |
hp 7.5 |
| ● at 460/480 V |
|
| — at standard circuit at 50 °C rated value |
hp 20 |
| contact rating of auxiliary contacts according to UL |
B300 / R300 |
