30992 GTIN4052568114275 Pneumatic Solenoid Valves MFH-5-1/8-L-S-B

Product Details:

Place of Origin:	China
Brand Name:	FESTO
Model Number:	MFH-5-1/8-L-S-B

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	EXW USD100-120
Packaging Details:	Plastic bag, Carton
Delivery Time:	7-10 working days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	20 pcs per week

Contact Now

Detailed Product Description

Brand:	FESTO	Model:	MFH-5-1/8-L-S-B
Order No:	30992	Valve Function:	5/2-way, Monostable
Type Of Actuation:	Electric	Product Weight:	280 G
Highlight:	30992 Pneumatic Solenoid Valves , Electric Pneumatic Solenoid Valves , Monostable Electric Air Valve

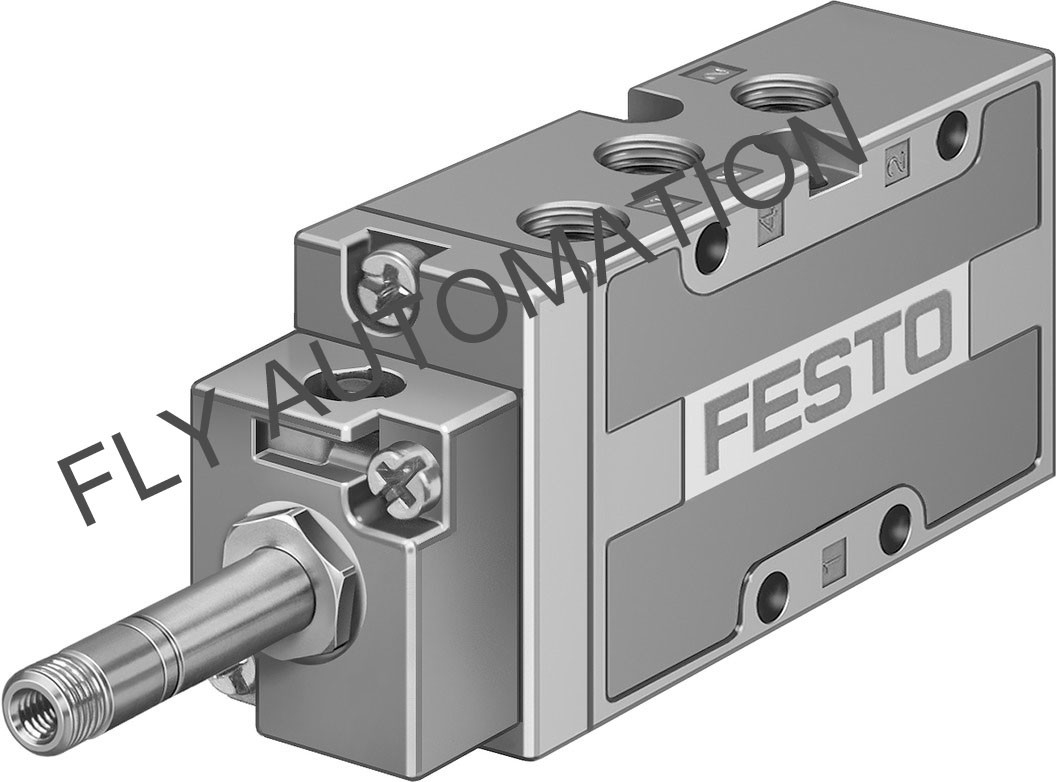

FESTO Solenoid valve MFH-5-1/8-L-S-B 30992 GTIN4052568114275 Pneumatic Solenoid Valves

Name: 30992 GTIN4052568114275 Pneumatic Solenoid Valves MFH-5-1/8-L-S-B
Brand: FLY AUTOMATION
SKU: MFH-5-1/8-L-S-B
Price: 110.00 USD
Availability: InStock

About product

1.A complete and comprehensive range with 5/2-way.

2.Poppet valve for monostable functions or piston spool for more complex versions with air spring.

3.With flow-optimised internal functions for higher flow rates with the same width.

Technical Data

Valve function	5/2-way, monostable
Type of actuation	Electric
Construction width	26 mm
Standard nominal flow rate	1000 l/min
pneumatic working port	G1/8
Design	Piston gate valve
Type of reset	Pneumatic spring
Nominal size	8 mm
Sealing principle	Soft
Mounting position	optional
Manual override	Non-detenting
Type of piloting	Pilot actuated
Pilot air supply	External
Flow direction	Reversible

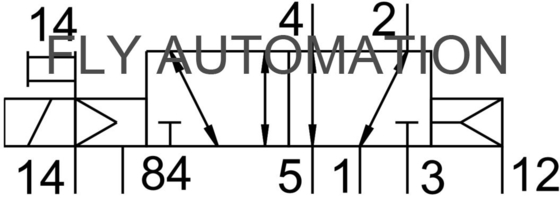

Symbol	00991026
lap	Positive overlap
Max. switching frequency	3 Hz
Switching time off	22 ms
Switching time on	27 ms
Corrosion resistance class CRC	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Product weight	280 g
Electrical connection	Via F coil, to be ordered separately
Type of mounting	On PR rail With through-hole Either:
Pilot exhaust port 84	M5
Pilot air port 12	G1/8
Pilot air port 14	G1/8
Pneumatic connection, port 1	G1/8
Pneumatic connection, port 2	G1/8
Pneumatic connection, port 3	G1/8
Pneumatic connection, port 4	G1/8
Pneumatic connection, port 5	G1/8
Note on materials	RoHS-compliant
Material seals	NBR
Material housing	Die-cast aluminium

Another Size as below,

Type	Order no	Price
MFH-5-1/8-B	19758	USD 40-60
MFH-5-1/4-B	15901	USD 40-60
MFH-5-3/8-B	19705	USD 40-60
MFH-5-3/8-S-B	19706	USD100-120
MFH-5-1/8-S-B	19759	USD100-120
MFH-5-1/4-S-B	15902	USD100-120
MFH-5-1/8-L-S-B	30992	USD100-120
MFH-5-1/4-L-S-B	33185	USD100-120
MFH-5-3/8-L-S-B	33181	USD100-120
MFH-5-1/8-L-B	30991	USD100-120
MFH-5-1/4-L-B	31010	USD100-120
MFH-5-3/8-L-B	14946	USD100-120
