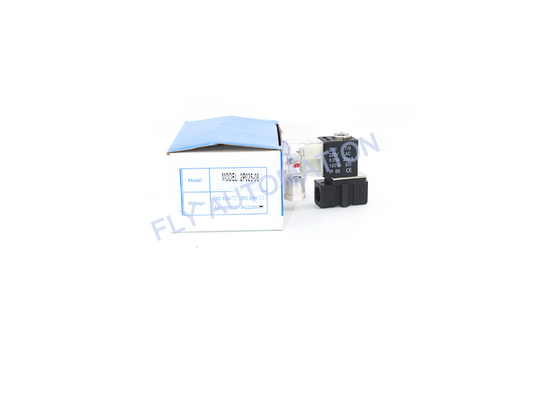

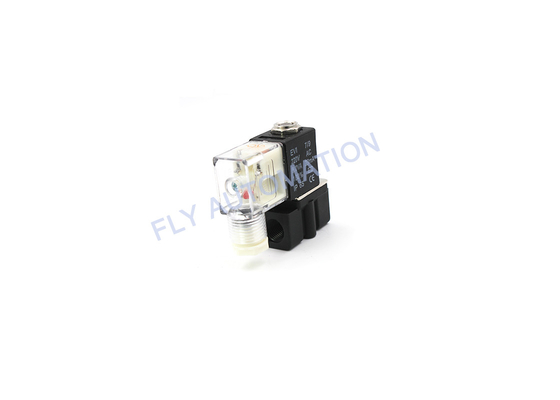

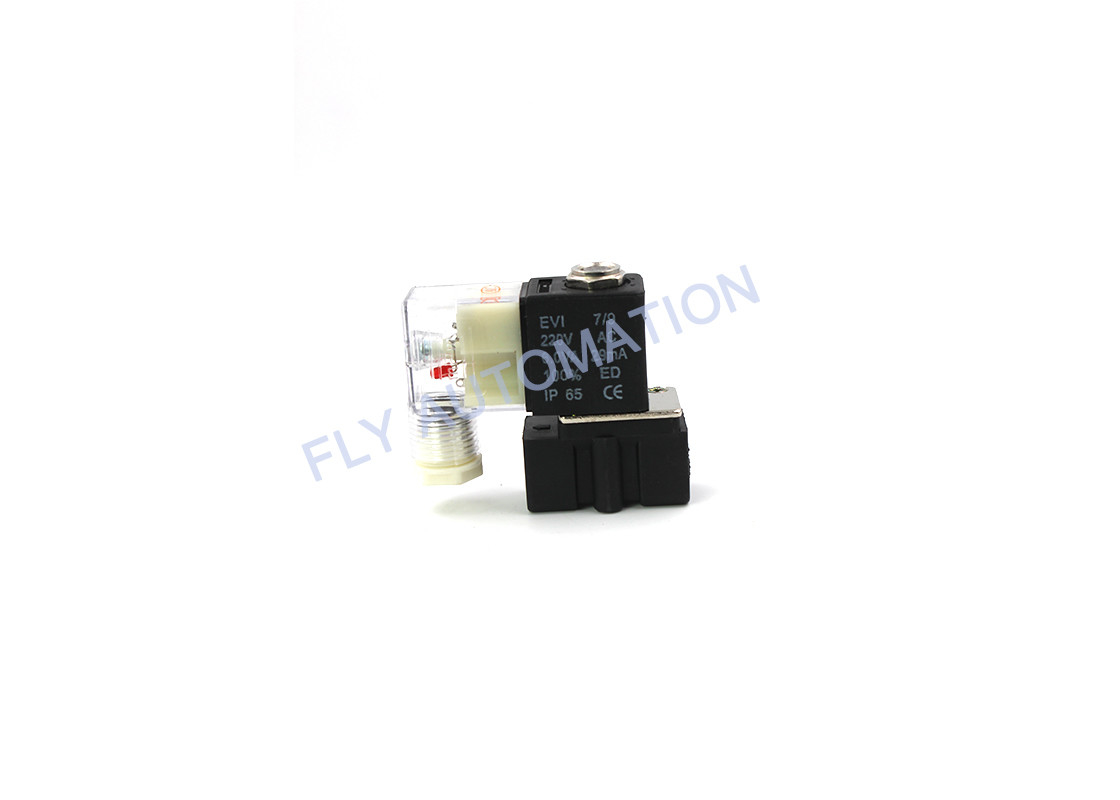

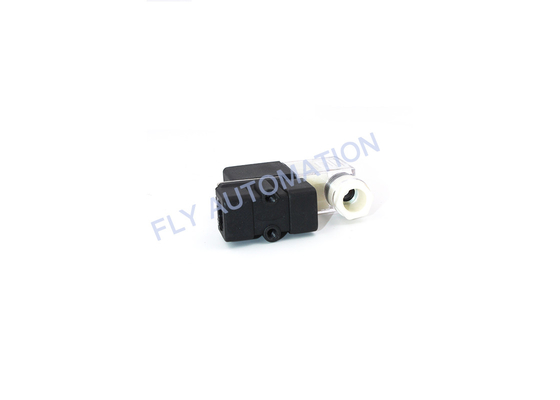

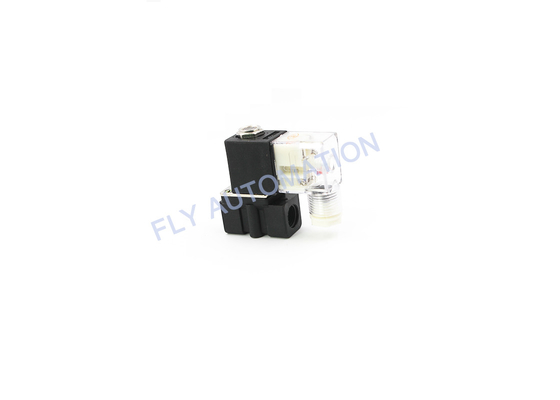

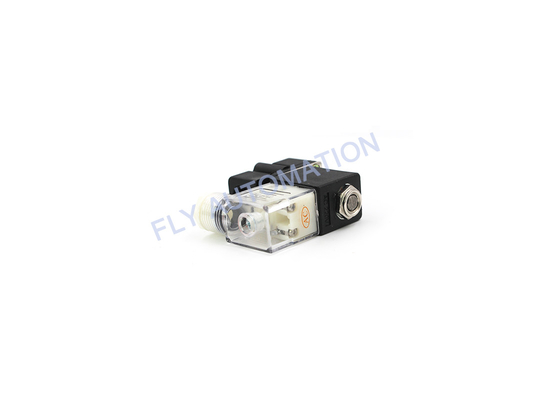

2P025-08NBR 1/4" NPT Electric Plastic Valve 2 Way Pneumatic Small Water Solenoid Valve
Please note that we are selling factory direct products. All our products are 100% brand new in manufacturer's packaging.
1/4'' 2 Position Two Way Plastic Solenoid Valve 2P025-08 with 1/4'' Male Push Connector Fittings
Leave the message about the VOLTAGE u need when place the order.
DC12V,DC24V,AC24V,AC110V or AC220V
Code Option
Thread Option: G and NPT
Standard Voltage Option: DC12V,DC24V,AC110V,AC220V
Material Option: Plastic,Brass
Oil Seal Option:NBR,VITON
2 way Pneumatic Plastic solenoid valve
2P025-06 Port 1/8" NPT NBR
2P025-08 Port 1/4" NPT NBR
mini electric control gas oil valve with wire type
Description:
| Model |
2P025-06 |
2P025-08 |
| Working Medium |
Air, Water, Oil, Gas |
| Motion Pattern |
Direct Drive Type |
| Type |
Normal Close Type |
| Aperture Flow Rate |
2.5mm |
| CV Value |
0.23 |
| Port Size |
G1/8''(NPT) |
G1/4''(NPT) |
| Operation Fluid Viscosity |
20CST(Below) |
| Working Pressure |
0~0.7Mpa |
| Max. Pressure Resistance |
1.0Mpa |
| Operation Temp Range |
-5~+80'C |
| Voltage Range |
10%up and down |
| Material of Body |
Engineering Plastic |
| Material of Oil Seal |
NBR or VITON |
- Two position, two way, normal close switch, magnetic solenoid water valve.
- Can be installed at any angle, but it is a good choice when the horizontal tube keep upward.
- Used to control automatically the liquid and gas in the pipeline.
