Place of Origin: | China |
Brand Name: | FESTO |

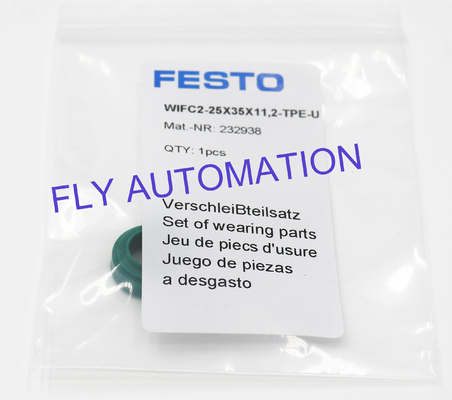

Model Number: | FESTO,WIFC2-25X35X11,2-TPE-U,232938,EU25 |
Minimum Order Quantity: | 1pc |
---|---|
Price: | EXW USD10-USD15 |
Packaging Details: | plastic bag, carton,OPP bag |
Delivery Time: | 3-5 working days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 1500pcs per week |
Material: | Polyurethane With Shore A Hardness Of 93 | Working Pressure: | ≤16Bar |
---|---|---|---|
Working Temperature: | -35-+80℃ | Color: | Green |
Specifications: | 25*35*11.2 | Order No: | 232938 |
High Light: | 2-TPE-U Cylinder Wiper Seal,232938 Wiper Ring Seal,Pneumatic Air Cylinder Pu Wiper Seal |

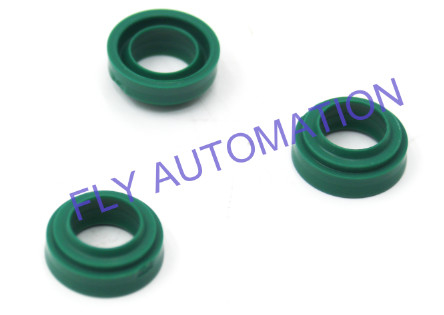

Material:Polyurethane ,green
Scope of application
Working pressure:≤16Bar
Working temperature:-35-+80℃
Surface velocity:≤1m/s
Medium:Oily lubricated air and dry air and oil-free air (after initial lubrication assembly).

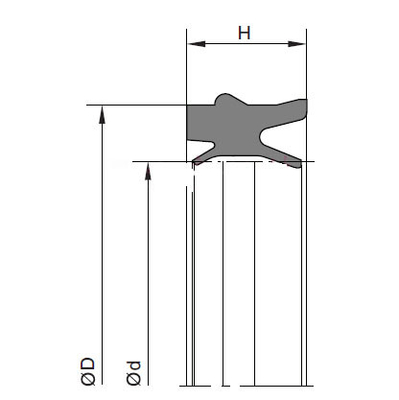

The section diagram after installation is as follows:
This seal is a trinity pneumatic piston rod seal ring of circlip+dust prevention+rod seal, which is easy to install. Heidelberg SM74 available.
232938 can be used with NIPSL25 * 35 * 7/9.5 (rubber material with frame, used with circlip).
Installation steps:
1.Please align the side with words in the groove with the inside of the cylinder, and do not install it reversely.
2.Push the sealing ring into the cylinder head. An audible click indicates that it has entered the installation position.
3.Apply a proper amount of grease on the inner diameter of the seal ring to improve the service life of the seal ring.
4.Wrap a proper d the piston rod thread to avoid scratching the seals when the piston rod is inserted.
5.Insert the piston rod and fix the cyliamount of adhesive tape arounnder head.
Be attention:Careful installation and initial lubrication are important means to ensure the service life of seals.
We will check the goods quality before shipment.
Before you endorse the parcel, please do open the package, and check out whether the items are damaged during the shipping process.
Any order is welcome; we will give discounts and combined shipping costs for you if you order more or mix order. If you have any questions,
please feel free to contact us.
I will waiting for you!
