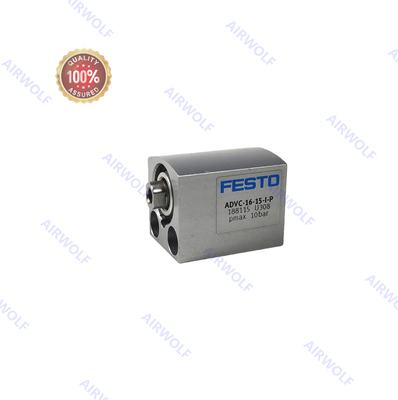

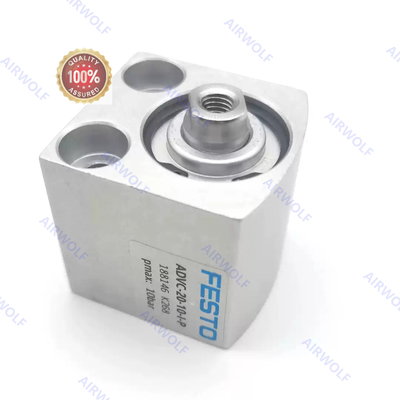

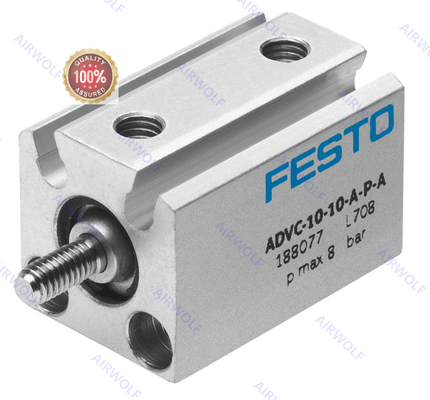

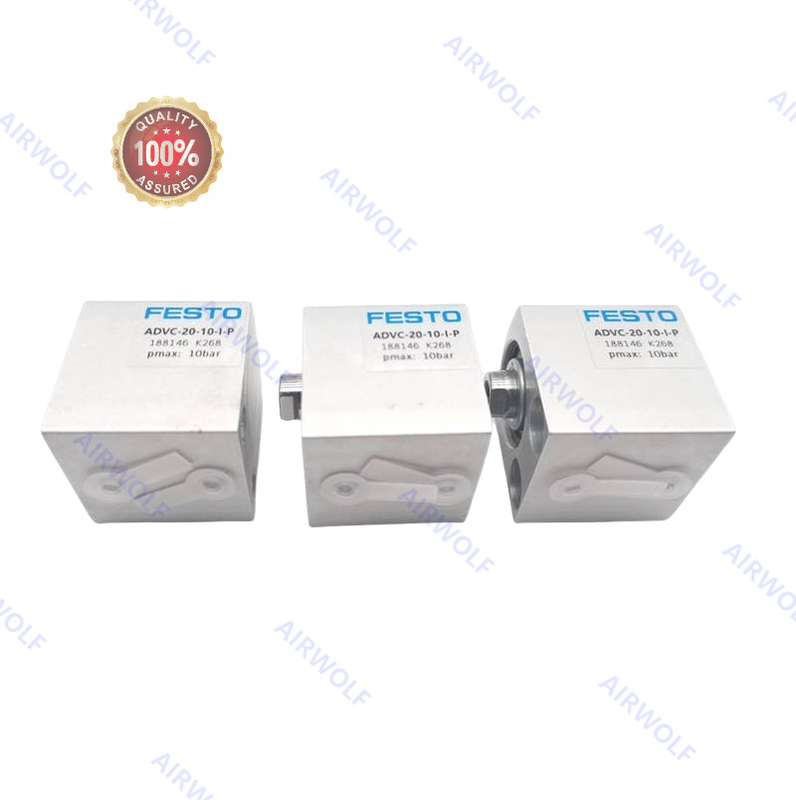

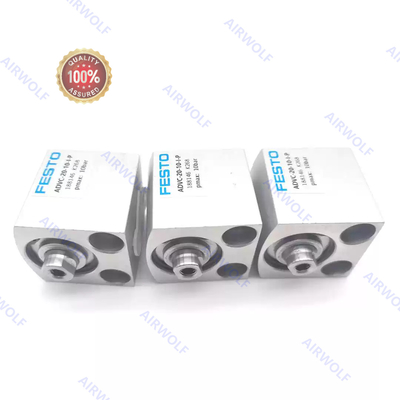

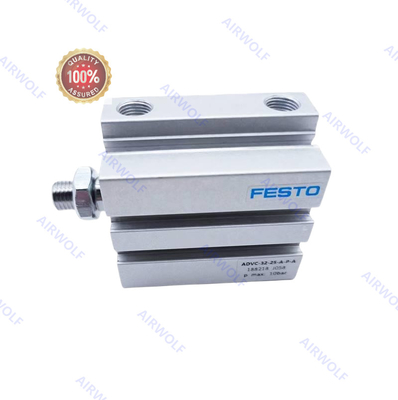

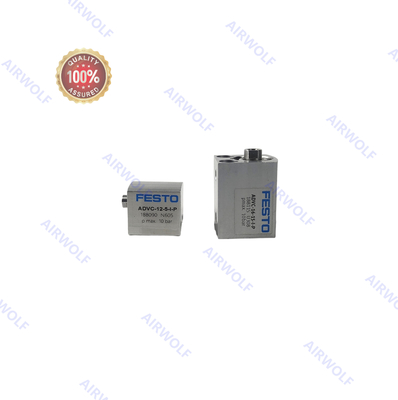

Name: FETSO VDMA24562 Short Stroke 2.5–25 Mm 526897 ADVC-4-2.5-P 188117 ADVC-16-25-I-P
Brand: FLY AUTOMATION
SKU: 188079 ADVC-10-10-A-P 188221 ADVC-32-15-A-P 188267 ADVC-50-25-I-P 188094 ADVC-12-5-A-P 188222 ADVC-32-20-A-P 188288 ADVC-63-10-I-P
Price: 34.00 USD
Availability: InStock

Home Products Pneumatic Air Cylinders

FETSO VDMA24562 Short Stroke 2.5–25 Mm 526897 ADVC-4-2.5-P 188117 ADVC-16-25-I-P

Product Details:

Place of Origin:	CHINA GERMANY
Brand Name:	FESTO or OEM
Model Number:	188079 ADVC-10-10-A-P 188221 ADVC-32-15-A-P 188267 ADVC-50-25-I-P 188094 ADVC-12-5-A-P 188222 ADVC-32-20-A-P 188288 ADVC-63-10-I-P

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	EXW USD5-63
Packaging Details:	plastic bag, carton，OPP bag
Delivery Time:	1-10 working days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	1200 pcs per month

Contact Now

Detailed Product Description

Cylinder Barrel:	Anodized Wrought Aluminum Alloy	Design:	Piston Piston Rod
Working Pressure:	0-10Bar	Operating Medium:	Compressed Air To ISO 8573-1:2010 [7:4:4]
Note On Operating And Pilot Medium:	Lubricated Operation Possible (in Which Case Lubricated Operation Will Always Be Required)	Ambient Temperature:	-20°C-80°C
Piston Material:	High-alloy Steel,and High-alloy Stainless Steel	Seals:	Polyurethane, Nitrile Rubber And Fluoro Rubber
Bearing And End Cap:	Wrought Aluminium Aloy	Pneumatic Connection:	M3, M5, Or G1/8/G1/4 Threads (varies By Piston Size)
Highlight:	FETSO VDMA24562 , FETSO ADVC-16-25-I-P , FETSO ADVC-4-2.5-P

FETSO VDMA 24562 Short-stroke 2.5–25 mm 526897 ADVC-4-2.5-P 188117 ADVC-16-25-I-P

Order Codes:

526897 ADVC-4-2.5-P	188117 ADVC-16-25-I-P	188209 ADVC-32-5-I-P
526898 ADVC-4-5-P	188145 ADVC-20-5-I-P	188210 ADVC-32-10-I-P
526899 ADVC-6-5-P	188146 ADVC-20-10-I-P	188211 ADVC-32-15-I-P
526900 ADVC-6-10-P	188147 ADVC-20-15-I-P	188212 ADVC-32-20-I-P
526903 ADVC-10-5-P	188148 ADVC-20-20-I-P	188213 ADVC-32-25-I-P
526904 ADVC-10-10-P	188149 ADVC-20-25-I-P	188237 ADVC-40-5-I-P
530568 ADVC-12-5-P	188177 ADVC-25-5-I-P	188238 ADVC-40-10-I-P
530569 ADVC-12-10-P	188178 ADVC-25-10-I-P	188239 ADVC-40-15-I-P
188054 ADVC-4-2.5-A-P	188179 ADVC-25-15-I-P	188240 ADVC-40-20-I-P
188055 ADVC-4-5-A-P	188180 ADVC-25-20-I-P	188241 ADVC-40-25-I-P
188066 ADVC-6-5-A-P	188181 ADVC-25-25-I-P	188264 ADVC-50-10-I-P
188067 ADVC-6-10-A-P	188219 ADVC-32-5-A-P	188265 ADVC-50-15-I-P
188078 ADVC-10-5-A-P	188220 ADVC-32-10-A-P	188266 ADVC-50-20-I-P
188079 ADVC-10-10-A-P	188221 ADVC-32-15-A-P	188267 ADVC-50-25-I-P
188094 ADVC-12-5-A-P	188222 ADVC-32-20-A-P	188288 ADVC-63-10-I-P
188095 ADVC-12-10-A-P	188223 ADVC-32-25-A-P	188289 ADVC-63-15-I-P
188123 ADVC-16-5-A-P	188247 ADVC-40-5-A-P	188290 ADVC-63-20-I-P
188124 ADVC-16-10-A-P	188248 ADVC-40-10-A-P	188291 ADVC-63-25-I-P
188125 ADVC-16-15-A-P	188249 ADVC-40-15-A-P	188312 ADVC-80-10-I-P
188126 ADVC-16-20-A-P	188250 ADVC-40-20-A-P	188313 ADVC-80-15-I-P
188127 ADVC-16-25-A-P	188251 ADVC-40-25-A-P	188314 ADVC-80-20-I-P
188155 ADVC-20-5-A-P	188272 ADVC-50-10-A-P	188315 ADVC-80-25-I-P
188156 ADVC-20-10-A-P	188273 ADVC-50-15-A-P	188336 ADVC-100-10-I-P
188157 ADVC-20-15-A-P	188274 ADVC-50-20-A-P	188337 ADVC-100-15-I-P
188158 ADVC-20-20-A-P	188275 ADVC-50-25-A-P	188338 ADVC-100-20-I-P
188159 ADVC-20-25-A-P	188296 ADVC-63-10-A-P	188339 ADVC-100-25-I-P
188187 ADVC-25-5-A-P	188297 ADVC-63-15-A-P
188188 ADVC-25-10-A-P	188298 ADVC-63-20-A-P
188189 ADVC-25-15-A-P	188299 ADVC-63-25-A-P
188190 ADVC-25-20-A-P	188320 ADVC-80-10-A-P
188191 ADVC-25-25-A-P	188321 ADVC-80-15-A-P
188090 ADVC-12-5-I-P	188322 ADVC-80-20-A-P
188091 ADVC-12-10-I-P	188323 ADVC-80-25-A-P
188113 ADVC-16-5-I-P	188344 ADVC-100-10-A-P
188114 ADVC-16-10-I-P	188345 ADVC-100-15-A-P
188115 ADVC-16-15-I-P	188346 ADVC-100-20-A-P
188116 ADVC-16-20-I-P	188347 ADVC-100-25-A-P

HOW TO ORDER:

FETSO VDMA24562 Short Stroke 2.5–25 Mm 526897 ADVC-4-2.5-P 188117 ADVC-16-25-I-P

Attribute	Details
Components	Cylinder barrel, cover, piston rod, rod seal, cushioning rings, proximity switch slots
Material	- Barrel/Cover: Anodized aluminium
	- Piston Rod: Aluminium (ADVC-4) / High-alloy steel (ADVC-6 to 100)
	- Rod Seal: Nitrile rubber (ADVC-4) / Polyurethane (ADVC-6 to 100)
Structure	Double-acting design with elastic cushioning at both ends; compact, space-saving construction
Operating Pressure	0.06–1 MPa (0.6–10 bar, 8.7–145 psi) depending on piston diameter
Temperature Range	-20°C to +80°C (ambient; consider proximity switch limits)
Standards Compliance	B14 (mounting hole pattern)
	- VDMA 24364-B1/B2-L (LABS/PWIS conformity)
	- RoHS-compliant
Color	Natural anodized aluminum finish (metallic)
Weight	3–2400 g (varies by piston diameter and stroke length; see product tables)
Dimensions	- Diameter: 4–100 mm
Dimensions	Stroke Length: 2.5–25 mm
Impact Energy	0.003–1.20 J (adjustable via elastic cushioning)
Mounting Options	Through-hole mounting; VDMA 24562 hole pattern for diameters ≥32 mm
Position Sensing	Integrated slots for contacting or contactless proximity switches
Pneumatic Connection	M3, M5, or G1/8/G1/4 threads (varies by piston size)
Operating Medium	Compressed air (ISO 8573-1:2010 [7:4:4]); optional lubrication

Datasheet:

FETSO VDMA24562 Short Stroke 2.5–25 Mm 526897 ADVC-4-2.5-P 188117 ADVC-16-25-I-P

Dimension:

FETSO VDMA24562 Short Stroke 2.5–25 Mm 526897 ADVC-4-2.5-P 188117 ADVC-16-25-I-P

Materials:

FETSO VDMA24562 Short Stroke 2.5–25 Mm 526897 ADVC-4-2.5-P 188117 ADVC-16-25-I-P

Weight:

FETSO VDMA24562 Short Stroke 2.5–25 Mm 526897 ADVC-4-2.5-P 188117 ADVC-16-25-I-P
