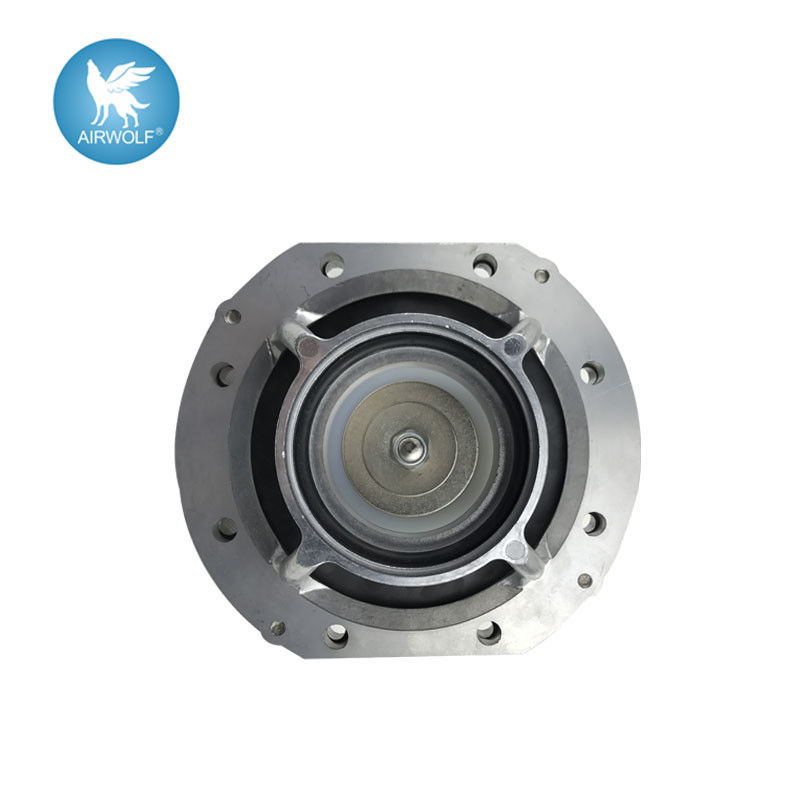

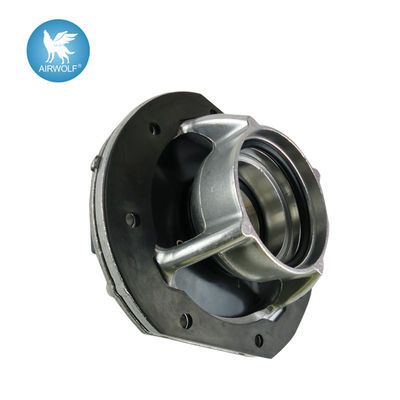

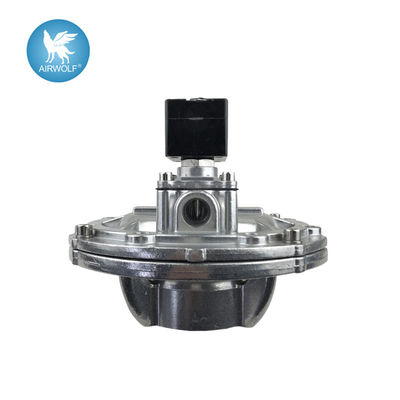

2.5 Inch SCXE353.060 Submerged Pulse Jet Valves







Ordering Code	A	B	C	D	E	F	G	H	J	K	L	Weight
SCG353A047	80	50	30	71	130	136	45	G 3/8"	131	160	178	1.40
SCG353A050	80	50	30	95	168	165	45	G 3/8"	165	210	227	2.90
SCG353A051	80	50	30	95	168	165	45	G 3/8"	165	210	227	2.60
SCG353.060	80	50	30	143	240	192	45	G 1/2"	165	258	275	4.10

SUITABLE FOR
Dust collector applications, in particular for reverse pulse jet filter cleaning and its variations, including bag filters, cartridge filters and envelope filters, ceramic filters and sintered metal fibre filters.
High purity Aluminum Alloy casting body, the top of NBR diaphragm, make the diaphragm has high tensile strength, ageing resistance and low wear, the electromagnetic pulse valve injection is longer than that of 1 million or three to five years with no damage.
All high-quality imported finished diaphragm, diaphragm assembly in the manufacturing process all checks, qualified and then into the assembly line. Each finished valve is tested by ventilation.
Electromagnetic pulse valve coil is higher than the national standard grade insulation injection in the protection class is IP65 full filling, full copper enameled wire, coil number higher than the national standard, ensure the electromagnetic pulse valve 6 million is energized is not damaged, the electromagnetic coil can rotate 360 DEG in the pulse valve, the junction box can rotate 90 degrees to 4 x can be installed to prevent exposure in the open when rain enters, greatly facilitate the installation of different angles.
