| Place of Origin: | CHINA |
| Brand Name: | RECTUS |
| Certification: | CE |
| Model Number: | 22SF TF10 MXX |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement |
| Delivery Time: | within 1-10 working days after payment |
| Payment Terms: | T/T , Western Union, PayPal |
| Supply Ability: | 1000 pcs /day |
| Model: | 22SF TF10 MXX | Port Size: | 10mm |
|---|---|---|---|
| Color: | Yellow | Material: | Brass |
| Highlight: | flexible tube fittings,pneumatic fittings and tubing |
||

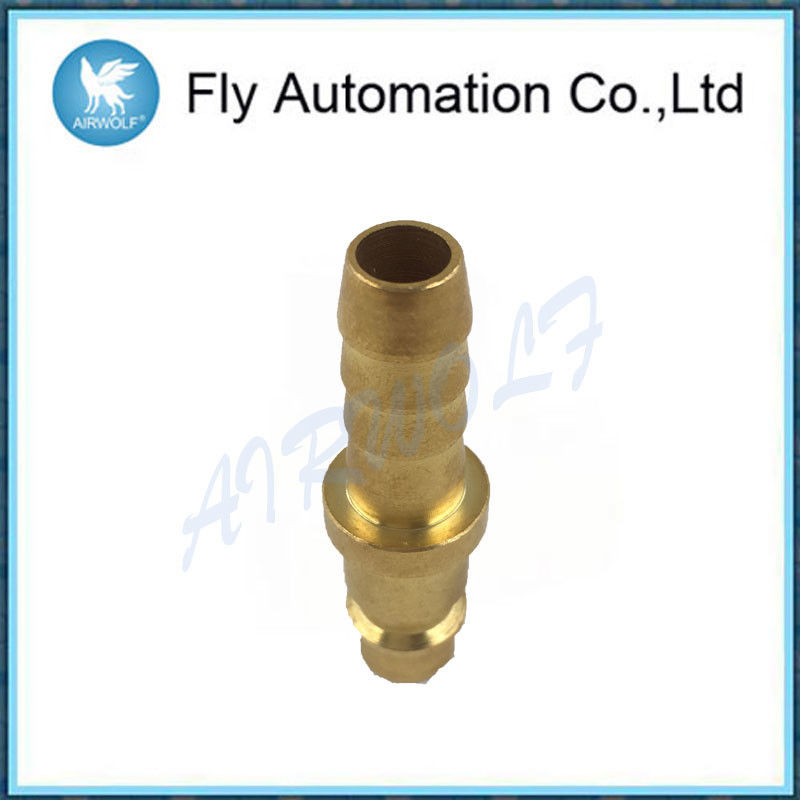

Copper Hose Barb Thread 22SF TF08 MXX 6mm Connection 22SF Series RECTUS Plugs collar nut
Working Temperature*
-20°C up to +100°C (NBR)
-40°C up to +120/150°C (EPDM)
-15°C up to +200°C (FKM)
depending on the medium.
Advantages
Single handed operation.
Plug design optimised.
through greater insert depth.
Working Pressure
PB = 35 bar, maximum
static working pressure
with safety factor of 4 to 1.
| 22SF | 22SF TF08 MXX | 8mm | Plug |
| 22SF TF10 MXX | 10mm | Plug |
| Connection A | Hex SW |
L mm |
L1 mm |
Version | Part Number |
| 6mm | - | 49 | 12 | Brass | 22SF TF06 MXX |
| 10mm | - | 49 | 12 | Brass | 22SF TF08 MXX |
| 13mm | - | 49 | 15 | Brass |
22SF TF10 MXX |
Packing
Plastic bags, boxes, cartons, and pallets. Meantime, we can pack the goods according to customers' special requirements.
