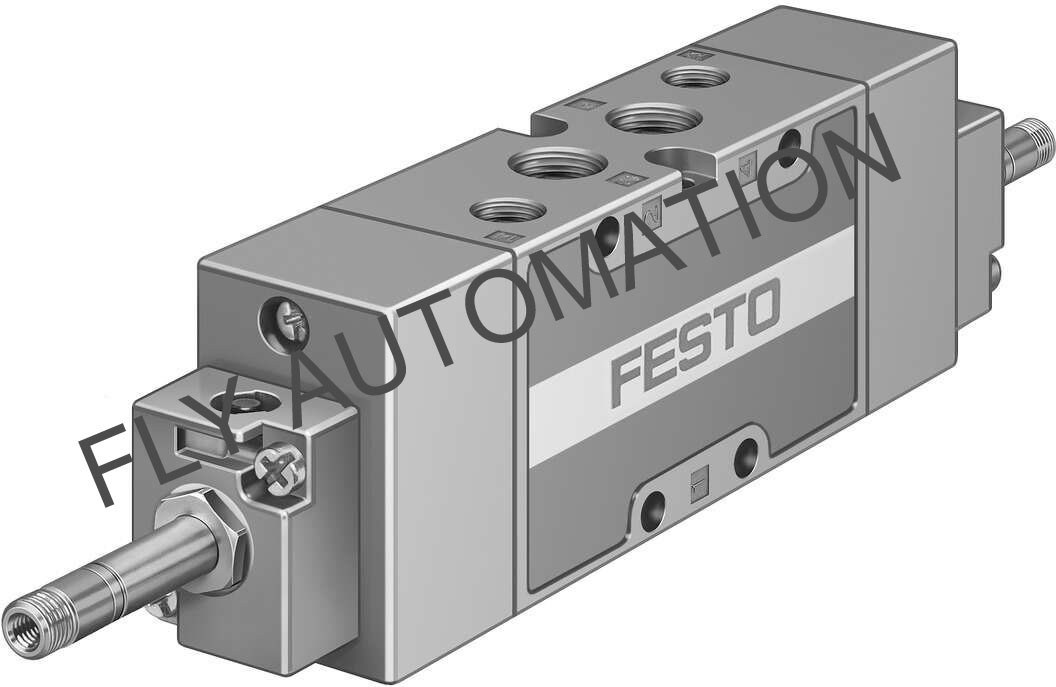

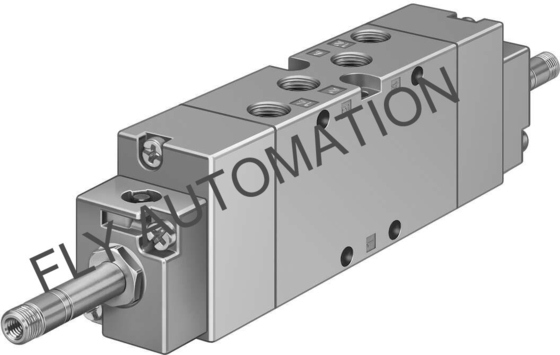

19789 5/2 Double Solenoid Pneumatic Solenoid Valves FESTO JMFH-5-1/4-B

Product Details:

Place of Origin:	China
Brand Name:	FESTO
Model Number:	JMFH-5-1/4-B

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	EXW USD100-120
Packaging Details:	Plastic bag, Carton
Delivery Time:	7-10 working days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	100 pcs per month

Contact Now

Detailed Product Description

Order No:	19789	Model:	JMFH-5-1/4-B
Brand:	FESTO	Pneumatic Working Port:	G1/4
Valve Function:	5/2 Double Solenoid	Weight:	460 G
High Light:	5/2 Double Solenoid Electric Air Valve , 19789 5/2 Double Solenoid Pneumatic Solenoid Valves , NBR Seals Pneumatic Solenoid Valves

FESTO Solenoid valve JMFH-5-1/4-B 19789 GTIN4052568009489 Pneumatic Solenoid Valves

Name: 19789 5/2 Double Solenoid Pneumatic Solenoid Valves FESTO JMFH-5-1/4-B
Brand: FESTO
SKU: JMFH-5-1/4-B
Price: 100 USD
Availability: InStock
Rating: 4.7 (132 reviews)

About product

1.Principle with armature tube.

2.Sturdy and reliable.

3.Wide range of voltages .

4.Pneumatic or electrical actuation with F solenoid coil.

Technical Data

Valve function	5/2 double solenoid
Type of actuation	Electric
Construction width	32 mm
Standard nominal flow rate	1600 l/min
pneumatic working port	G1/4
Design	Piston gate valve
Nominal size	10 mm
Grid dimension	33 mm
Exhaust-air function	With flow control option
Sealing principle	Soft
Mounting position	optional
Manual override	Non-detenting
Type of piloting	Pilot actuated
Pilot air supply	Internal
Flow direction	Non-reversible
Symbol	00991013
lap	Positive overlap
b value	0.38
C value	6.35 l/sbar
Max. switching frequency	3 Hz
Switching time reversal	14 ms
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Corrosion resistance class CRC	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Storage temperature	-40°C-60°C
Media temperature	-10°C-60°C
Ambient temperature	-5°C-40°C
Product weight	460 g
Electrical connection	Via F coil, to be ordered separately
Type of mounting	Either: On PR rail With through-hole
Pilot exhaust port 82	M5
Pilot exhaust port 84	M5
Pneumatic connection, port 1	G1/4
Pneumatic connection, port 2	G1/4
Pneumatic connection, port 3	G1/4
Pneumatic connection, port 4	G1/4
Pneumatic connection, port 5	G1/4
Note on materials	RoHS-compliant
Material seals	NBR
Material housing	Die-cast aluminium

Other size as follow

Type	Order no	Price
JMFH-5-1/8-B	30486	USD100-120
JMFH-5-1/8-B-EX	535930	USD100-120
MFH-5-1/4-B	19789	USD100-120
MFH-5-1/4-B-EX	535931	USD100-120
MFH-5-3/8-B	19700	USD100-120
JMFH-5-3/8-B-EX	535932	USD100-120
JMFH-5-1/8-S-B	30487	USD100-120
JMFH-5-1/8-S-B-EX	535933	USD100-120
JMFH-5-1/4-S-B	19790	USD100-120
JMFH-5-1/4-S-B-EX	535934	USD100-120
JMFH-5-3/8-S-B	19702	USD100-120
JMFH-5-3/8-S-B-EX	535935	USD100-120
