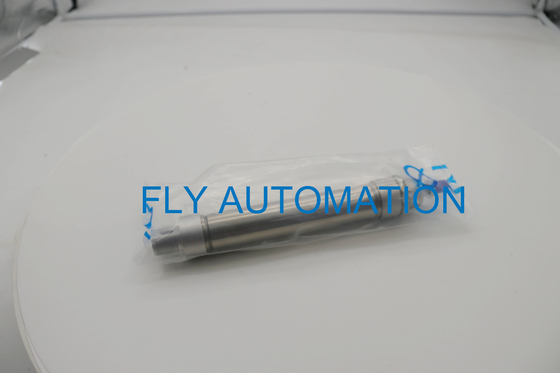

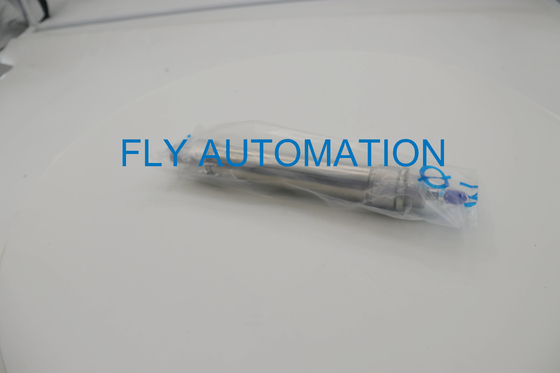

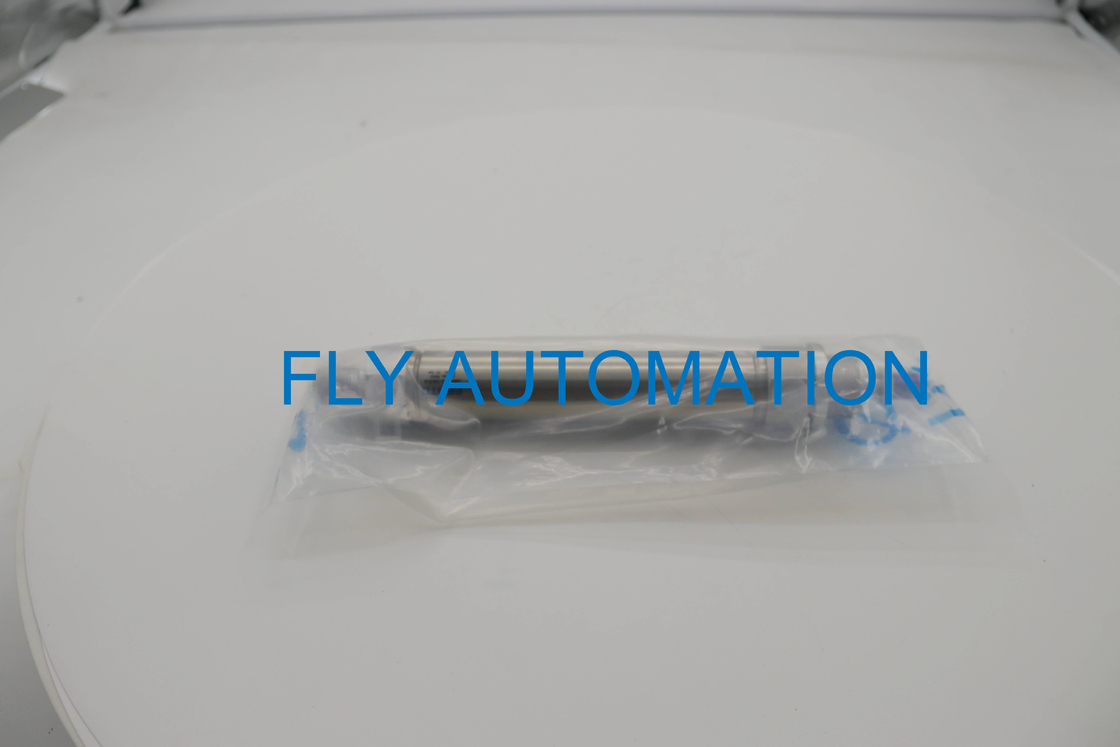

193992 Pneumatic Air Cylinders DSNU-32-150-P-A FESTO Round Cylinder

193992 Pneumatic Air Cylinders DSNU-32-150-P-A FESTO Round Cylinder

  • 193992 Pneumatic Air Cylinders DSNU-32-150-P-A FESTO Round Cylinder
  • 193992 Pneumatic Air Cylinders DSNU-32-150-P-A FESTO Round Cylinder
  • 193992 Pneumatic Air Cylinders DSNU-32-150-P-A FESTO Round Cylinder
193992 Pneumatic Air Cylinders DSNU-32-150-P-A FESTO Round Cylinder
Product Details:
Brand Name: FESTO
Model Number: DSNU-32-150-P-A
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 30-50
Packaging Details: Plastic bags,Boxes, Cartons
Delivery Time: 7-10 working days
Payment Terms: T/T , Western Union
Supply Ability: 1000 pcs
Contact Now
Detailed Product Description
Model Code: DSNU-32-150-P-A Part No: 193992
Pneumatic Connection: G1/8 Material Cover: Wrought Aluminium Alloy
Ambient Temperature: -20°C-120°C Brand: FESTO
Highlight:

193992 Pneumatic Air Cylinders

,

G1/8 Round Pneumatic Air Cylinders

,

Wrought Aluminium Alloy Festo Round Cylinder

FESTO Round cylinder DSNU-32-150-P-A 193992 Pneumatic Air Cylinders



About Product

Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes

Wide range of variants for customised applications



Technical data

Stroke 150mm
Piston diameter 32mm
Mounting position optional
Design Piston Piston rod Cylinder barrel
Position detection Via proximity switch
Protection against torque/guide Square piston rod
Mode of operation Double-acting
Ambient temperature -20°C-120°C
Cushioning length 14 mm
Basic weight for 0 mm stroke 370.5 g
Additional weight per 10 mm stroke 15.5 g
Pneumatic connection G1/8
Note on materials RoHS-compliant
Material cover Wrought aluminium alloy
Material seals NBR TPE-U(PU)
Material piston rod High-alloy stainless steel



There are so many models,please contact with me.



Operating and environmental conditions

193992 Pneumatic Air Cylinders DSNU-32-150-P-A FESTO Round Cylinder
