| Brand Name: | FESTO |
| Model Number: | DSNU-25-300-PPV-A |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD20-30 |
| Packaging Details: | plastic bag, carton，OPP bag |
| Delivery Time: | 10-12 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1800 pcs per month |
| Brand: | FESTO | Type: | DSNU-25-300-PPV-A |
|---|---|---|---|
| Weight: | 568 G | Part No: | 19253 |
| Pneumatic Connection: | G1/8 | Material Seals: | NBR TPE-U(PU) |
| High Light: | Corrosion Resistant Pneumatic Air Cylinders,19253 Pneumatic Air Cylinders,DSNU-25-300-PPV-A |
||

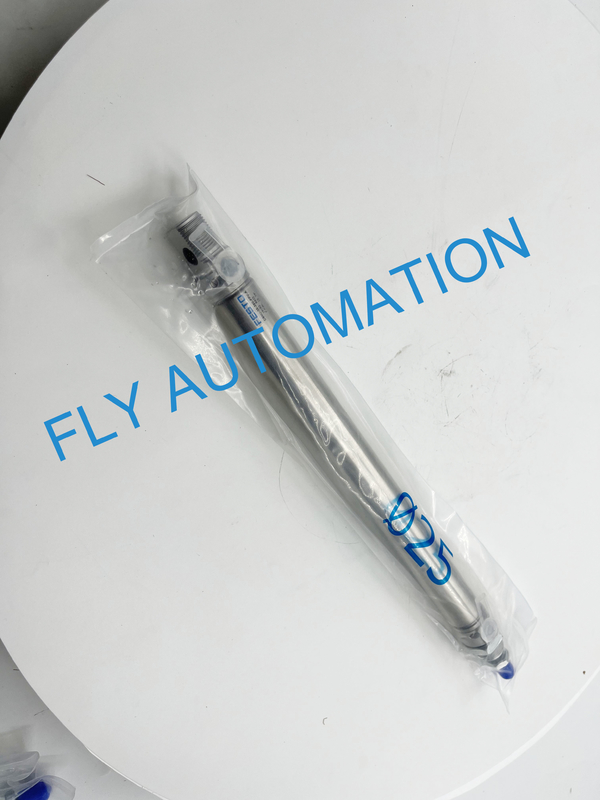

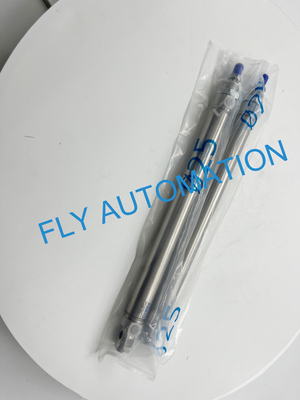

FESTO ISO cylinder DSNU-25-300-PPV-A 19253 Pneumatic Air Cylinders
About product
Technical Data
| Stroke | 300 mm |
| Piston diameter | 25 mm |
| Piston rod thread | M10x1.25 |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Conforms to standard | CETOP RP 52 P ISO 6432 |
| Piston-rod end | Male thread |
| Design | Piston Piston rod Cylinder barrel |
| Position detection | Via proximity switch |
| Symbol | 00991235 |
| Variants | Piston rod at one end |
| Mode of operation | Double-acting |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -20°C-80°C |
| Cushioning length | 17 mm |
| Basic weight for 0 mm stroke | 238 g |
| Additional weight per 10 mm stroke | 11 g |
| Type of mounting | With accessories |
| Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant |
| Material cover | Wrought aluminium alloy Colourless anodised |
| Material seals | NBR TPE-U(PU) |
| Material piston rod | High-alloy stainless steel |
| Material cylinder barrel | High-alloy stainless steel |
With the Festo Core Range, we have selected the most important products and functions from our broad product catalogue, and added the quickest delivery.
There are so many models,please contact with me.
Contact Person: Jaren
Tel: 0086-15257858856
Fax: 86-152-57858856
