| Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
 |
| Place of Origin: | China |
| Brand Name: | FESTO |
| Model Number: | QSL-1/2-10 |
| Minimum Order Quantity: | 10 PCS |
|---|---|
| Price: | EXW USD2-5 |
| Packaging Details: | plastic bag, carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 5500 pcs per month |
| Nominal Size: | 8.3 Mm | Order No: | 190661 |
|---|---|---|---|
| Brand: | FESTO | GTIN: | 4052568042936 |
| Specifications: | QSL-1/2-10 | Weight: | 57 G |
| High Light: | Pneumatic Push In L Fitting,QSL-1/2-10 Pneumatic Tube Fittings,190661 Push In L Fitting |
||
Nominal size:8.3 mm
Order no:190661
Brand:FESTO
GTIN:4052568042936
Specifications:QSL-1/2-10
Weight:57g
Product Technical Data
| Feature | Value |
| Size | Standard |
| Nominal size | 8.3mm |
| Mounting position | optional |
| Size of pack | 1 |
| Design | Push-pull principle |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| Product weight | 57g |
| Pneumatic connection, port 1 | Male thread R1/2 |
| Pneumatic connection, port 2 | For tubing outside diameter of 10 mm |
| Colour of release ring | Blue |
| Material housing | PBT |
| Material release ring | POM |
| Material tubing seal | NBR |
| Material tubing clamp component | High-alloy stainless steel |
| Note on materials |
RoHS-compliant |
Specifications Below
| Specifications | Order NO | GTIN | Nominal size(mm) | Weight(g) | EXW Price | Size of pack |
| QSL-1/8-4 | 153045 | 4052568031459 | 2.8 | 10 | USD2-5 | 10 |
| QSL-1/8-6 | 153046 | 4052568011048 | 4.2 | 11 | USD2-5 | 10 |
| QSL-1/8-8 | 153048 | 4052568011062 | 6 | 14 | USD2-5 | 10 |
| QSL-1/8-10 | 190658 | 4052568042912 | 6 | 18 | USD2-5 | 10 |
| QSL-1/4-4 | 190659 | 4052568014865 | 2.8 | 18 | USD2-5 | 10 |
| QSL-1/4-6 | 153047 | 4052568011055 | 4.3 | 19 | USD2-5 | 10 |
| QSL-1/4-8 | 153049 | 4052568011079 | 6.7 | 20 | USD2-5 | 10 |
| QSL-1/4-10 | 153051 | 4052568031473 | 8 | 23 | USD2-5 | 10 |
| QSL-1/4-12 | 164981 | 4052568012977 | 8 | 27 | USD2-5 | 10 |
| QSL-3/8-6 | 190660 | 4052568042929 | 4.3 | 30 | USD2-5 | 10 |
| QSL-3/8-8 | 153050 | 4052568031466 | 6.7 | 31 | USD2-5 | 10 |
| QSL-3/8-10 | 153052 | 4052568031480 | 8.3 | 34 | USD2-5 | 10 |
| QSL-3/8-12 | 153053 | 4052568031497 | 10 | 38 | USD2-5 | 10 |
| QSL-1/2-10 | 190661 | 4052568042936 | 8.3 | 57 | USD2-5 | 1 |
| QSL-1/2-12 | 153054 | 4052568031503 | 10.3 | 61 | USD2-5 | 1 |
| QSL-1/2-16 | 153055 | 4052568011086 | 13 | 79 | USD2-5 | 1 |

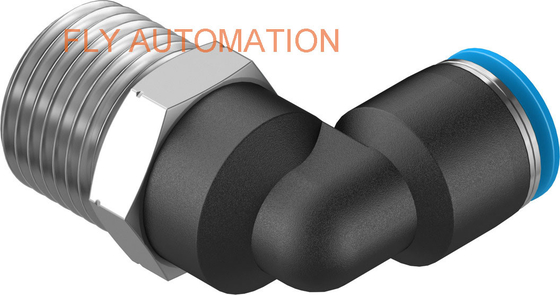

Push-in L-fitting QSL
Male thread with external hex,rotatable
Advantage
1.Simple installation.
2.Various specifications.
3.Good sealing performance.
4.Wide range of applications.
5.Quality assurance.
Attention
1,Before you endorse the parcel, please do open the package, and check out whether the items are damaged during the shipping process.
If so, please do refuse to sign for the parcel, the courier will send back the package to our company. Otherwise we are not responsible for this...
2,Any order is welcome; we will give discounts and combined shipping costs for you if you order more or mix order. If you have any questions,
please feel free to contact us.
Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.
There are many specifications of connectors, price and delivery time. Welcome to inquire.
